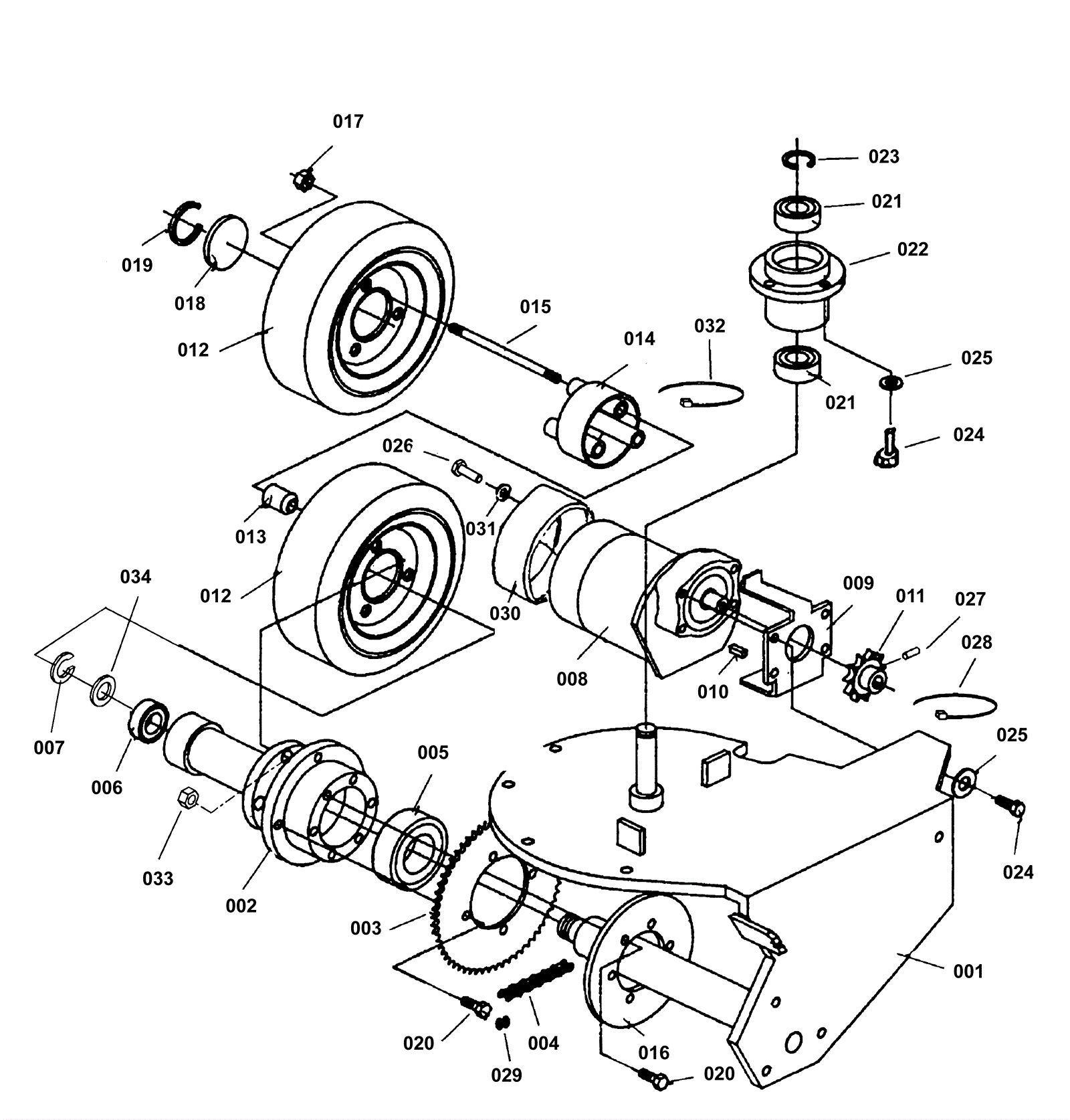

QUICK 32 Front Wheel Group

#PartDescriptionPriceReqNotesAvailability
001 173-3280 steering fork weldment (OBSOLETE) $641.01 1 usually ships 1-5 days
002 173-3281 drive hub $468.44 1 usually ships 1-5 days
003 173-3282 sprocket $172.70 1 usually ships 1-5 days
004 173-3283 #40 lambda chain $325.60 1 usually ships 1-5 days
005 173-3284 207PP sealed ball bearing $25.19 1 usually ships 1-5 days
006 173-3285 sealed ball bearing 24 PPG $77.70 1 usually ships 1-5 days
007 173-3286 3/4 inch extended snap ring $5.72 1 usually ships 7-19 days
008 173-3287 3/4 HP motor $3,135.00 1 usually ships 1-5 days
009 173-3288 motor plate $69.99 1 usually ships 1-5 days
010 173-1856 Square keyway $3.75 1 usually ships 7-19 days
011 173-3289 Sprocket $54.34 1 usually ships 1-5 days
012a 173-1780 Pneumatic knobby wheel (gray) $236.50 2 Includes tube usually ships 1-5 days
012b 173-1782 12 inch tire tube $44.33 usually ships 1-5 days
012c 173-1781 Pneumatic knobby wheel (black) $165.00 usually ships 1-5 days
012d 173-1782 12 inch tire tube $44.33 usually ships 1-5 days
012e 173-3290 12 inch solid wheel assembly (OBSOLETE) $920.65 usually ships 1-5 days
012f 173-3291 12 inch scrub compound press-on tire (OBSOLETE) $231.57 usually ships 1-5 days
012g 173-3309 solid tire rim (OBSOLETE) $482.86 usually ships 1-5 days
012i 173-3294 12 inch knobby foam filled wheel assembly (black) (OBSOLETE) $309.10 2 usually ships 7-19 days
013 173-3295 wheel sleeve $31.46 3 usually ships 1-5 days
014 173-3296 wheel spacer weldment (OBSOLETE) $107.07 1 usually ships 7-19 days
015 173-3297 front wheel stud $71.50 3 usually ships 1-5 days
016 173-3298 8 inch brake disc $102.85 1 usually ships 1-5 days
017 173-3990 Nut 7/16-20 wheel $5.50 3 usually ships 1-5 days
018 173-3299 hub cap plate $18.59 1 usually ships 1-5 days
019 173-3300 retaining ring $2.97 1 usually ships 1-5 days
020 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 10 ships same day
021 173-3301 Bearing $100.65 2 usually ships 1-5 days
022 173-3302 steering wheel painted hub (OBSOLETE) $215.37 1 usually ships 1-5 days
023 173-1062 1.0 extension snap hd ring $5.50 1 usually ships 1-5 days
024 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 7 ships same day
025 999-0033 Washer 7/16 SAE flat $0.99 7 ships same day
026 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
027 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
028 173-3169 Wire tie $1.03 1 usually ships 1-5 days
029 173-3303 Lambda m-link chain $25.08 1 usually ships 1-5 days
030 173-3304 Machined motor cover $115.73 1 usually ships 1-5 days
031 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
032 173-3305 Cable tie $11.66 1 usually ships 1-5 days
033 999-0689 Nut 7/16-20 hex jam plain finish $0.99 3 ships same day
034 173-3991 Washer .802 ID x 1 1/4 OD thrust (OBSOLETE) $4.75 1 usually ships 1-5 days
