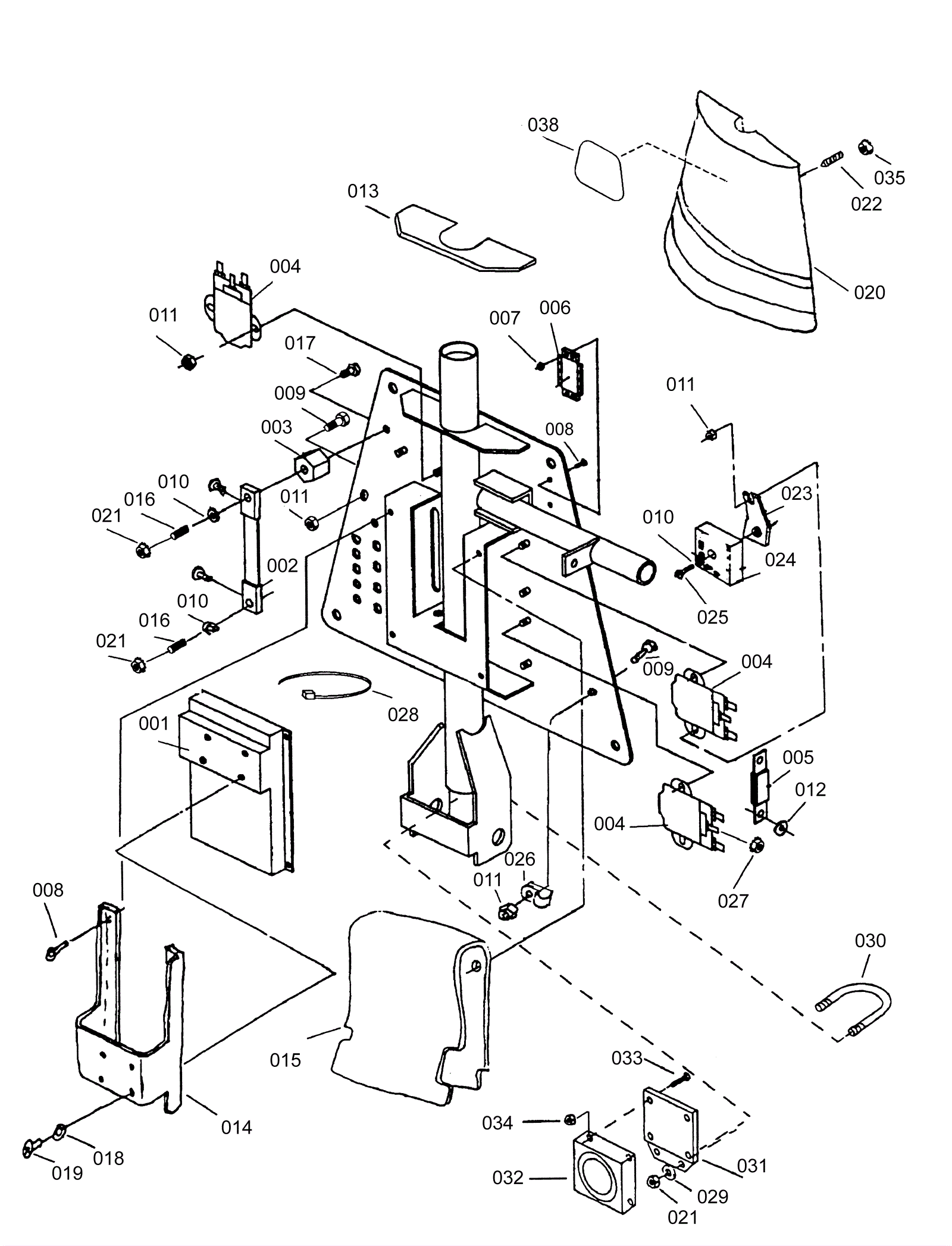

QUICK 32 Electrical Group

#PartDescriptionPriceReqNotesAvailability
001 173-3240 controller curtis $799.10 1 usually ships 1-5 days
002 173-3241 24 VDC shunt $97.00 1 usually ships 1-5 days
003 173-1145 Insulated stand-off $22.55 2 usually ships 14-22 days
004a 189-0318 24V solenoid 4 post (2 large 2 small) $138.00 3 usually ships 1-5 days
004b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 3 (NON-OEM) usually ships 14-21 days
005 173-3242 fuse 200 amp $133.10 1 usually ships 1-5 days
006 173-1790 Strip 8 position terminal $8.58 1 usually ships 1-5 days
007 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
008 173-3976 Screw 6-32 x 3/4 socket head cap $3.92 6 usually ships 1-5 days
009 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
010 999-0017 Washer 1/4 external star lock $0.99 3 ships same day
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
012 173-3912 Washer .344 x .066 flat head (OBSOLETE) $0.99 4 usually ships 14-22 days
013 173-3243 electrical panel gasket (OBSOLETE) $18.65 1 usually ships 1-5 days
014a 173-3244 plate heat sink (OBSOLETE) $67.47 1 usually ships 1-5 days
014b 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 2 ships same day
015 173-3245 cover electronics $4.62 1 usually ships 1-5 days
016 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
017 N/A Not available Call for price usually ships 3-26 days
018 173-3488 nyliner bearing from S/N 1000000324 $2.97 4 usually ships 1-5 days
019 173-3978 Screw 4 x .7 x 10 pan head machine $0.99 4 usually ships 1-5 days
020 173-3246 front cover (OBSOLETE) $160.60 1 usually ships 1-5 days
021 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
022 999-6672 Screw 5/16-18 x 1 cup point socket set stainless steel $0.99 4 ships same day
023 173-3247 plate timer (OBSOLETE) $148.01 1 usually ships 1-5 days
024 173-3248 timer 24 VDC (OBSOLETE) $172.49 1 usually ships 1-5 days
025 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 1 ships same day
026 173-1772 P clamp $4.13 1 usually ships 1-5 days
027 173-2472 Nut 10-32 with star washer $0.99 6 usually ships 1-5 days
028 173-3236 Wire tie $6.77 1 usually ships 14-22 days
029 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
030 173-3980 U-Bolt 1/4 x 1 1/2 x 2 3/4 $12.32 1 usually ships 1-5 days
031 173-3250 fan mount (OBSOLETE) $112.40 1 usually ships 1-5 days
032 173-3251 fan assembly $148.80 1 usually ships 1-5 days
033 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
034 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 4 ships same day
035 173-3981 Nut 5/16-18 hex zinc (OBSOLETE) $5.75 4 usually ships 14-22 days
036 173-1529 Windsor service card (OBSOLETE) $6.05 1 usually ships 1-5 days
037 173-1530 Service card band $3.70 1 usually ships 1-5 days
038 173-1528 Logo decal $8.73 1 ships same day
038a 173-3158 Quadra logo domed label (OBSOLETE) $23.22 1 usually ships 1-5 days
