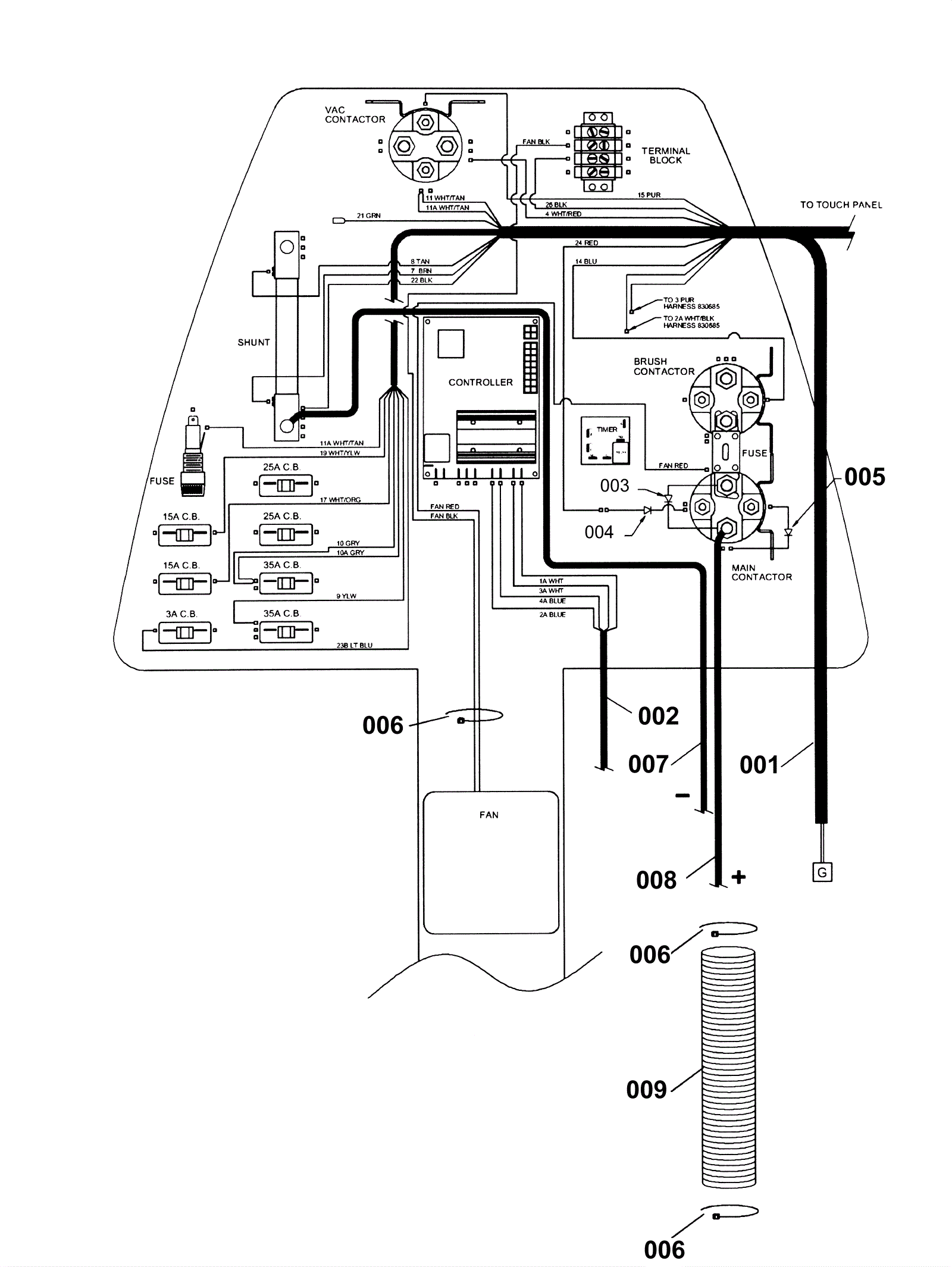

QUICK 32 Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-3233 touch pad harness (OBSOLETE) $203.17 1 usually ships 1-5 days
002 173-3234 drive motor harness $80.85 1 usually ships 1-5 days
003 189-0372 Diode assembly $148.58 1 usually ships 11-24 days
004 173-1784 diode assembly (OBSOLETE) $35.42 1 usually ships 1-5 days
005 173-3235 diode assembly (OBSOLETE) $31.93 1 usually ships 1-5 days
006 173-3236 Wire tie $6.77 3 usually ships 7-19 days
007 173-3238 4 gauge wire (black) $94.60 1 usually ships 1-5 days
008 173-3237 4 GA black wire 40 inch $79.20 1 usually ships 1-5 days
009 173-3239 loom sleeve $15.73 1 usually ships 1-5 days
