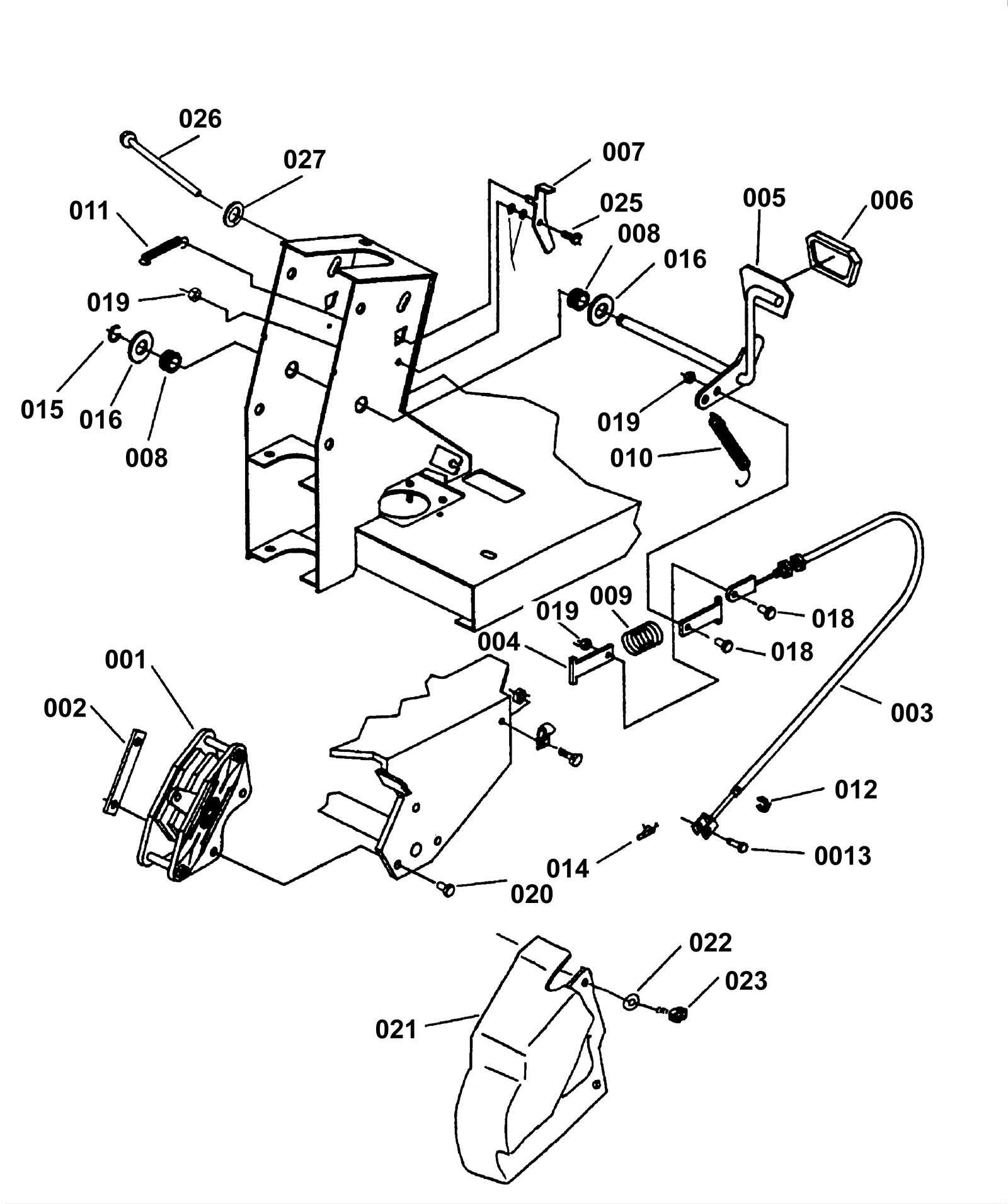

QUICK 32 Brake Group

#PartDescriptionPriceReqNotesAvailability
001 173-3213 caliper-brake $206.26 1 usually ships 1-5 days
002 173-3214 caliper retainer bar (OBSOLETE) $37.52 1 usually ships 1-5 days
003 173-3215 cable brake $132.00 1 usually ships 1-5 days
004 173-3216 plate-spring retainer $17.93 2 usually ships 1-5 days
005 173-3217 weldment brake pedal (OBSOLETE) $117.06 1 usually ships 1-5 days
006 173-3218 Brake pedal pad $31.13 1 usually ships 1-5 days
007 173-3219 tab brake lock (OBSOLETE) $37.48 1 usually ships 1-5 days
008 173-3220 Bushing $7.54 2 usually ships 1-5 days
009 173-3221 compression spring $17.08 1 usually ships 1-5 days
010 173-3222 Extension spring (OBSOLETE) $18.50 1 usually ships 1-5 days
011 173-3223 Brush splash guard $25.74 1 usually ships 1-5 days
012 173-8224 1/4 clip ring $0.99 1 usually ships 14-22 days
013 173-3225 Clevis pin plated $3.98 1 usually ships 1-5 days
014 173-1480 Cotter ring $2.12 1 ships same day
015 173-3486 Snap ring $4.16 1 usually ships 14-22 days
016 173-3974 Washer 53/100 ID X 1 OD X 3/50 $2.44 2 usually ships 1-5 days
017 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
018 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
019 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
020 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
021 173-3226 cover brake (OBSOLETE) $62.15 1 usually ships 1-5 days
022 173-3912 Washer .344 x .066 flat head (OBSOLETE) $0.99 2 usually ships 14-22 days
023 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
024 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
025 173-1772 P clamp $4.13 1 usually ships 1-5 days
026 173-3227 Plated pin $2.97 1 usually ships 1-5 days
027 173-3975 Nut 1/4 push $2.38 1 usually ships 1-5 days
