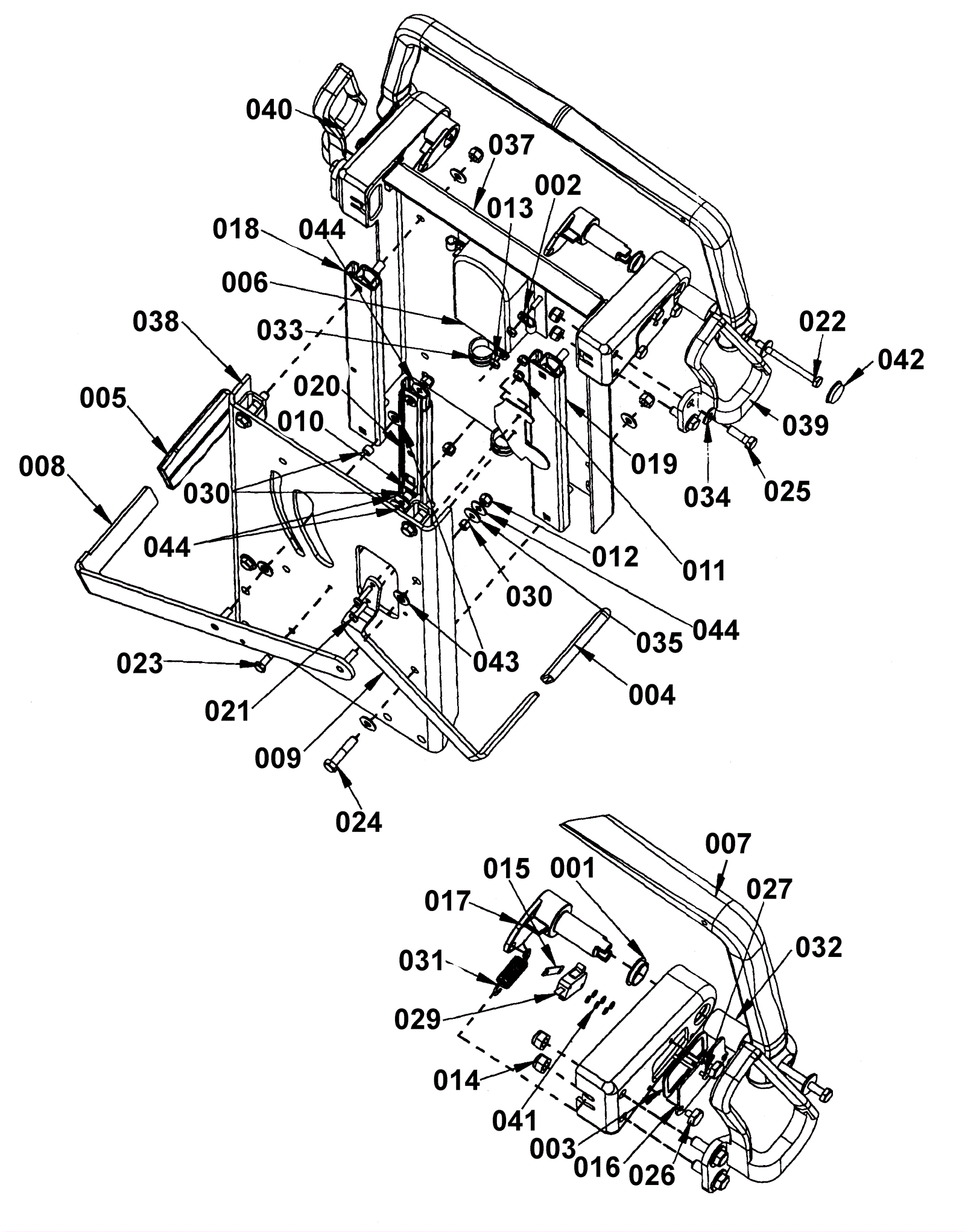

Saber 34 Rear Panel Mechanical

#PartDescription ReqNotesAvailability
001 173-1487 3/4 nyliner SI bearing 2 usually ships 1-5 days
002 173-1800 5/16 nylon clamp (OBSOLETE) 2 usually ships 14-20 days
003 173-1488 micro switch cover gasket 2 usually ships 1-5 days
004 173-1801 vinyl handle grip 1 usually ships 1-5 days
005 173-1169 Flat bar grip 3/16 x 1 inch 1 usually ships 1-5 days
006 173-1802 harness cover guard (OBSOLETE) 1 usually ships 1-5 days
007 173-1489 control handle 1 usually ships 1-5 days
008 189-0345 Squeegee lift lever 1 usually ships 14-20 days
009 173-3659 Console lift lever 1 usually ships 1-5 days
010 999-0190 Nut 1/4-20 hex plain finish 1 usually ships 11-14 days
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2 usually ships 11-14 days
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5 usually ships 11-14 days
013 173-2472 Nut 10-32 with star washer 4 usually ships 1-5 days
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12 usually ships 11-14 days
015 173-3902 Switch mounting nut plate 2 usually ships 1-5 days
016 173-1490 microswitch mount plate 2 usually ships 1-5 days
017 173-1491 handle pivot (OBSOLETE) 2 usually ships 1-5 days
018 173-1803 sliding rail 1 usually ships 1-5 days
019 173-1804 locking rail 1 usually ships 1-5 days
020 189-0346 Rail rachet (OBSOLETE) 1 usually ships 13-20 days
021 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 6 usually ships 11-14 days
022 999-0683 Bolt 1/4-20 x 3 hex head grade 5 zinc plated 2 usually ships 11-14 days
023 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 1 usually ships 11-14 days
024 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4 usually ships 11-14 days
025 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 4 usually ships 11-14 days
026 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 6 usually ships 14-20 days
027 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 4 usually ships 11-14 days
028 173-1529 Windsor service card (OBSOLETE) 1 usually ships 1-5 days
029 189-0305 Microswitch 2 usually ships 14-20 days
030 173-1658 tube 3 usually ships 1-5 days
031 189-0306 Extension spring 2 usually ships 1-5 days
032 173-1494 spacer 7/8 OD x .78 ID x 1.357L 2 usually ships 1-5 days
033 173-1772 P clamp 2 usually ships 1-5 days
035 999-1007 Washer 3/8 x 1/16 flat nylon 2 usually ships 11-14 days
036 173-1530 Service card band 1 usually ships 1-5 days
037 173-1805 console mounting weldment (OBSOLETE) 1 usually ships 1-5 days
038 173-1806 tower weldment 1 usually ships 1-5 days
039 173-1497 Grab handle bar left 1 usually ships 1-5 days
040 173-1498 Grab handle bar right (OBSOLETE) 1 usually ships 1-5 days
041 173-3904 Washer 1/8 rivet backup 12 usually ships 1-5 days
042 173-1492 1.00 hole plug 2 usually ships 1-5 days
043 173-3944 Washer 2/5 nylon 3 usually ships 1-5 days
044 173-3943 Washer 17/64 flat 4 usually ships 1-5 days
