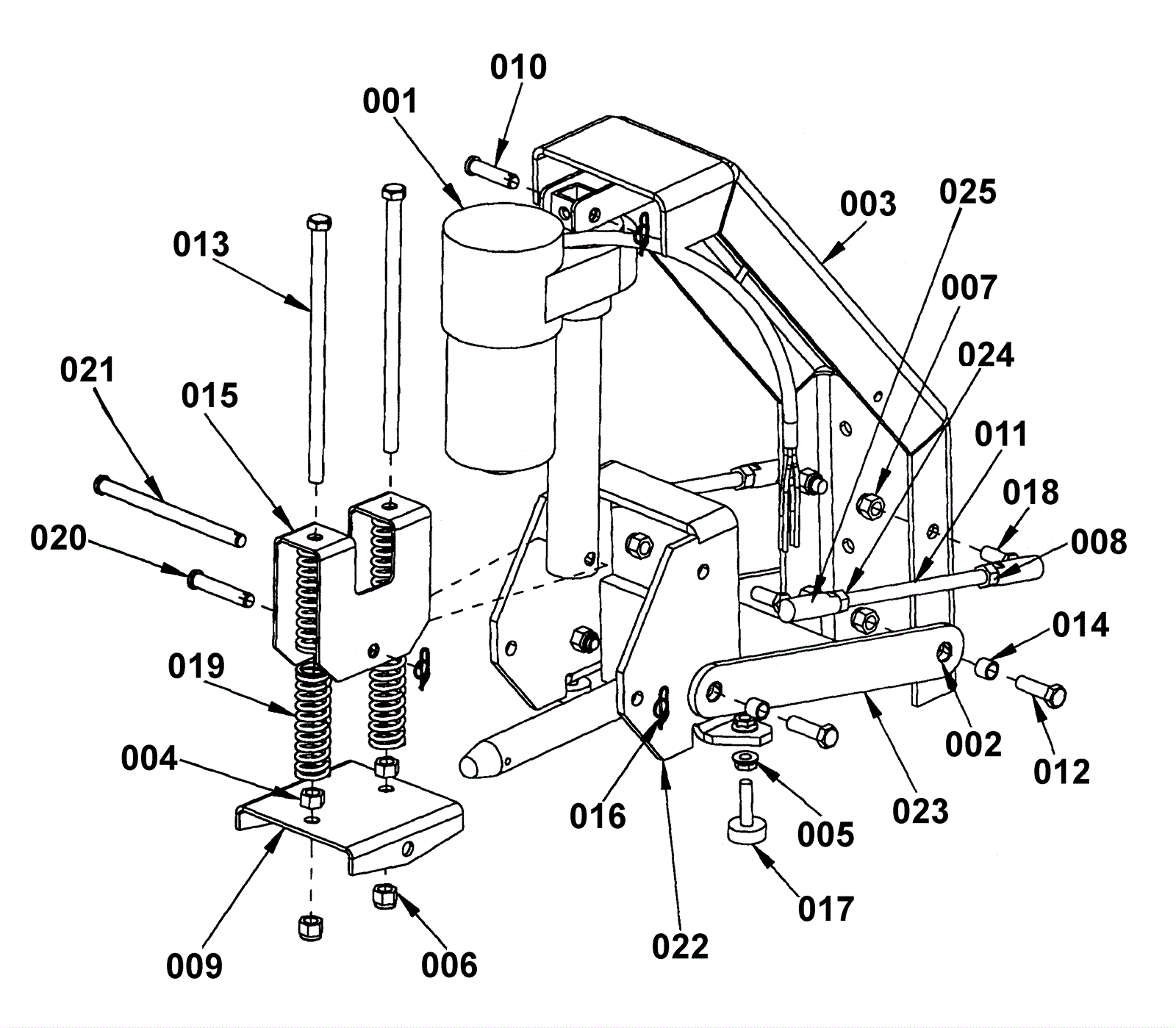

Saber 34 Brush/Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 273-0091 36V actuator $766.70 1 ships same day
002 173-1583 bearing $7.76 4 usually ships 1-5 days
003 173-1774 Actuator weldment bracket (OBSOLETE) $143.77 1 usually ships 1-5 days
004 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
005 173-2465 Nut 5/16 external snap (OBSOLETE) $0.99 4 usually ships 14-22 days
006 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 6 usually ships 14-22 days
007 999-1391 Nut 3/8-24 nylon insert lock stainless steel $1.18 4 ships same day
008a 999-0169 Nut 3/8-24 hex jam plain finish $0.99 4 ships same day
008b 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
009 173-1587 spring support plate $45.10 1 usually ships 1-5 days
010 173-1588 Clevis pin $2.31 1 usually ships 1-5 days
011a 173-1775 Rod assembly (Not Available) (OBSOLETE) Call for price 2 This part is no longer available. You need to order 011b, 011c, and 011d to get all the parts in this assembly. usually ships 1-5 days
011b 173-1589 Scrub lift rod $68.20 2 usually ships 1-5 days
011c 173-1584 Left ball joint $41.47 4 usually ships 14-22 days
011d 173-3927 Nut 3/8-24 $3.87 4 usually ships 1-5 days
012 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc $0.99 4 ships same day
013a 999-0926 Bolt 3/8-16 x 7 1/2 hex head grade 8 plain finish $5.92 2 usually ships 1-5 days
013b 173-3957 Screw 3/8-16 x 6 hex head $3.63 2 usually ships 1-5 days
014a 173-1591 Spacer $45.21 8 usually ships 1-5 days
014b 173-1591 Spacer $45.21 4 usually ships 1-5 days
015 173-1592 spring retainer plate $123.20 1 usually ships 1-5 days
016 173-1593 Cotter ring (OBSOLETE) $0.99 3 usually ships 14-22 days
017 173-1537 Adjustment bumper $53.79 2 usually ships 1-5 days
018a 173-1594 Right ball joint assembly $35.20 4 usually ships 14-22 days
018b 173-1594 Right ball joint assembly $35.20 2 usually ships 14-22 days
019a 173-1776 Compound spring $27.01 4 usually ships 1-5 days
019b 173-1777 compound spring $35.53 4 usually ships 1-5 days
020 173-1595 Clevis pin (OBSOLETE) $4.88 1 usually ships 10-16 days
021 173-1596 Clevis pin $19.58 1 usually ships 14-22 days
022 189-1040 Scrub deck pin weldment $20.49 1 usually ships 1-5 days
023a 173-1778 weldment scrub deck linkage (OBSOLETE) $146.84 2 usually ships 1-5 days
023b 173-1778 weldment scrub deck linkage (OBSOLETE) $146.84 1 usually ships 1-5 days
024 173-3927 Nut 3/8-24 $3.87 2 usually ships 1-5 days
025 173-1584 Left ball joint $41.47 2 usually ships 14-22 days
