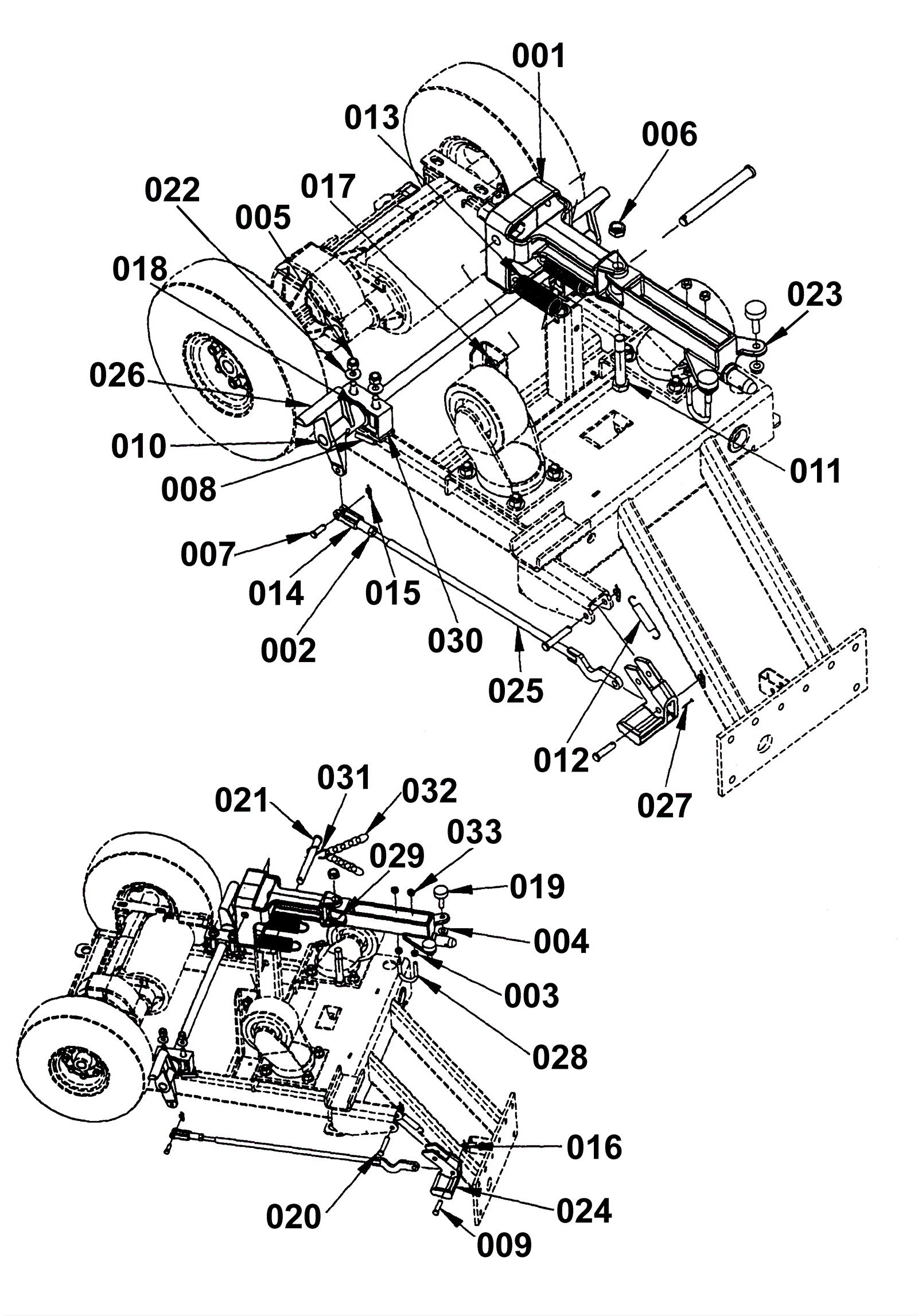

Saber 34 Brake/Squeegee Link Assemblies

#PartDescriptionPriceReqNotesAvailability
001 173-1732 Squeegee pivot linkage $272.80 1 usually ships 1-5 days
002 999-0952 Nut 1/4-28 hex stainless steel $0.99 1 ships same day
003 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
004 173-2465 Nut 5/16 external snap (OBSOLETE) $0.99 2 usually ships 14-22 days
005 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
006 173-3886 Nut 1/2-13 lock thin $2.85 1 usually ships 1-5 days
007 173-1474 Clevis pin $0.99 1 usually ships 1-5 days
008 173-2880 Roll pin $2.66 2 usually ships 14-22 days
010 173-1733 torsion brake rod $35.31 1 usually ships 1-5 days
011 999-0128 Bolt 1/2-13 x 3 hex head grade 5 zinc plated $2.51 1 ships same day
012 173-1478 Extension spring $11.99 1 ships same day
013 173-1734 Extension spring (OBSOLETE) $21.60 2 usually ships 1-5 days
014 173-1479 Yoke end clevis $45.74 1 usually ships 1-5 days
015 173-1130 Cotter ring $2.42 1 ships same day
016 173-1480 Cotter ring $2.12 2 ships same day
017 173-1659 1/2 inch cotter ring (OBSOLETE) $2.90 1 usually ships 14-22 days
018 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
019 173-1537 Adjustment bumper $53.79 2 usually ships 1-5 days
020 173-1481 Clevis pin $5.20 1 usually ships 1-5 days
021 173-1662 Clevis pin 1/2 X 4 4/5 $20.39 1 usually ships 1-5 days
022 999-0630 Washer 3/4 SAE flat $0.99 4 ships same day
023 173-1735 Squeegee lift linkage $997.70 1 usually ships 1-5 days
024 173-1482 brake pedal (OBSOLETE) $79.01 1 usually ships 1-5 days
025 173-1483 weldment rod parking brake (OBSOLETE) $114.06 1 usually ships 1-5 days
026 173-1484 brake pad (OBSOLETE) $153.12 2 usually ships 1-5 days
027 173-1039 Cotter Pin 1/16 x 3/4 $0.99 1 usually ships 1-5 days
028 173-1110 U-bolt 1/4-20 x 1 x 1 3/4 $12.43 1 usually ships 14-22 days
029 173-1663 spacer $16.53 1 usually ships 1-5 days
030 173-1486 pillow block bushing (OBSOLETE) $19.17 2 usually ships 1-5 days
031 173-1668 2 inch S hook $9.13 1 usually ships 1-5 days
032 173-1667 #10 7-links grounding chain (OBSOLETE) $18.87 1 usually ships 1-5 days
033 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
