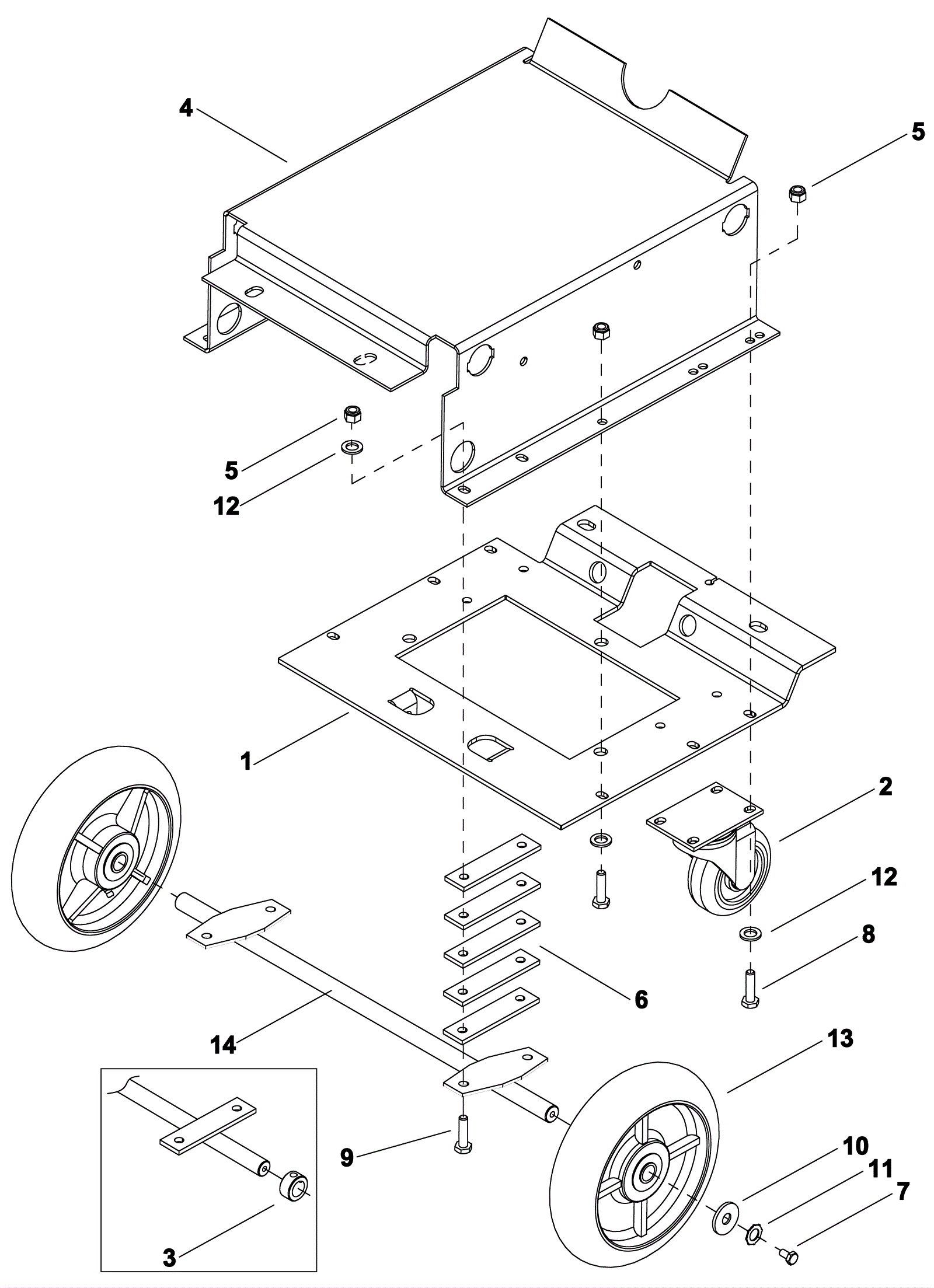

Wheel and Frame Assembly - Non-Traction

#PartDescriptionPriceReqNotesAvailability
1 173-3194 Frame bracket $149.60 1 usually ships 1-5 days
2 173-3195 Swivel caster wheel $124.30 2 ships same day
3 173-3196 Collar $43.01 2 usually ships 1-5 days
4 173-4123 Main frame $504.90 1 usually ships 1-5 days
5 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 14 ships same day
6 173-3198 Spacer plate $32.12 10 usually ships 1-5 days
7 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
8 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 10 ships same day
9 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated $0.99 4 ships same day
10 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
11 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 14 ships same day
14 173-3200 Axle weldment $195.80 1 usually ships 1-5 days
N/S 173-3201 Bearing $26.73 1 usually ships 1-5 days
