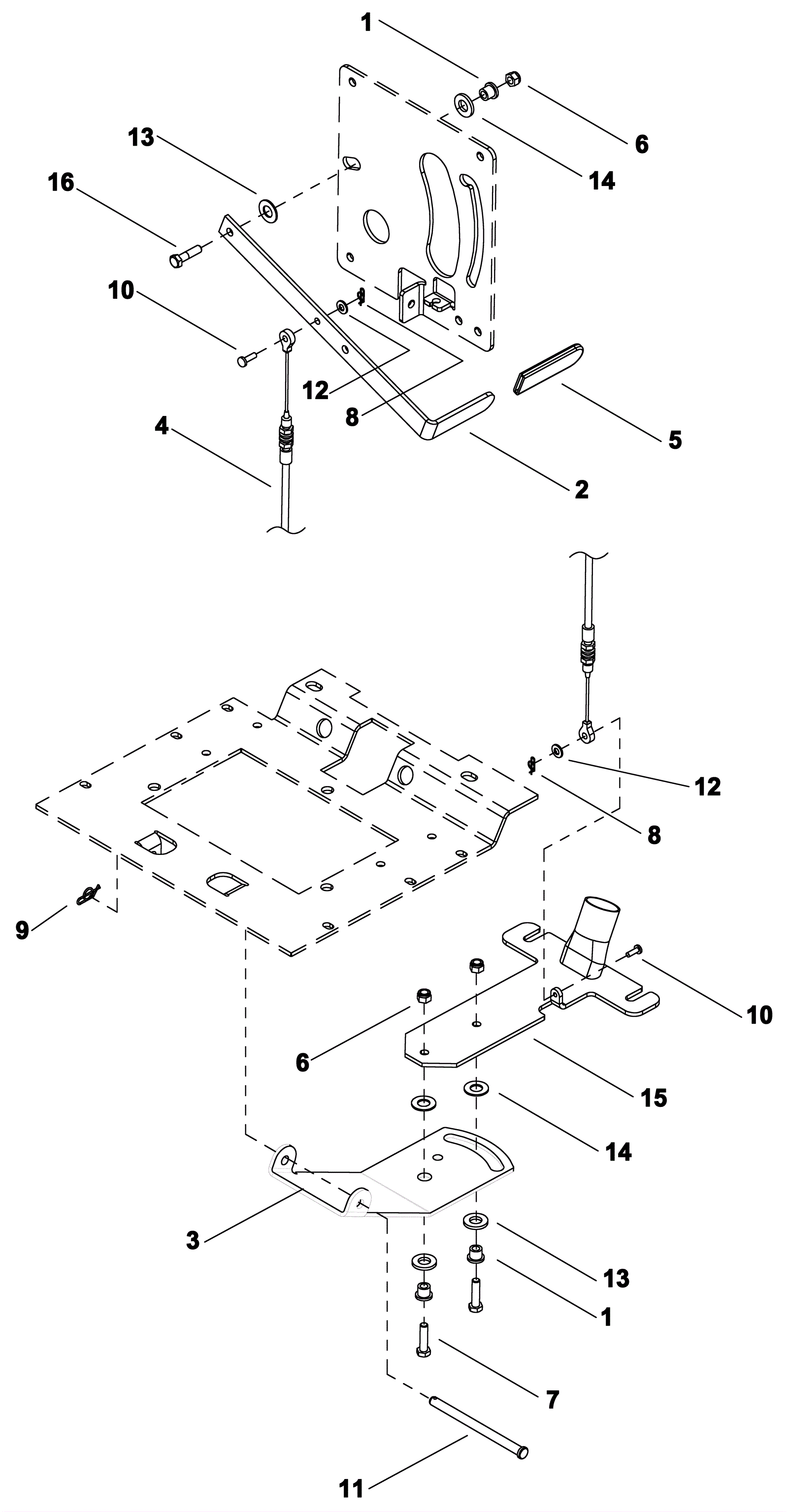

SABER DELUXE 20T Squeegee Lift Assembly - Standard

#PartDescriptionPriceReqNotesAvailability
1 173-3116 Flanged bearing $8.47 4 usually ships 7-19 days
2 173-3149 Squeegee lift lever $55.00 1 usually ships 1-5 days
3 173-3192 Squeegee pivot lift bracket $136.42 1 usually ships 7-19 days
4 173-3151 Cable $105.06 1 usually ships 7-19 days
5 173-3152 Grip $9.52 1 usually ships 7-19 days
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
7 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
8 173-1130 Cotter ring $2.42 2 ships same day
9 173-1593 Cotter ring (OBSOLETE) $0.99 1 usually ships 7-19 days
10 173-3153 Clevis pin $6.38 2 usually ships 7-19 days
11 173-1596 Clevis pin $19.58 1 usually ships 7-19 days
12 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
13 173-3963 Washer 1/2 thrust $7.32 4 usually ships 7-19 days
14 173-3964 Thrust washer $6.44 4 ships same day
15 173-3191 Squeegee link weldment $157.32 1 usually ships 7-19 days
16 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 2 usually ships 7-19 days
