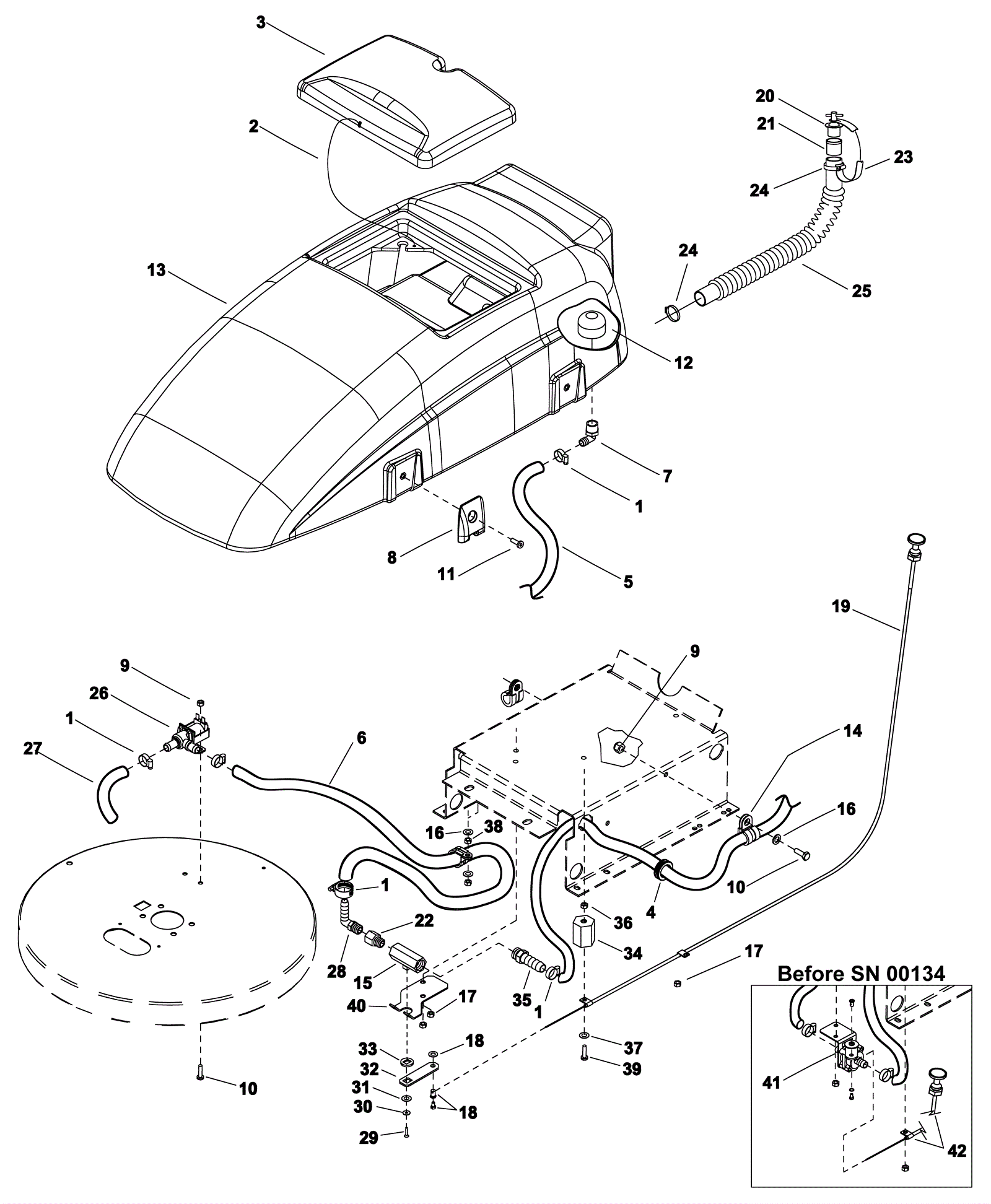

SABER DELUXE 20T Solution Tank Assembly - Non-Traction

#PartDescriptionPriceReqNotesAvailability
1 173-1821 Hose clamp $6.39 5 ships same day
2 173-1679 Solution cover cord $6.66 1 usually ships 7-19 days
3 189-0337 Solution tank lid $148.58 1 usually ships 11-24 days
4 173-1681 Grommet $0.99 2 usually ships 7-19 days
5 173-5921 Hose 1/2 x 40 inch nylon braid $24.20 1 usually ships 7-19 days
6 173-5922 Hose 1/2 x 15 inch nylon braid $10.56 1 usually ships 1-5 days
7 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 1 usually ships 7-19 days
8 189-0340 Hinge $102.10 2 usually ships 1-5 days
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
10 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
11 173-3949 Bolt 5/16-18 x 3/4 flat head zinc socket cap $6.66 2 usually ships 1-5 days
12 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
13 173-3111 Solution tank $1,037.30 1 usually ships 1-5 days
14 173-3112 P clamp $9.74 2 usually ships 7-19 days
15 173-7156 Manual ball valve $53.13 1 usually ships 7-19 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
17 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
18 173-1836 Solution cable swivel $9.35 1 usually ships 7-19 days
19 173-8477 Push and pull cable $56.10 1 usually ships 7-19 days
20 173-2794 Drain hose plug $27.39 1 ships same day
21 189-0339 Sleeve (OBSOLETE) $13.20 1 usually ships 7-19 days
22 173-5923 Bushing $20.35 1 usually ships 7-19 days
23 189-4123 Drain plug tether $28.16 1 usually ships 7-19 days
24 997-2000 Hose clamp $2.37 2 ships same day
25 173-2793 Drain hose $53.13 1 usually ships 7-19 days
26 189-0343 24V solenoid valve with hosebarb $120.82 1 (electrical) (after SN 00135) usually ships 1-5 days
27 173-5924 Hose 1/2 x 4 inch nylon braid $3.82 1 usually ships 1-5 days
28 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 1 usually ships 7-19 days
29 999-6735 Screw 10-24 x 1/2 inch flat head thread cutting zinc plated $0.99 1 usually ships 11-24 days
30 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
31 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
32 173-5926 Lever $10.84 1 usually ships 1-5 days
33 173-5927 Spacer $8.36 1 usually ships 1-5 days
34 173-1145 Insulated stand-off $22.55 1 usually ships 7-19 days
35 173-5214 Hosebarb 3/8 x 1/2 inch nylon $14.41 1 usually ships 7-19 days
36 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
37 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
38 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
39 173-5928 Screw 1/4-20 x 3/8 truss head phillips $0.99 1 usually ships 1-5 days
40 173-5929 Clamp $38.39 1 usually ships 1-5 days
41 173-3113 Solution valve kit $101.77 1 (manual) (before SN 00134) usually ships 7-19 days
42 173-3114 Push and pull cable (OBSOLETE) $28.91 1 (before SN 00134) usually ships 1-5 days
N/S 173-5930 3/8 inch ball valve assembly $242.00 (includes 7, 15, 18, 22, 23, 28, 30 thru 33 and 35) usually ships 1-5 days
