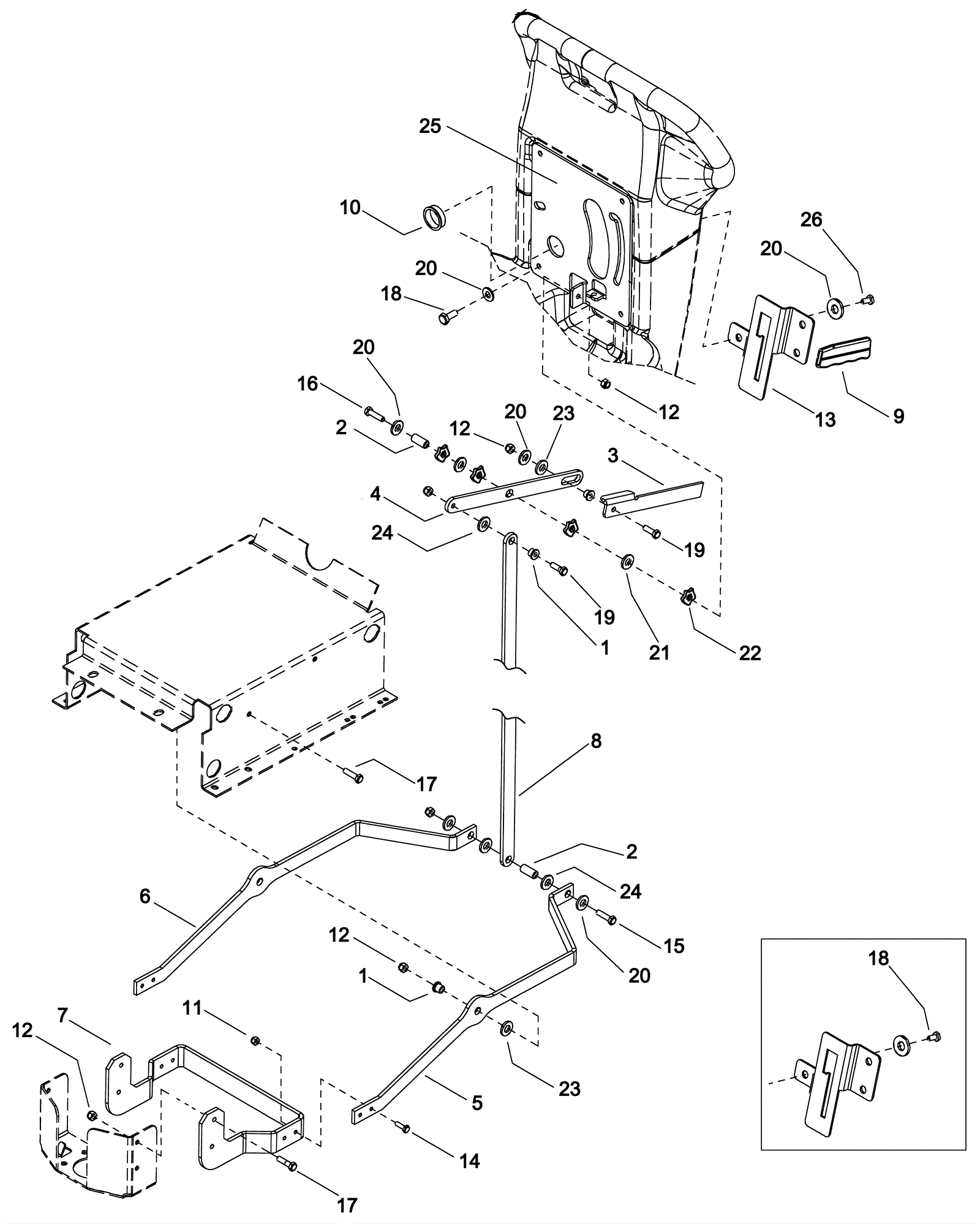

# | Part | Description | Price | Req | Notes | Availability |
1 |
173-3116
|
Flanged bearing |
$8.47
|
4 |
|
usually ships 7-19 days |
2 |
173-3117
|
Bearing |
$8.75
|
2 |
|
usually ships 1-5 days |
3 |
173-3118
|
Lift lever bracket |
$48.07
|
1 |
|
usually ships 1-5 days |
4a |
173-3120
|
Lift lever bracket |
$51.59
|
1 |
(SC20, SC20T, SCX20T) |
usually ships 1-5 days |
4b |
173-5917
|
Lift lever bracket |
$49.39
|
1 |
(SCC20, SCC20T, SCXC20T) |
usually ships 1-5 days |
5 |
173-3119
|
Left lifting bracket |
$130.90
|
1 |
|
usually ships 1-5 days |
6 |
173-3121
|
Right lifting bracket |
$132.00
|
1 |
|
usually ships 1-5 days |
7 |
173-3122
|
Scrub deck mount bracket |
$266.20
|
1 |
|
usually ships 1-5 days |
8 |
173-3123
|
Linkage bar |
$70.95
|
1 |
|
usually ships 1-5 days |
9 |
173-1169
|
Flat bar grip 3/16 x 1 inch |
$9.08
|
1 |
|
usually ships 1-5 days |
10 |
173-1681
|
Grommet |
$0.99
|
1 |
|
usually ships 7-19 days |
11 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
12 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
10 |
|
ships same day |
13 |
173-3124
|
Scrub deck position plate |
$81.95
|
1 |
|
usually ships 1-5 days |
14 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
$7.32
|
4 |
|
ships same day |
15 |
999-0591
|
Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
18 |
999-1052
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
19 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
20 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
9 |
|
ships same day |
21 |
173-2581
|
Washer flat |
$1.03
|
2 |
|
usually ships 7-19 days |
22 |
173-2571
|
Washer 1/2 x .125 wave |
$3.82
|
4 |
|
usually ships 7-19 days |
23 |
173-3963
|
Washer 1/2 thrust |
$7.32
|
3 |
|
usually ships 7-19 days |
24 |
173-3964
|
Thrust washer |
$6.44
|
3 |
|
ships same day |
25 |
173-3125
|
Tower bracket |
$172.70
|
1 |
|
usually ships 1-5 days |
26 |
173-3962
|
Bolt 5/16-18 x 1/2 hex head |
$3.33
|
3 |
|
usually ships 1-5 days |
