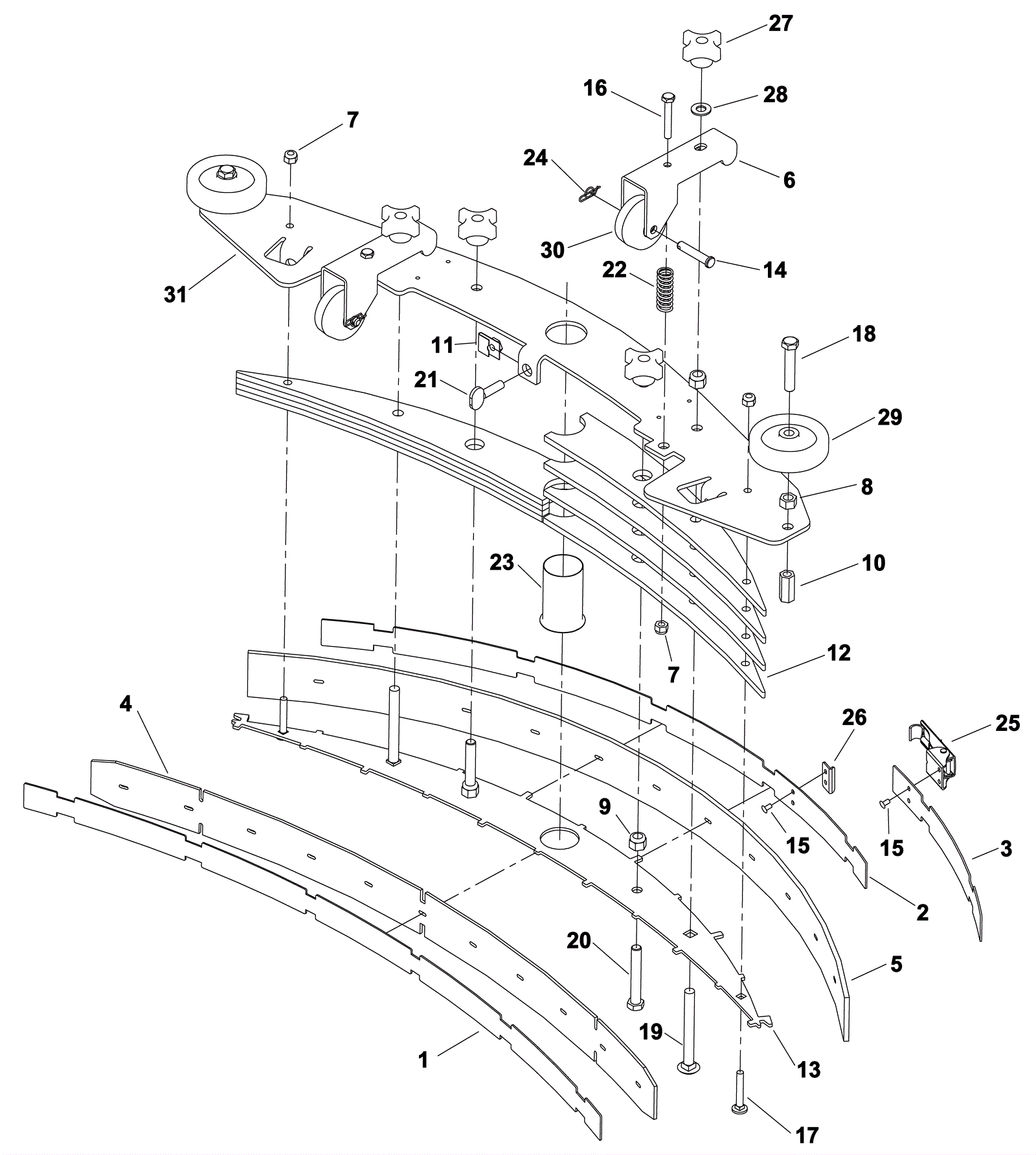

SABER DELUXE 20T Squeegee Assembly - Deluxe - Before SN 1000121941

#PartDescriptionPriceReqNotesAvailability
1 173-3142 Front squeegee band $79.20 1 usually ships 7-19 days
2 173-3143 Rear squeegee band $75.35 1 usually ships 7-19 days
3 173-3144 Rear squeegee band $50.71 1 usually ships 7-19 days
4 173-3145 Squeegee blade 31 inch linatex front (3 slots) $92.40 1 usually ships 7-19 days
5 173-3146 Squeegee blade 35 inch linatex rear $128.70 1 usually ships 7-19 days
6 173-1648 Squeegee adjustment bracket $101.75 2 usually ships 1-5 days
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
8 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
9 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 4 usually ships 7-19 days
10 173-3934 Nut 3/8-16 hex coupling stainless steel $23.98 2 usually ships 7-19 days
11 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 3 usually ships 7-19 days
12 173-3147 Squeegee filler plate (OBSOLETE) $29.17 8 usually ships 1-5 days
13 173-0409 Squeegee blade retainer plate $124.22 1 usually ships 1-5 days
14 173-3181 Clevis pin $7.10 2 ships same day
15 173-2797 Rivet $1.57 4 usually ships 7-19 days
16 173-5054 Bolt 1/4-1-3/4 hex head $2.37 2 usually ships 7-19 days
17 189-1610 Screw 1/4-20 x 1 1/2 elevator $7.72 2 usually ships 1-5 days
18 173-3937 Bolt 3/8-16 x 2 hex head $1.98 2 usually ships 7-19 days
19 999-1399 Screw 3/8-16 x 3 1/2 carriage head stainless steel $7.84 2 ships same day
20 173-3939 Screw 3/8-16 x 2 1/2 self tapping (OBSOLETE) $4.82 2 usually ships 7-19 days
21 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel $16.39 3 usually ships 7-19 days
22 189-0353 Compression spring $15.65 2 usually ships 7-19 days
23 173-1643 Vacuum hose intake tube $40.70 1 usually ships 1-5 days
24 173-1480 Cotter ring $2.12 2 ships same day
25 173-0412 Squeegee strap latch $47.20 1 usually ships 7-12 days
26 170-7029 Keeper $3.75 1 ships same day
27 173-1025 Knob $21.12 4 usually ships 7-19 days
28 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
29 189-0326 Bumper wheel $29.04 2 usually ships 11-24 days
30 189-0355 Wheel (gray) $39.85 2 usually ships 1-5 days
31 173-3148 Squeegee retainer top plate $201.30 1 usually ships 1-5 days
