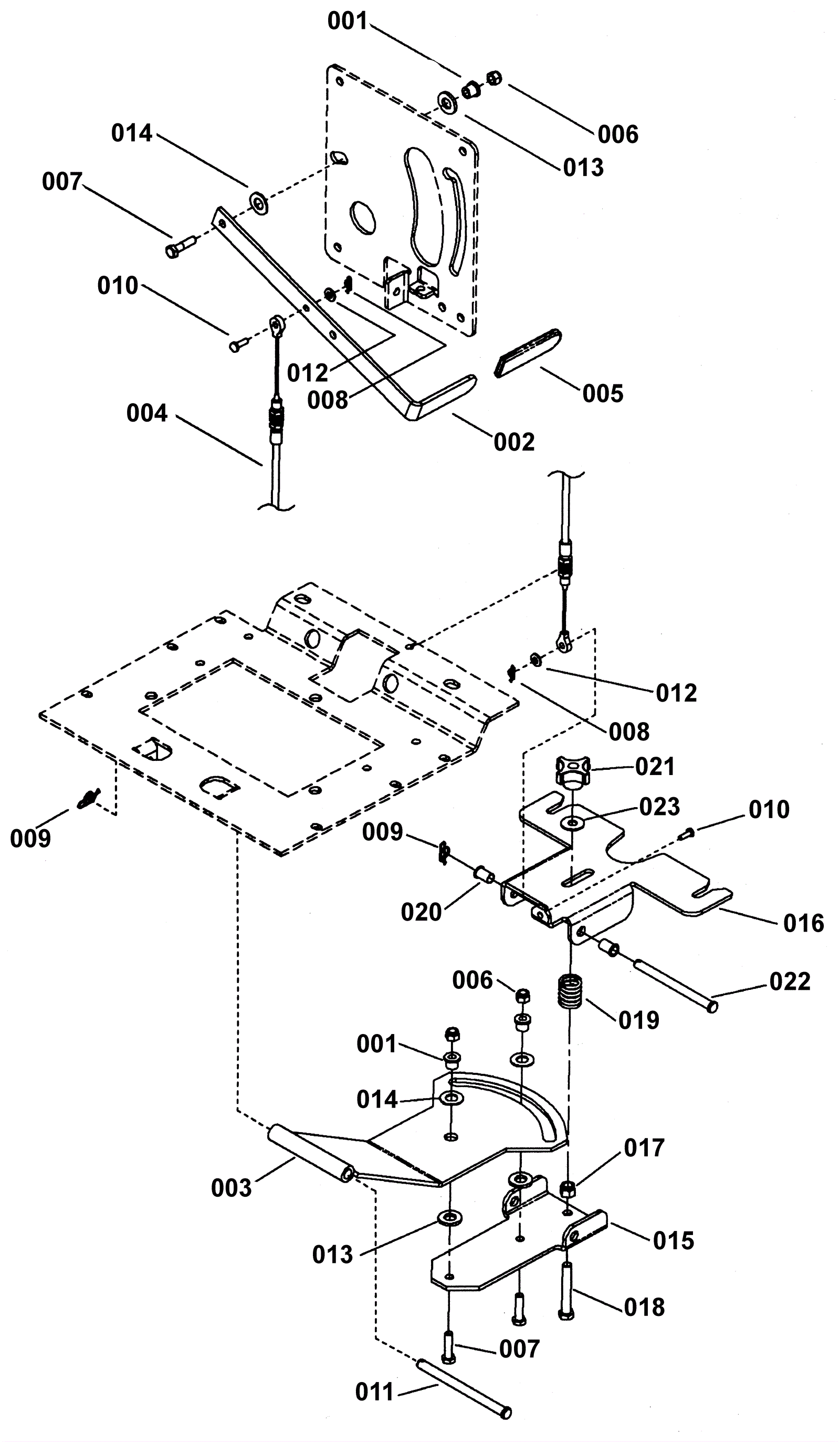

SABER DELUXE 20T Squeegee Lift Assembly - Deluxe

#PartDescriptionPriceReqNotesAvailability
1 173-3116 Flanged bearing $8.47 4 usually ships 7-19 days
2 173-3149 Squeegee lift lever $55.00 1 usually ships 1-5 days
4 173-3151 Cable $105.06 1 usually ships 7-19 days
5 173-3152 Grip $9.52 1 usually ships 7-19 days
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
7 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
8 173-1130 Cotter ring $2.42 2 ships same day
9 173-1593 Cotter ring (OBSOLETE) $0.99 1 usually ships 7-19 days
10 173-3153 Clevis pin $6.38 2 usually ships 7-19 days
11 173-1596 Clevis pin $19.58 1 usually ships 7-19 days
12 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
13 173-3963 Washer 1/2 thrust $7.32 4 usually ships 7-19 days
14 173-3964 Thrust washer $6.44 4 ships same day
15 173-3154 Pivot bracket $28.93 1 usually ships 7-19 days
16 173-3155 Squeegee mounting bracket $103.40 1 usually ships 1-5 days
17 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
18 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel $3.61 1 ships same day
19 173-3156 Compression spring $29.81 1 usually ships 1-5 days
20 173-1665 Flanged bearing $6.11 2 usually ships 7-19 days
21 173-1025 Knob $21.12 1 usually ships 7-19 days
22 173-3157 Clevis pin $17.27 1 usually ships 7-19 days
23 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
