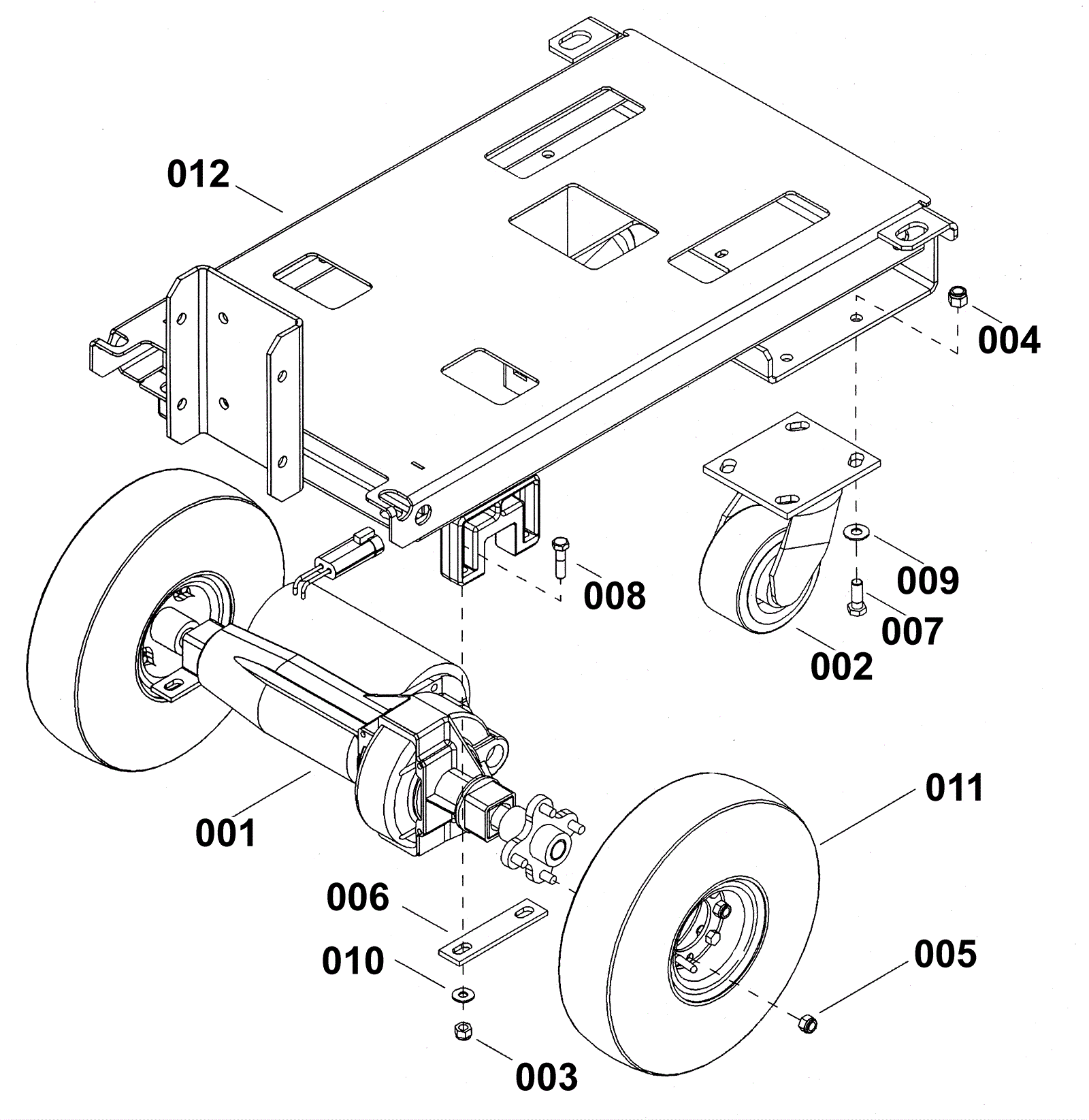

Saber 24 Wheels - Frame Group

#PartDescriptionPriceReqNotesAvailability
001 189-0347 24V drive motor axle $2,683.12 1 usually ships 7-19 days
002a 991-2006 Caster wheel assembly (red) $65.16 2 ships same day
002b 991-2008 4 inch caster wheel with bearings (red) $23.87 2 Can install if swivel is ok ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
004 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 8 usually ships 7-19 days
005 999-0340 Nut 5/16-24 nylon insert lock zinc plated $0.99 8 ships same day
006 173-1694 Drive axle plate $58.85 2 usually ships 1-5 days
007 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 8 ships same day
008 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
009 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 8 ships same day
010 173-2483 Washer 1/4ID x 3/4OD plated $0.99 4 usually ships 1-5 days
011a 189-0348 10 inch pnumatic non-marking wheel $336.71 2 usually ships 11-24 days
011b 173-1697 10 inch black wheel assembly $127.60 usually ships 1-5 days
011c 173-1699 10 inch solid wheel $757.90 usually ships 7-19 days
011d 189-0349 10 inch non-marking foam filled wheel assembly $327.86 usually ships 7-19 days
011e 173-1701 10 inch knobby wheel assembly $327.80 usually ships 7-19 days
012 173-1702 Weldment frame (OBSOLETE) $516.59 1 usually ships 1-5 days
N/A 173-1696 10 inch tire tube $33.33 (not available) usually ships 1-5 days
