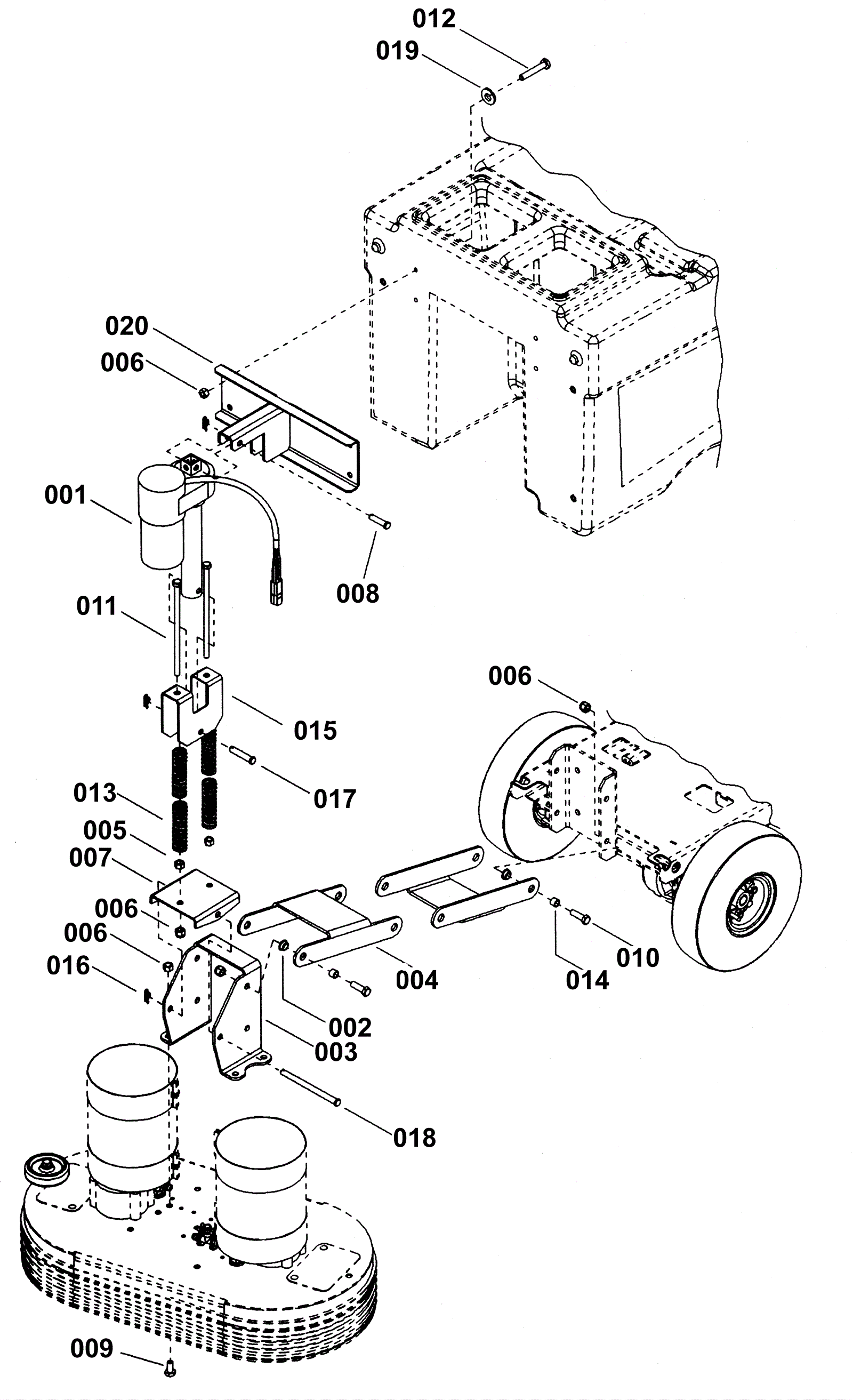

Saber 24 Scrubhead Lift Group

#PartDescriptionPriceReqNotesAvailability
001 173-1598 24V actuator $750.20 1 usually ships 14-22 days
003 173-1585 scrub head mount bracket $130.90 1 usually ships 1-5 days
004 173-1586 scrub deck linkage $96.25 2 usually ships 1-5 days
005 999-0170 Nut 3/8-16 hex plain finish $0.99 2 ships same day
006 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 18 usually ships 14-22 days
007 173-1587 spring support plate $45.10 1 usually ships 1-5 days
008 173-1588 Clevis pin $2.31 1 usually ships 1-5 days
009 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
010 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
011 999-0926 Bolt 3/8-16 x 7 1/2 hex head grade 8 plain finish $5.92 2 usually ships 1-5 days
012 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 4 ships same day
013 173-1590 compressed spring $19.29 4 usually ships 1-5 days
014 173-1591 Spacer $45.21 8 usually ships 1-5 days
015 173-1592 spring retainer plate $123.20 1 usually ships 1-5 days
016 173-1593 Cotter ring (OBSOLETE) $0.99 3 usually ships 14-22 days
017 173-1595 Clevis pin (OBSOLETE) $4.88 1 usually ships 10-16 days
018 173-1596 Clevis pin $19.58 1 usually ships 14-22 days
019 189-1562 Washer 3/8 x 3/4 sealing outer diameter $14.32 4 usually ships 14-27 days
020 N/A Not available Call for price 1 (not available) usually ships 3-26 days
