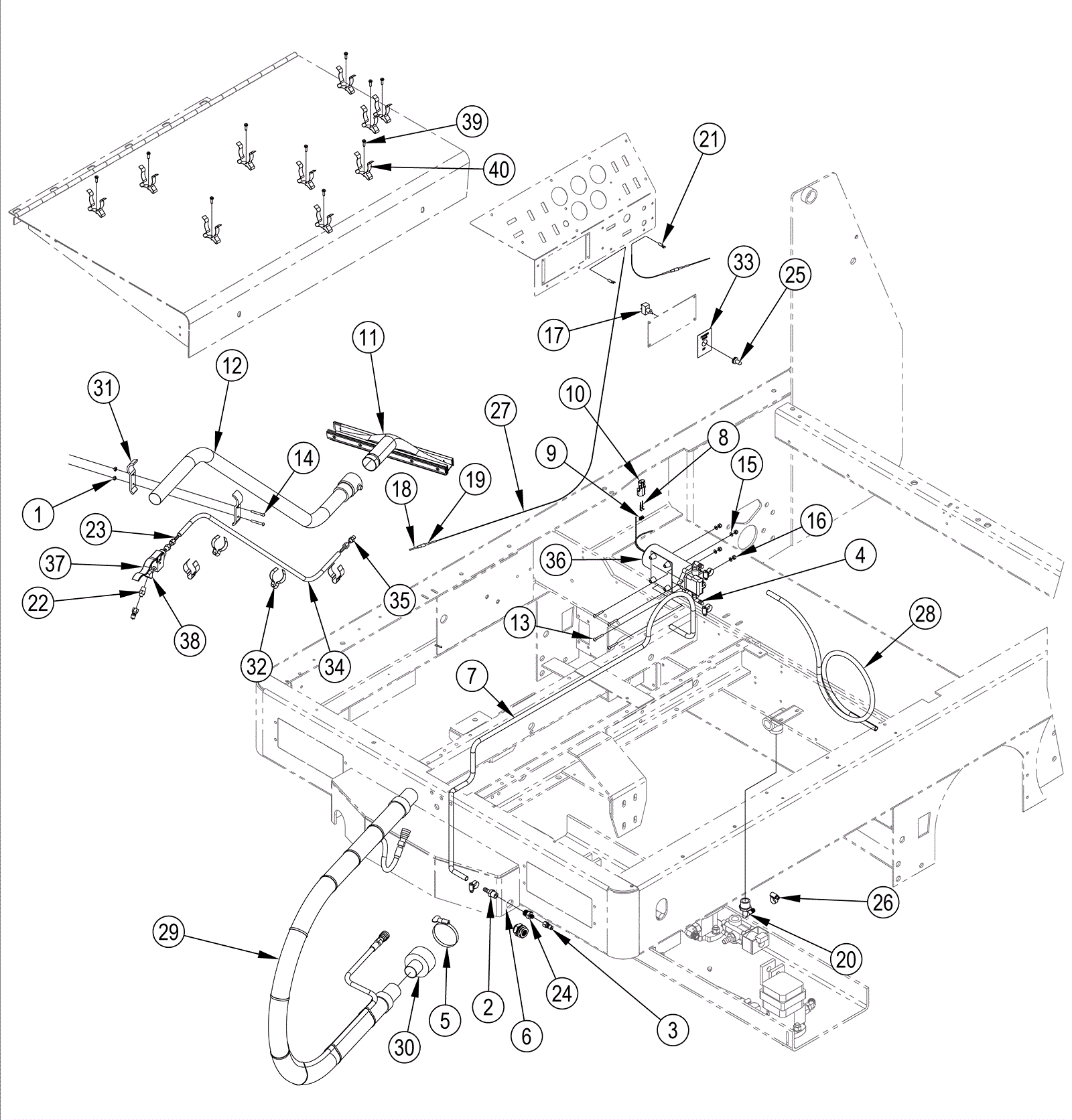

7765 Power Spray Wand Assembly - Optional

#PartDescriptionPriceReqNotesAvailability
1 999-1353 Nut 10-32 hex nylon lock insert stainless steel $0.99 2 ships same day
2 181-0259 Adaptor PP-HS $12.31 1 usually ships 17-28 days
3 170-9289 Quick disconnect coupling $40.08 2 usually ships 17-28 days
4 170-1457 Elbow barb 3/8 x 3/8 inch $10.85 2 usually ships 17-28 days
5 272-3366 Turn key hose clamp $10.85 1 usually ships 1-5 days
6 272-3367 3/8 bulkhead fitting $63.07 1 usually ships 1-5 days
7 272-3368 Solution hose $23.01 1 usually ships 1-5 days
8 172-9624 WP male terminal. $13.76 2 usually ships 17-28 days
9 172-9629 Seal WP green $13.76 2 usually ships 1-5 days
10 172-9847 Male connector $13.76 1 usually ships 17-28 days
11 172-8494 #6 hose clamp SAE $10.85 4 usually ships 1-5 days
12 170-1793 14 inch squeegee tool for wand $284.00 1 usually ships 1-5 days
13 170-1770 Wand assembly $160.86 1 usually ships 1-5 days
14 170-6839 Screw 8-32 x 1 1/5 round head machine $8.80 4 usually ships 1-5 days
15 999-0146 Screw 10-24 x 1 1/2 round head slotted zinc plated $0.99 2 ships same day
16 170-7582 Washer 7/16 x 3/16 x 1/32 flat $13.76 4 usually ships 1-5 days
17 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 4 ships same day
18 993-0200 Switch $7.80 1 usually ships 1-5 days
19 170-6637 Male bullet terminal $13.76 2 usually ships 1-5 days
20 170-6642 Female bullet terminal $12.31 2 usually ships 1-5 days
21 170-8383 90 degree elbow fitting (nylon) $12.31 1 usually ships 1-5 days
22 170-7631 Terminal $12.31 2 usually ships 1-5 days
23 170-8373 Male pipe 1/4 x 1/8 reducer $12.31 2 usually ships 1-5 days
24 170-8375 Adapter, 1/4 hose x 1/8 NPT $12.31 2 usually ships 1-5 days
25 N/A Not available Call for price 1 (3/8 nipple reducer) usually ships 3-26 days
26 272-3369 Boot $58.62 1 usually ships 1-5 days
27 170-6641 Wire 16 awg $15.07 1 usually ships 1-5 days
28 170-8387 Hose $9.13 1 usually ships 1-5 days
29 170-1427 10 foot hide a hose $528.67 1 usually ships 1-5 days
30 272-3370 Hose adapter $383.41 1 usually ships 1-5 days
31 170-8370 Valve clamp $215.00 2 usually ships 1-5 days
32 170-8367 Hose clamp $55.66 4 usually ships 1-5 days
33 170-8389 Spray wand decal $183.90 1 usually ships 1-5 days
34 170-8368 Solution feed hose $26.04 1 usually ships 17-28 days
35 170-8377 Spray nozzle $268.38 1 usually ships 1-5 days
36 272-3371 12V water pump $796.33 1 usually ships 1-5 days
37 170-8371 Solution valve $206.91 1 usually ships 17-28 days
38 170-8372 Street elbow 45 degree $12.31 1 usually ships 1-5 days
39 170-8242 Screw #10 - 24 x 5/8 thread cutting hex $12.31 10 usually ships 1-5 days
40 272-3372 Clip $13.76 10 usually ships 1-5 days
