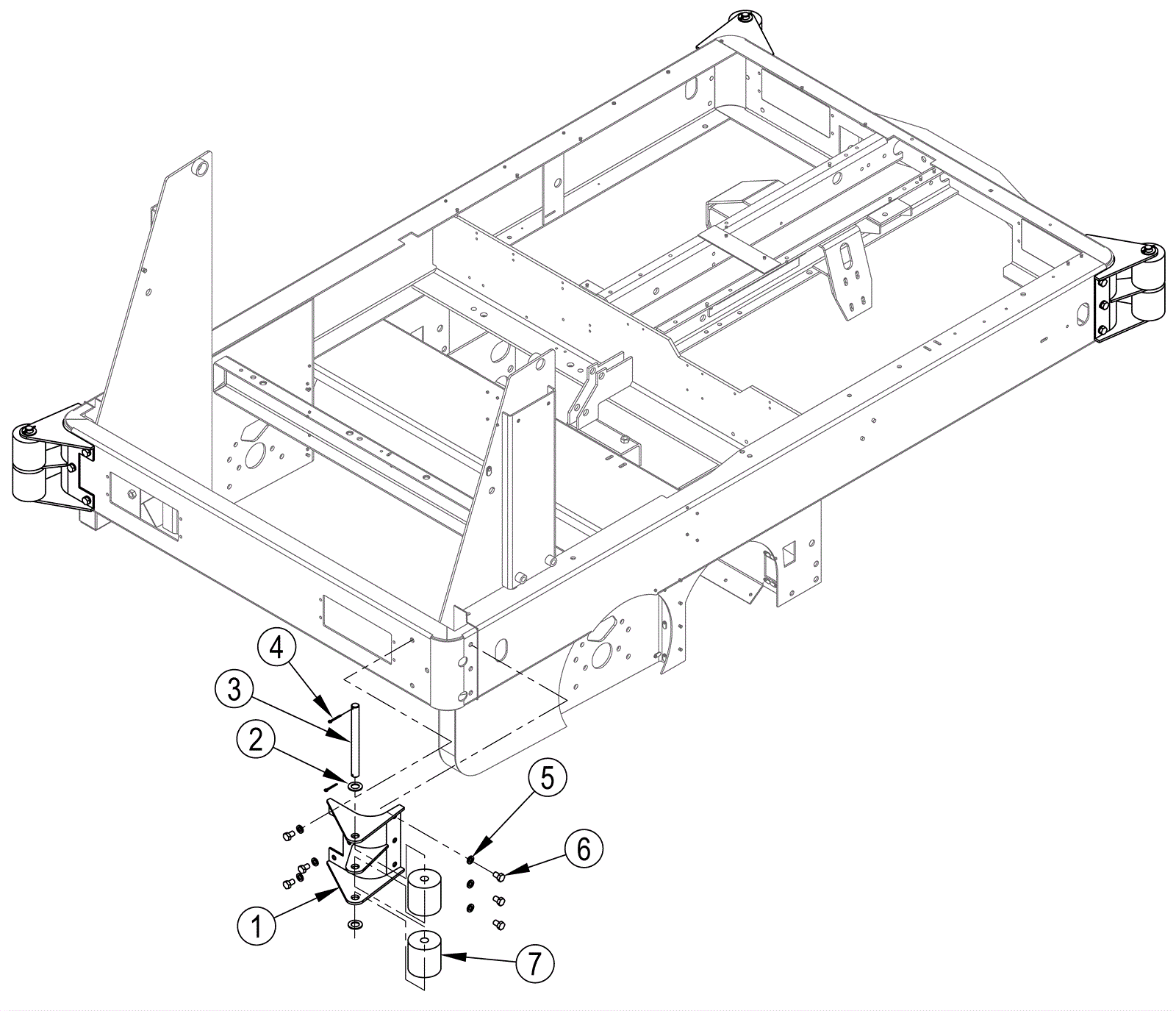

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-3392
|
Bumper mount bracket |
$903.83
|
4 |
|
usually ships 1-5 days |
2 |
272-3992
|
Washer 7/8 x 1 1/2 x 7/64 flat stainless steel |
$12.31
|
8 |
|
usually ships 1-5 days |
3 |
272-3393
|
Bumper shaft |
$114.88
|
4 |
|
usually ships 1-5 days |
4 |
272-8680
|
Cotter pin |
$13.17
|
8 |
|
usually ships 1-5 days |
5 |
170-6788
|
Lock helical spring 1/2 medium washer |
$12.31
|
24 |
|
usually ships 1-5 days |
6 |
999-0281
|
Bolt 1/2-13 x 3/4 hex head grade 5 zinc plated |
$0.99
|
24 |
|
ships same day |
7 |
272-3394
|
Bumper roller |
$97.09
|
8 |
|
usually ships 1-5 days |
