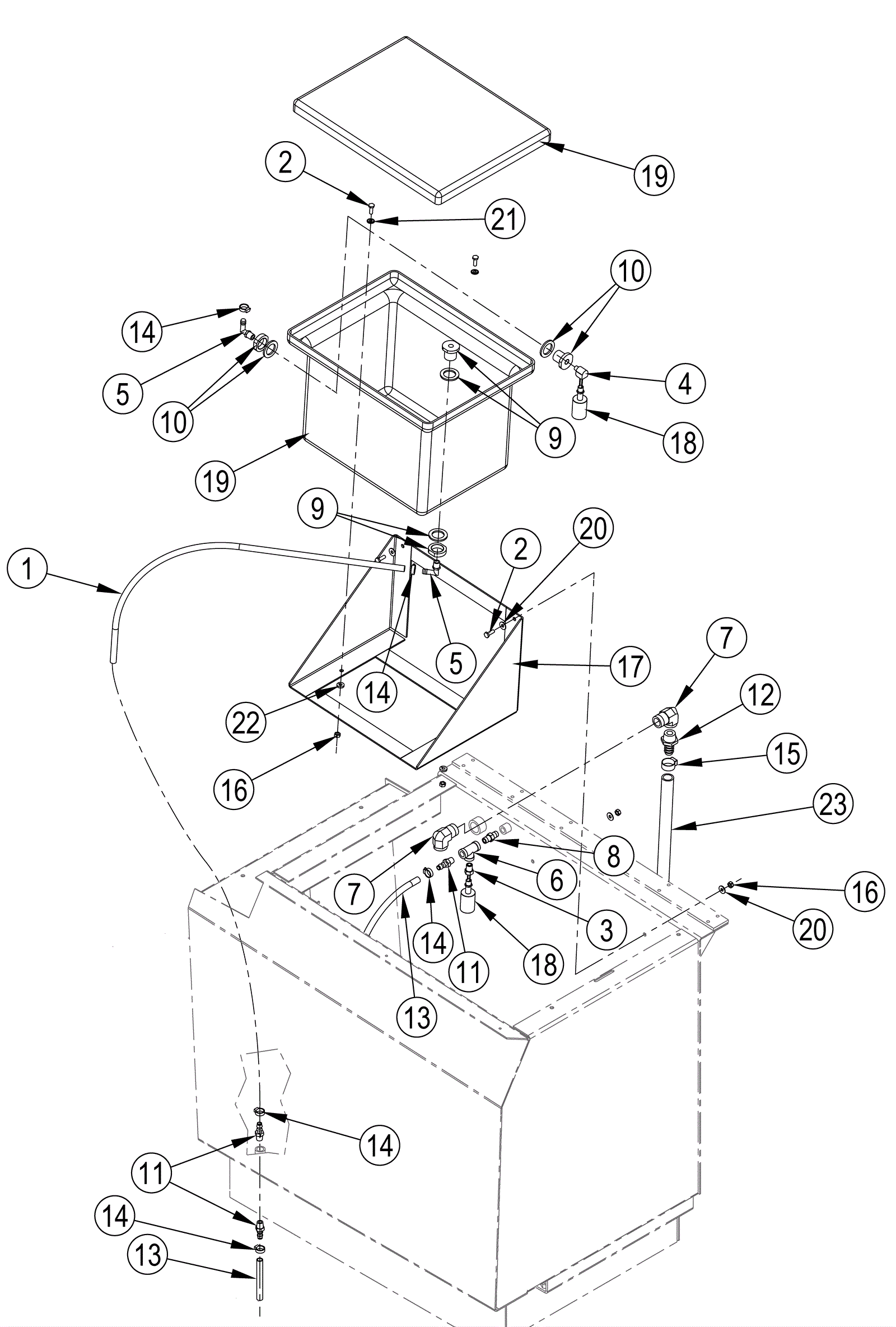

7765 Detergent and Solution Tank Assembly - ESP - Optional

#PartDescriptionPriceReqNotesAvailability
1 272-6173 Hose $18.26 1 usually ships 1-5 days
2 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
3 272-6174 Pipe thread reducer (OBSOLETE) $7.59 1 usually ships 1-5 days
4 272-6175 90 degree street elbow fitting $35.60 1 usually ships 1-5 days
5 272-6176 90 degree hose barb fitting $12.31 2 usually ships 1-5 days
6 272-6177 1/4 tee fitting $40.08 1 usually ships 1-5 days
7 272-6155 Elbow $14.47 2 usually ships 1-5 days
8 272-7761 1/4 Npt hex brass nipple fitting $12.31 1 usually ships 1-5 days
9 272-6178 Detergent tank fitting (OBSOLETE) $53.57 1 usually ships 1-5 days
10 272-6179 Detergent float fitting $160.86 1 usually ships 1-5 days
11 272-6180 Plastic fitting $12.31 3 usually ships 1-5 days
12 272-4883 3/4 inch barbed hose fitting $12.31 1 usually ships 1-5 days
13 272-6171 18 inch tube $28.60 2 usually ships 1-5 days
14 170-6988 Hose clamp $12.31 5 usually ships 1-5 days
15 170-7767 Hose clamp $10.85 1 usually ships 1-5 days
16 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
17 272-6181 Detergent tank support (OBSOLETE) $314.93 1 usually ships 1-5 days
18 170-6992 Float switch $367.77 2 usually ships 1-5 days
19 272-6182 Detergent tank $949.84 1 usually ships 1-5 days
20 170-6923 Washer 11/16 x 17/64 x 3/64 $12.31 4 usually ships 1-5 days
21 172-2208 Sealing washer $10.85 2 usually ships 17-28 days
22 170-6926 Lock helical spring washer 1/4 medium $12.31 2 usually ships 17-28 days
23 272-6167 Solution tank hose $19.98 1 usually ships 1-5 days
