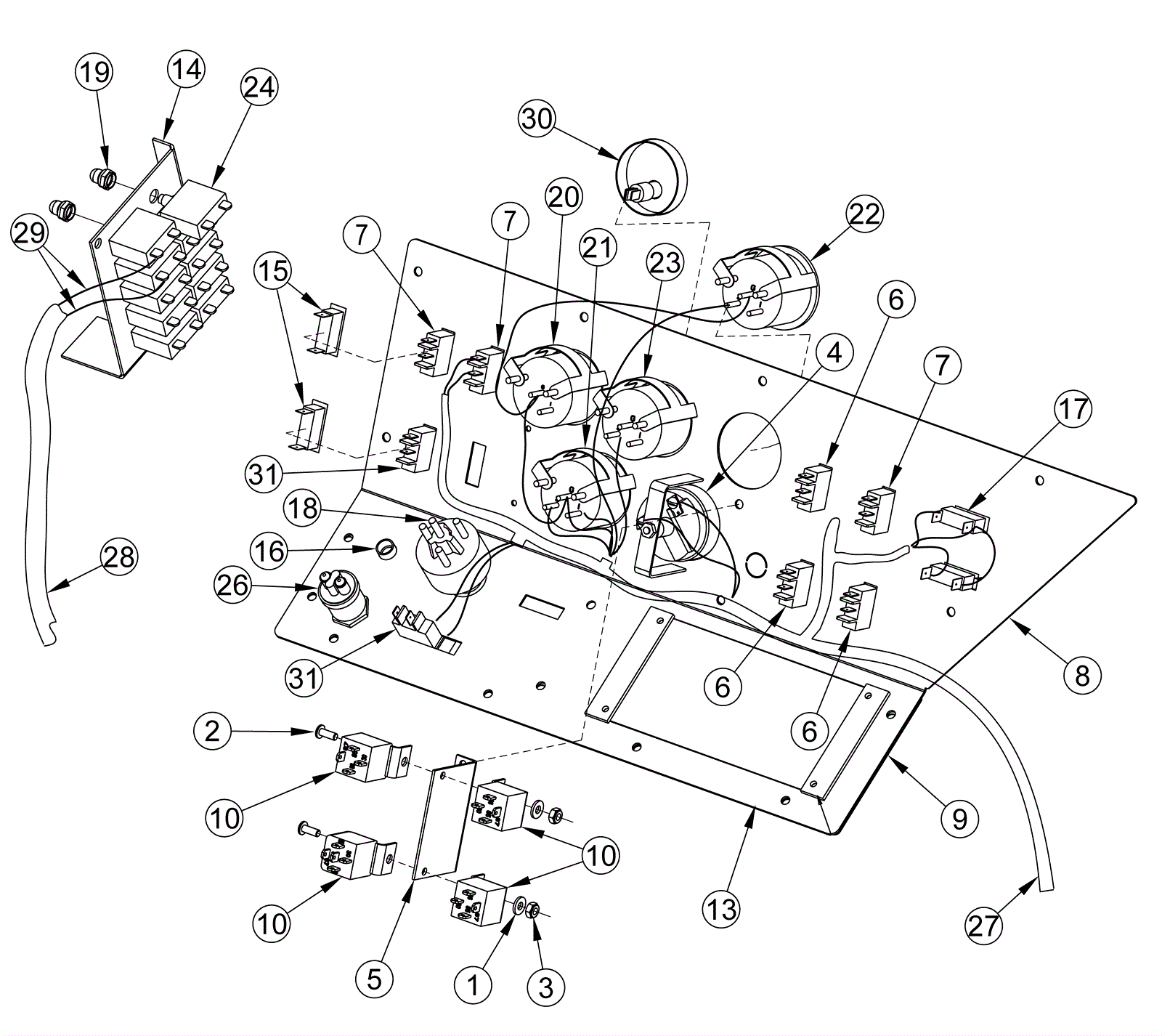

7765 Instrument Panel Connection Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
2 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
3 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
4 272-2947 Hour meter $222.53 1 usually ships 1-5 days
5 272-5985 Relay bracket $24.60 1 usually ships 1-5 days
6 272-5986 On/off switch $49.63 3 usually ships 17-28 days
7 272-5986 On/off switch $49.63 3 usually ships 17-28 days
8 272-5988 Top control panel decal $134.98 1 usually ships 1-5 days
9 272-5989 Front instrument panel decal $90.43 1 usually ships 1-5 days
10 272-2950 Hopper door relay $37.05 4 usually ships 1-5 days
13 272-5990 Instrument panel weldment $199.52 1 usually ships 1-5 days
14 272-5991 Circuit breaker mount $37.05 1 usually ships 1-5 days
15 272-5992 Plug (OBSOLETE) $8.25 2 (MD models only) usually ships 1-5 days
16 170-8254 Hole plug $11.69 1 usually ships 1-5 days
17 272-5993 Red light $32.69 2 usually ships 1-5 days
18 272-5994 Anti re-start key switch $238.01 1 usually ships 1-5 days
19 170-8260 Circuit breaker boot $49.63 10 usually ships 1-5 days
20 272-5995 Voltmeter $176.52 1 usually ships 1-5 days
21 272-5996 Oil pressure gauge $298.77 1 usually ships 1-5 days
22 272-5997 Water temperature gauge $183.90 1 usually ships 1-5 days
23 270-0644 Fuel gauge $176.52 1 (gasoline and diesel only) usually ships 1-5 days
24 272-5998 15amp circuit breaker $86.09 10 usually ships 1-5 days
26 272-7266 Horn push button $81.60 1 usually ships 1-5 days
27 272-5999 Instrument panel harness $1,486.03 1 usually ships 17-28 days
28 272-6000 Circuit breaker harness $206.91 1 usually ships 1-5 days
29 272-6206 Wire $18.38 2 usually ships 1-5 days
30 272-6207 Low LP indicator kit $111.99 1 (LPG only) usually ships 1-5 days
31 272-6208 On/off switch $6.22 2 usually ships 17-28 days
