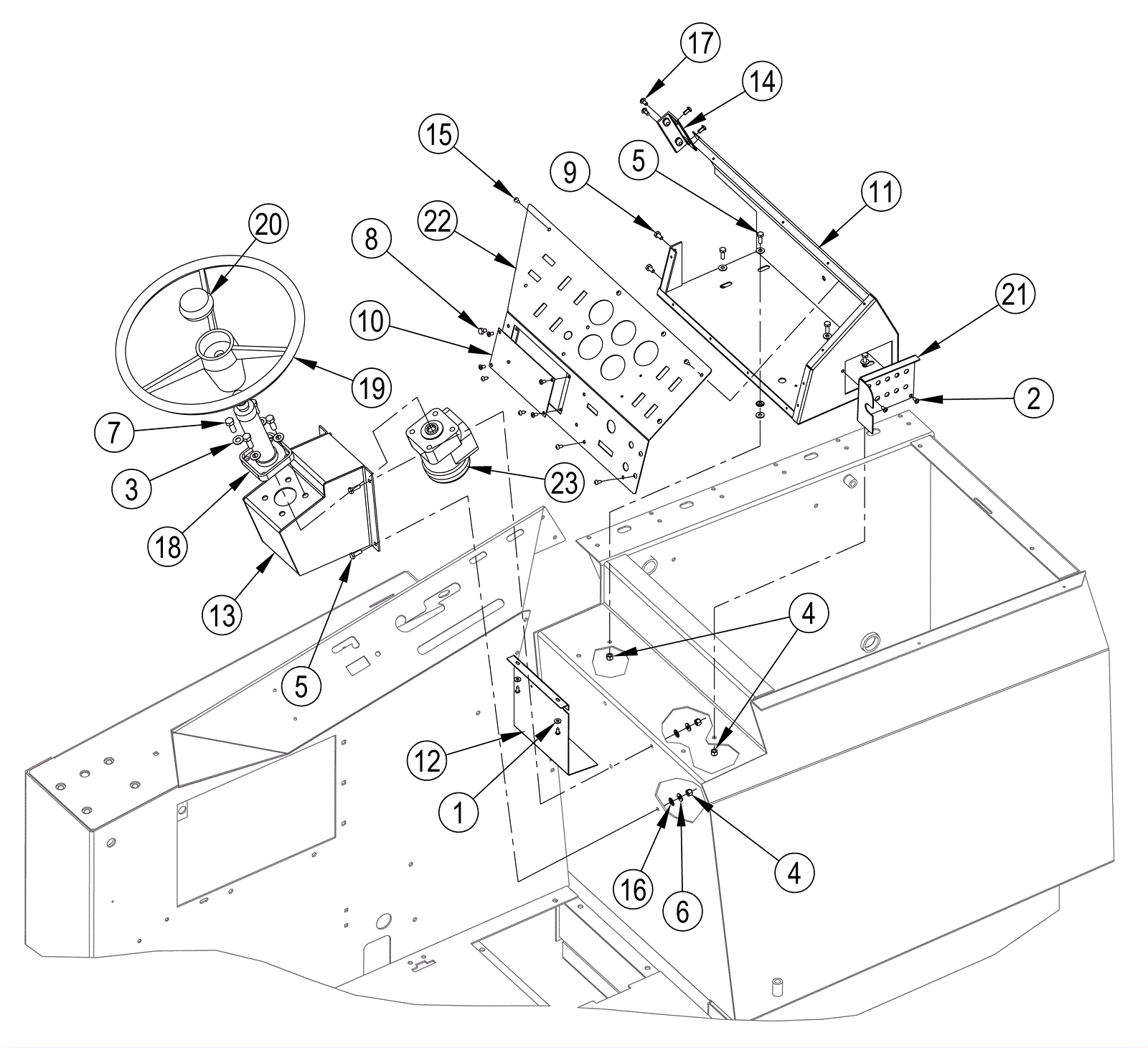

7765 Steering and Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
2 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel $0.99 6 ships same day
3 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
7 272-6209 Screw 3/8-16 x 1 hex head $12.31 4 usually ships 1-5 days
9 272-9677 Screw 1/4-20 x 1/2 hex head $12.31 2 usually ships 1-5 days
10 272-6210 Blank panel $12.31 1 usually ships 1-5 days
11 272-6211 Console weldment housing $475.30 1 usually ships 1-5 days
12 272-6212 Panel cover $41.54 1 usually ships 1-5 days
13 272-6213 Steering weldment housing $229.88 1 usually ships 17-28 days
14 372-1252 Console support bracket $40.08 1 usually ships 17-28 days
15 170-6924 Screw 10-16 x 1/2 $13.17 13 usually ships 1-5 days
16 172-2208 Sealing washer $10.85 8 usually ships 17-28 days
17 999-0383 Screw 1/4-20 x 1/2 button head socket cap plain finish $0.99 4 ships same day
18 272-6214 Steering column assembly $735.56 1 usually ships 1-5 days
19 272-6215 Steering wheel $314.39 1 usually ships 1-5 days
20 272-6216 Steering wheel cap $26.04 1 usually ships 1-5 days
21 272-5991 Circuit breaker mount $37.05 1 usually ships 1-5 days
22 272-5990 Instrument panel weldment $199.52 1 usually ships 1-5 days
23 272-5942 Power steering unit $1,531.18 1 usually ships 1-5 days
