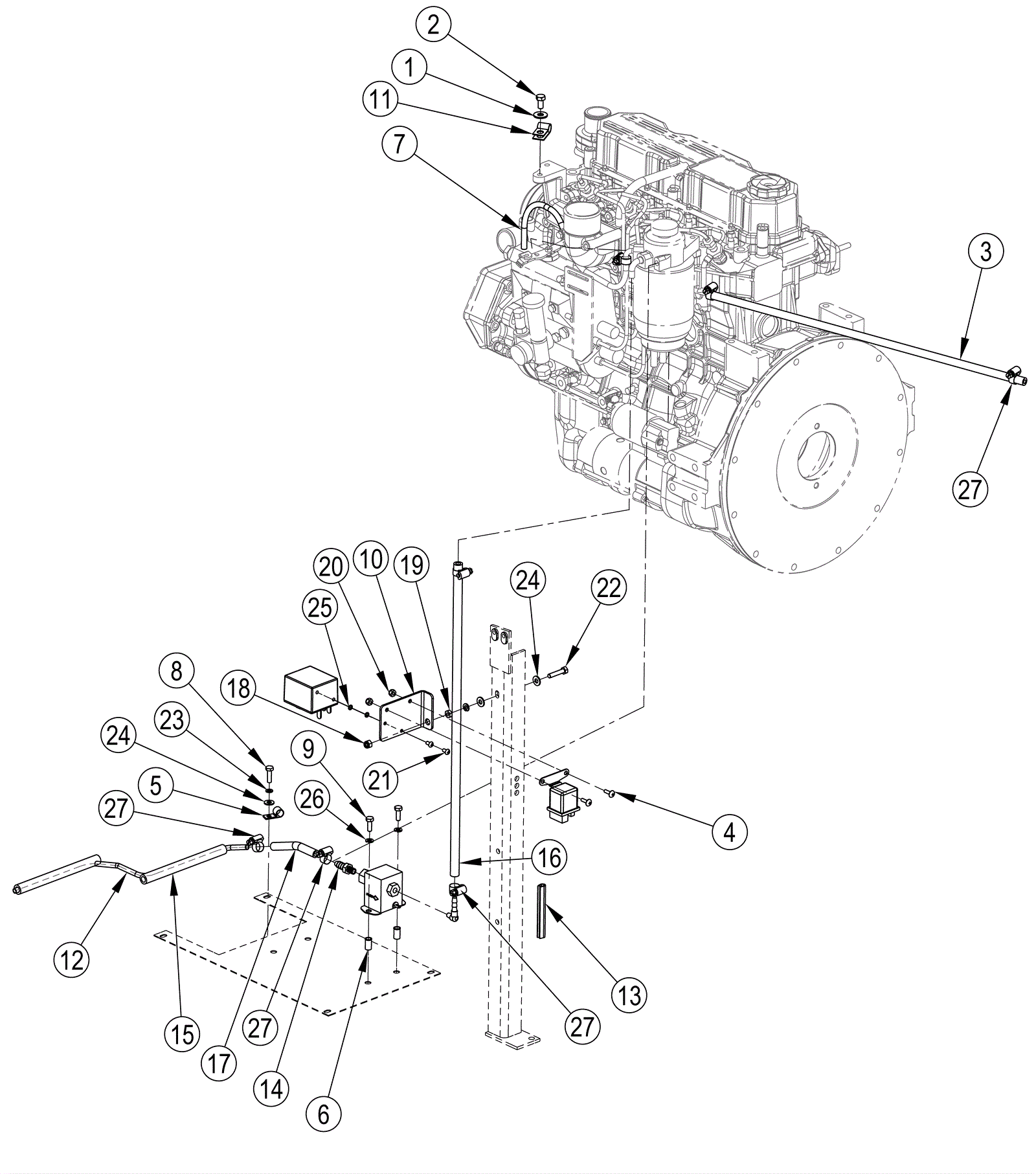

7765 Fuel Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
1 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
2 999-0783 Screw M8-1.25 x 16mm hex head $0.99 1 ships same day
3 372-1027 Fuel line $65.97 1 usually ships 1-5 days
4 272-6192 Screw 10-24 x 5/8 $13.17 2 usually ships 1-5 days
5 170-8297 Clamp $10.52 1 usually ships 17-28 days
6 272-6874 Nutsert $12.31 2 usually ships 1-5 days
7 372-1028 Fuel hose $15.40 1 usually ships 1-5 days
8 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 1 ships same day
9 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
10 372-1029 Bracket $40.08 1 usually ships 1-5 days
11 372-3106 Clamp $6.22 1 usually ships 17-28 days
12 372-1030 Fuel line tube $74.21 1 usually ships 1-5 days
13 372-1031 Edging $12.31 2 usually ships 1-5 days
14 272-6923 Felt washer $12.31 1 usually ships 1-5 days
15 372-1032 Hose $16.95 2 usually ships 1-5 days
16 372-1033 22 inch fuel hose $18.38 1 usually ships 1-5 days
17 372-1034 Fuel hose $15.48 1 usually ships 1-5 days
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
18 170-6639 Nut 1/4-20 $13.17 1 usually ships 1-5 days
20 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
21 372-1035 Screw $10.85 2 usually ships 1-5 days
22 272-6906 Screw 1/4-20 x 1 1/4 $13.17 1 usually ships 1-5 days
23 372-1011 Washer 1/4 $12.31 1 usually ships 17-28 days
24 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
25 170-6836 Washer lock $13.76 2 usually ships 1-5 days
26 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
27 170-5169 Hose clamp SAE #4 $10.85 7 usually ships 1-5 days
