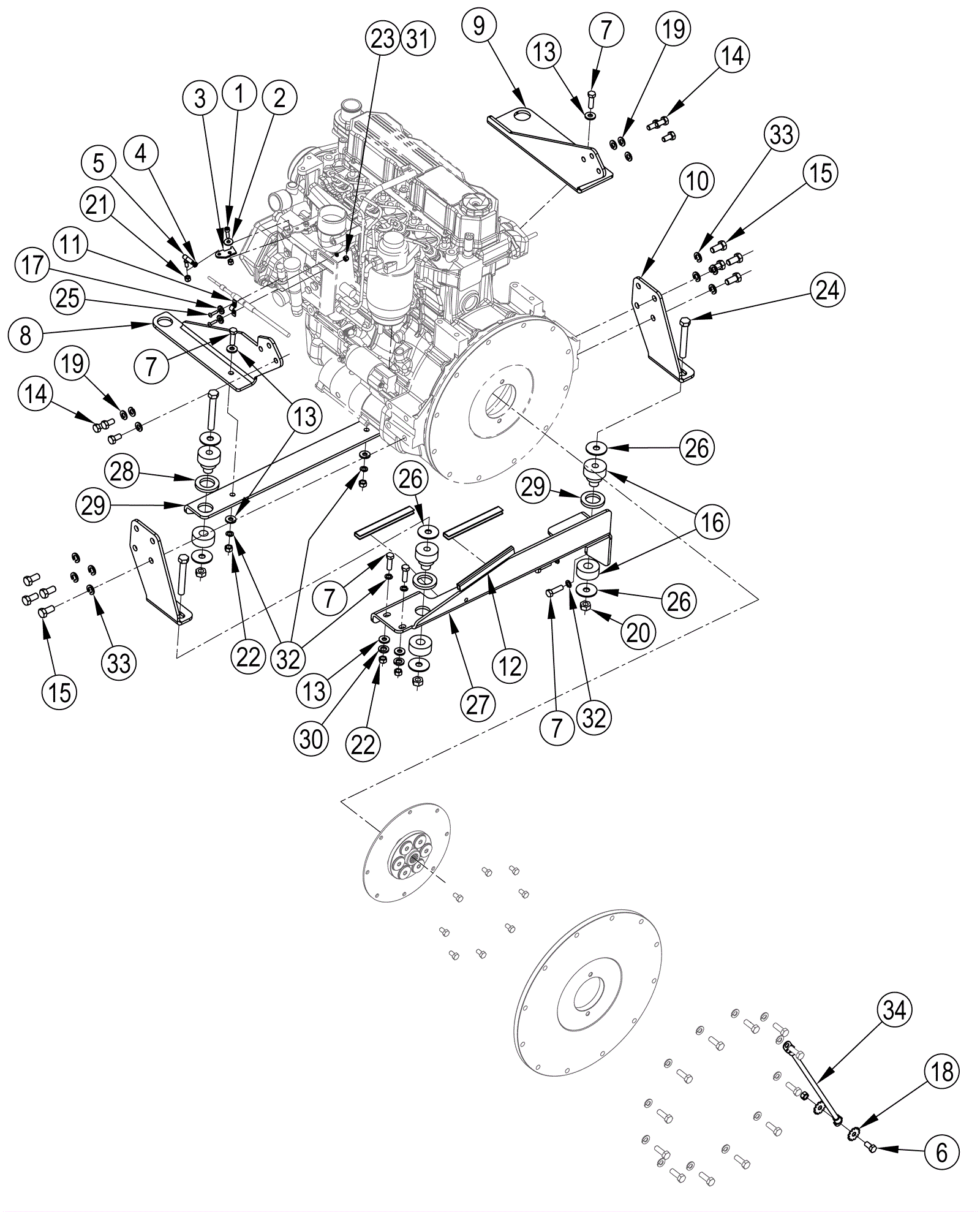

7765 Support and Throttle Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
1 172-0698 Screw M6 x 20 socket head $12.31 1 usually ships 1-5 days
2 372-1036 Washer 6mm $12.31 1 usually ships 1-5 days
3 372-1037 Arm engine throttle $183.90 1 usually ships 1-5 days
4 999-0460 Nut 10-32 hex $0.99 1 ships same day
5 372-1038 Ball joint connector $41.54 1 usually ships 1-5 days
6 372-2116 Screw 3/8-16 x 3/4 hex head $12.31 1 usually ships 17-28 days
7 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 6 ships same day
8 372-1039 Engine mount bracket $152.05 1 usually ships 1-5 days
9 372-1040 Engine mount bracket $103.00 1 usually ships 1-5 days
10 372-1041 Rear engine bracket $70.47 2 usually ships 1-5 days
11 272-5658 Conduit clamp $12.31 1 usually ships 1-5 days
12 272-6883 Brush drive support edging $18.38 3 usually ships 1-5 days
13 272-4896 Flat washer $12.31 6 usually ships 1-5 days
14 372-1024 Screw M10-1.25 x 20mm $13.17 6 usually ships 1-5 days
15 272-1654 Bolt 12mm-1 3/4 x 25mm $5.19 8 usually ships 1-5 days
16 372-1001 Engine mount isolator $137.90 4 usually ships 1-5 days
17 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
18 372-1043 Washer 3/8 $12.31 2 usually ships 1-5 days
19 372-1026 Helical spring $12.31 18 usually ships 1-5 days
20 372-1049 Nut 1/2-20 $12.31 4 usually ships 1-5 days
21 170-6783 Nut 1/4 - 28 fiber insert $12.31 1 usually ships 1-5 days
22 999-0635 Nut 3/8-16 hex stainless steel $0.99 5 ships same day
23 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
24 372-1044 Screw 1/2-20 x 3 1/2 $10.85 4 usually ships 1-5 days
25 372-1045 Screw 8-32 $10.85 2 usually ships 1-5 days
26 372-1003 Spacer $11.57 8 usually ships 1-5 days
27 372-1046 Engine support $199.52 1 usually ships 1-5 days
28 372-1047 Engine support $69.01 1 usually ships 1-5 days
29 372-1002 Washer $12.31 4 usually ships 1-5 days
30 170-6788 Lock helical spring 1/2 medium washer $12.31 2 usually ships 1-5 days
31 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
32 170-6752 Washer 3/8 lock split plated $12.31 6 usually ships 1-5 days
33 N/A Not available Call for price 8 (Washer) usually ships 3-26 days
34 372-1048 Wire $38.62 1 usually ships 1-5 days
