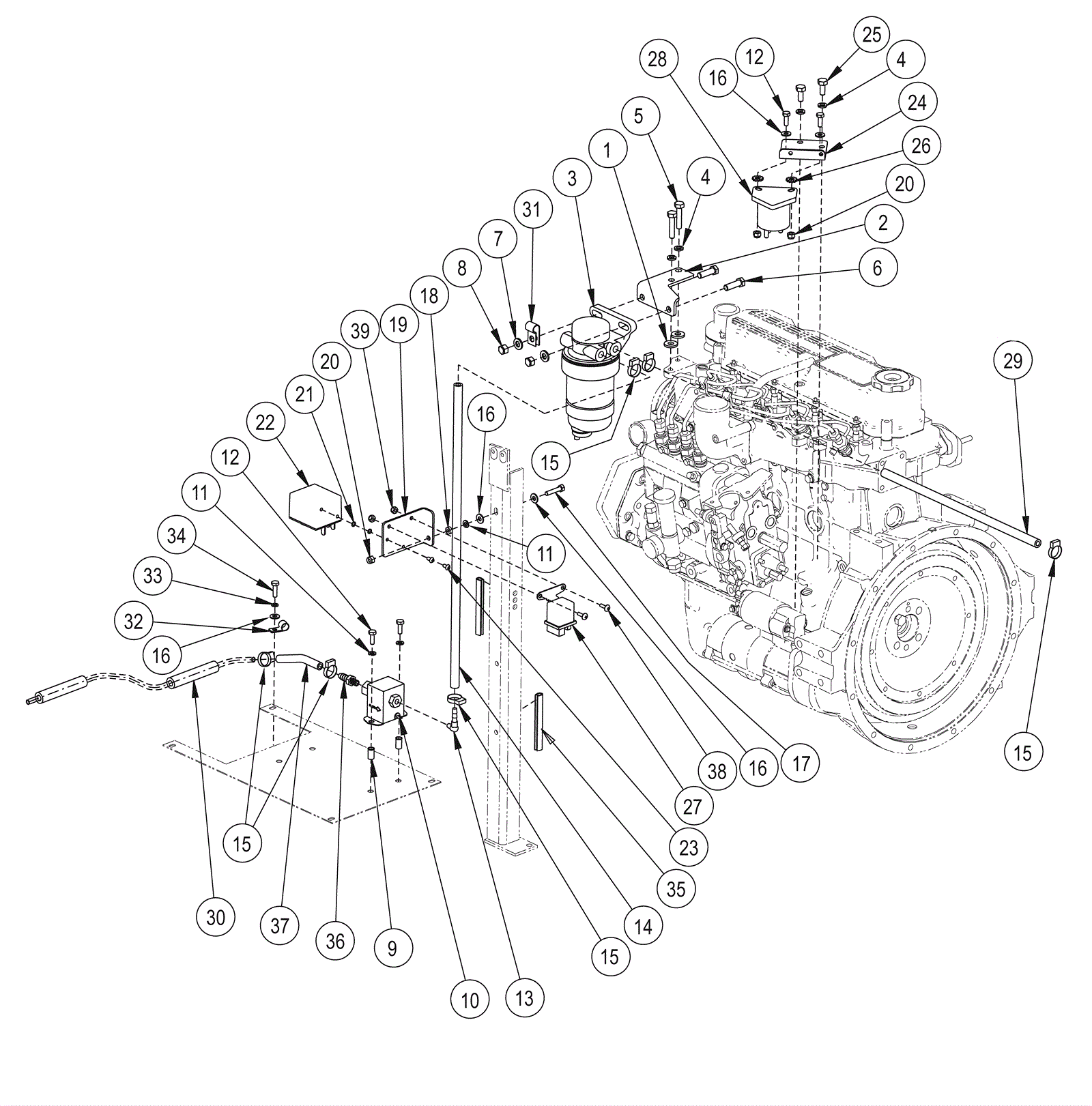

7765 Fuel Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
1 272-4896 Flat washer $12.31 2 usually ships 1-5 days
2 372-1062 Fuel filter bracket $51.32 1 usually ships 1-5 days
3 372-1063 Fuel filter assembly $627.00 1 usually ships 1-5 days
4 170-6686 Washer 5/16 lock $10.85 4 usually ships 17-28 days
5 372-1064 Screw M8-1.25 x 40mm $13.17 2 usually ships 1-5 days
6 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
7 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 2 usually ships 17-28 days
8 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
9 272-6874 Nutsert $12.31 2 usually ships 1-5 days
10 372-1065 Fuel pump $498.29 1 usually ships 1-5 days
11 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
12 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
13 372-1066 90 degree elbow barb $13.76 1 usually ships 1-5 days
14 372-1033 22 inch fuel hose $18.38 1 usually ships 1-5 days
15 172-8494 #6 hose clamp SAE $10.85 6 usually ships 1-5 days
16 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
17 272-6906 Screw 1/4-20 x 1 1/4 $13.17 1 usually ships 1-5 days
18 170-6639 Nut 1/4-20 $13.17 1 usually ships 1-5 days
19 372-1029 Bracket $40.08 1 usually ships 1-5 days
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
21 170-6836 Washer lock $13.76 2 usually ships 1-5 days
22 372-1067 Relay $582.05 1 usually ships 1-5 days
23 372-1035 Screw $10.85 2 usually ships 1-5 days
24 372-1068 Bracket $57.16 1 usually ships 1-5 days
25 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
26 372-1069 Washer 1/4-20 $12.31 2 usually ships 1-5 days
27 372-1070 Glow plug relay $658.46 1 usually ships 1-5 days
28 372-1071 Starter solenoid $143.09 1 usually ships 1-5 days
29 372-1028 Fuel hose $15.40 1 usually ships 1-5 days
30 372-1032 Hose $16.95 2 usually ships 1-5 days
31 372-3106 Clamp $6.22 1 usually ships 17-28 days
32 170-8297 Clamp $10.52 1 usually ships 17-28 days
33 372-1011 Washer 1/4 $12.31 1 usually ships 17-28 days
34 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 1 ships same day
35 372-1072 Frame edging $12.31 2 usually ships 1-5 days
36 272-6923 Felt washer $12.31 1 usually ships 1-5 days
37 372-1034 Fuel hose $15.48 1 usually ships 1-5 days
38 272-6192 Screw 10-24 x 5/8 $13.17 2 usually ships 1-5 days
39 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
