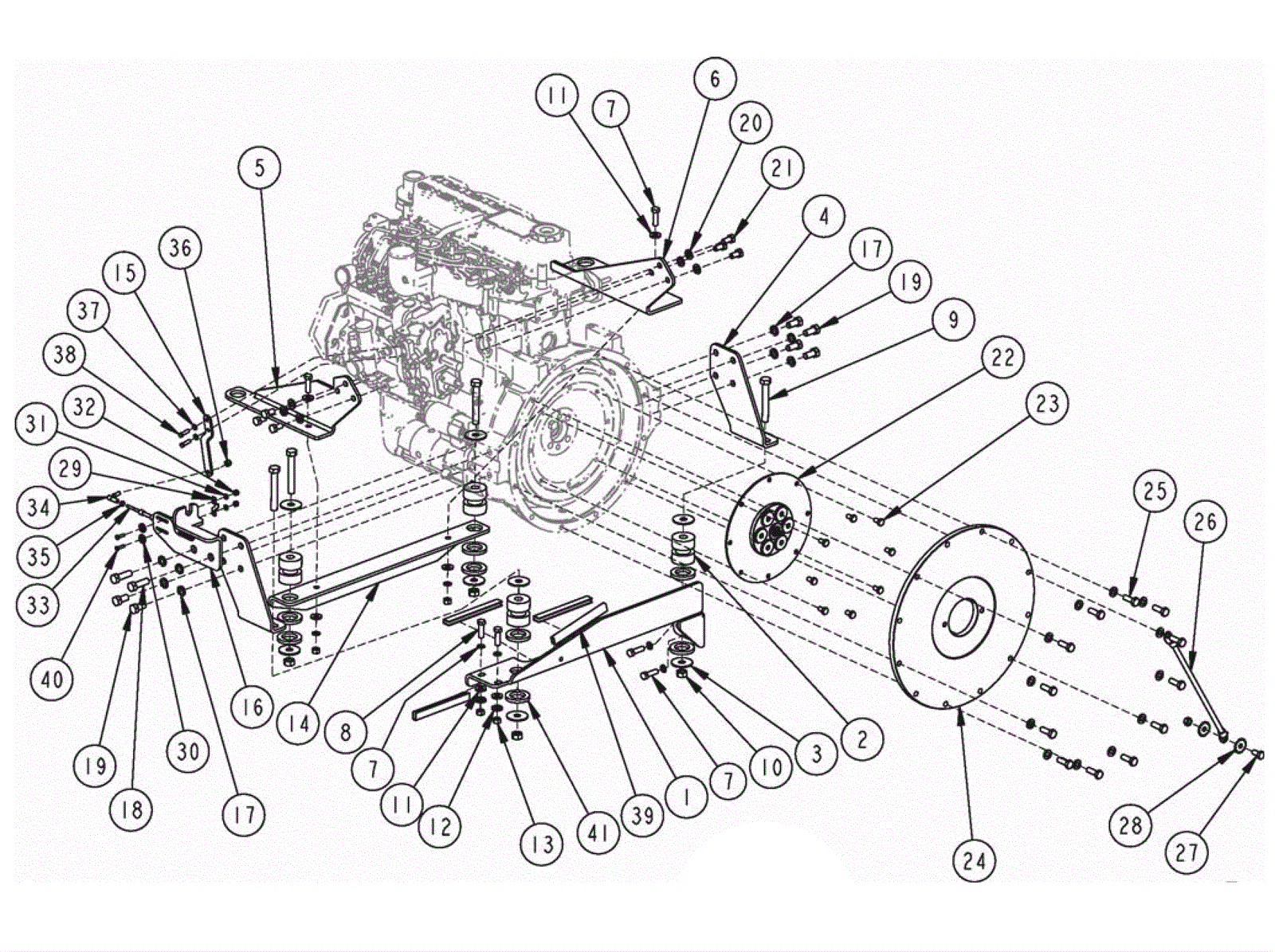

7765 Support and Throttle Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
1 372-1046 Engine support $199.52 1 usually ships 1-5 days
2 372-1001 Engine mount isolator $137.90 4 usually ships 1-5 days
3 372-1003 Spacer $11.57 8 usually ships 1-5 days
4 372-1041 Rear engine bracket $70.47 2 usually ships 1-5 days
5 372-1039 Engine mount bracket $152.05 1 usually ships 1-5 days
6 372-1040 Engine mount bracket $103.00 1 usually ships 1-5 days
7 170-6752 Washer 3/8 lock split plated $12.31 6 usually ships 1-5 days
8 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 6 ships same day
9 372-1044 Screw 1/2-20 x 3 1/2 $10.85 4 usually ships 1-5 days
10 372-1049 Nut 1/2-20 $12.31 4 usually ships 1-5 days
11 272-4896 Flat washer $12.31 6 usually ships 1-5 days
12 170-6788 Lock helical spring 1/2 medium washer $12.31 2 usually ships 1-5 days
13 999-0635 Nut 3/8-16 hex stainless steel $0.99 5 ships same day
14 372-1047 Engine support $69.01 1 usually ships 1-5 days
15 372-1073 Throttle arm $103.00 1 usually ships 1-5 days
16 272-5636 Forward and reverse cable bracket $107.50 1 usually ships 1-5 days
17 N/A Not available Call for price 8 usually ships 3-26 days
18 372-1074 Screw M12-1.75 x 40mm $13.17 2 usually ships 17-28 days
19 272-1654 Bolt 12mm-1 3/4 x 25mm $5.19 6 usually ships 1-5 days
20 372-1026 Helical spring $12.31 18 usually ships 1-5 days
21 372-1024 Screw M10-1.25 x 20mm $13.17 6 usually ships 1-5 days
22 372-1075 Engine coupling $470.58 1 usually ships 1-5 days
23 372-1000 Screw M8-1.25 x 15mm $13.17 8 usually ships 1-5 days
24 372-1076 Pump plate casting $479.38 1 usually ships 1-5 days
25 372-1077 Screw M10-1.25 x 30mm $12.31 12 usually ships 1-5 days
26 372-1048 Wire $38.62 1 usually ships 1-5 days
27 372-2116 Screw 3/8-16 x 3/4 hex head $12.31 1 usually ships 17-28 days
28 372-1043 Washer 3/8 $12.31 2 usually ships 1-5 days
29 272-5658 Conduit clamp $12.31 1 usually ships 1-5 days
30 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
31 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
32 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
33 272-5652 80 inch throttle cable $459.81 1 usually ships 1-5 days
34 372-1038 Ball joint connector $41.54 1 usually ships 1-5 days
35 999-0460 Nut 10-32 hex $0.99 1 ships same day
36 170-6783 Nut 1/4 - 28 fiber insert $12.31 1 usually ships 1-5 days
37 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
38 372-1078 Screw M6-1 x 20mm $13.17 2 usually ships 1-5 days
39 272-6883 Brush drive support edging $18.38 4 usually ships 1-5 days
40 372-1045 Screw 8-32 $10.85 2 usually ships 1-5 days
41 372-1002 Washer $12.31 8 usually ships 1-5 days
