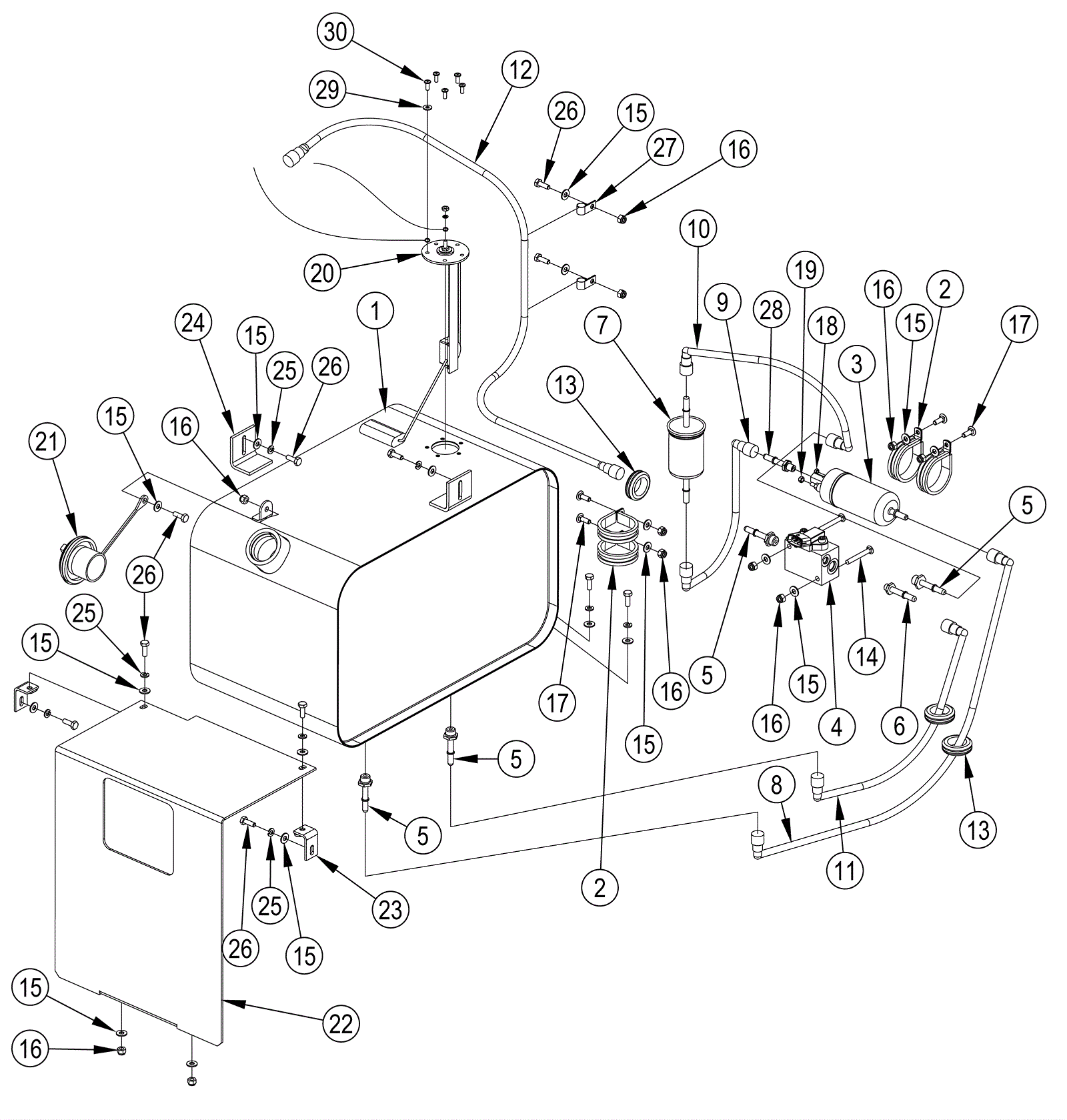

7765 Fuel Tank Assembly - Gas

#PartDescriptionPriceReqNotesAvailability
1 372-1123 Gasoline tank weldment $1,194.49 1 usually ships 1-5 days
2 372-1124 Fuel pump clamp $58.62 4 usually ships 1-5 days
3 272-6426 Fuel pump $1,500.80 1 usually ships 1-5 days
4 372-1125 Fuel temp manifold $1,118.25 1 usually ships 1-5 days
5 272-7862 Quick connect fitting $90.43 4 usually ships 1-5 days
6 372-1126 5/16 inch quick connect fitting $84.49 1 usually ships 1-5 days
7 272-6428 Fuel filter $90.43 1 usually ships 1-5 days
8 372-1127 Low permeation fuel line hose $104.61 1 usually ships 1-5 days
9 372-1128 Low permeation fuel line hose $104.61 1 usually ships 1-5 days
10 372-1129 Low permeation fuel line hose $104.61 1 usually ships 1-5 days
11 372-1130 Low permeation fuel line hose $104.61 1 usually ships 1-5 days
12 372-1131 Low permeation fuel line hose $104.61 1 usually ships 1-5 days
13 272-6885 Rubber grommet $13.76 3 usually ships 1-5 days
14 272-6986 Bolt $12.31 2 usually ships 1-5 days
15 999-0016 Washer 1/4 flat plain finish $0.99 19 ships same day
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 11 ships same day
17 272-8684 Carriage bolt $12.31 4 usually ships 1-5 days
18 372-1132 Nut M4 $7.59 1 usually ships 1-5 days
19 372-1133 Nut M5 $7.59 1 usually ships 1-5 days
20 270-0645 Fuel tank float $176.52 1 usually ships 1-5 days
21 272-7868 Fuel cap $34.14 1 usually ships 1-5 days
22 372-1017 Weldment cover $180.41 1 usually ships 1-5 days
23 372-1018 Bracket clamp $23.01 2 usually ships 1-5 days
24 372-1019 Battery clamp $15.48 2 usually ships 1-5 days
25 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
26 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 11 ships same day
27 170-8297 Clamp $10.52 2 usually ships 17-28 days
28 372-1134 Fuel pump fitting $57.16 1 usually ships 1-5 days
30 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 5 ships same day
