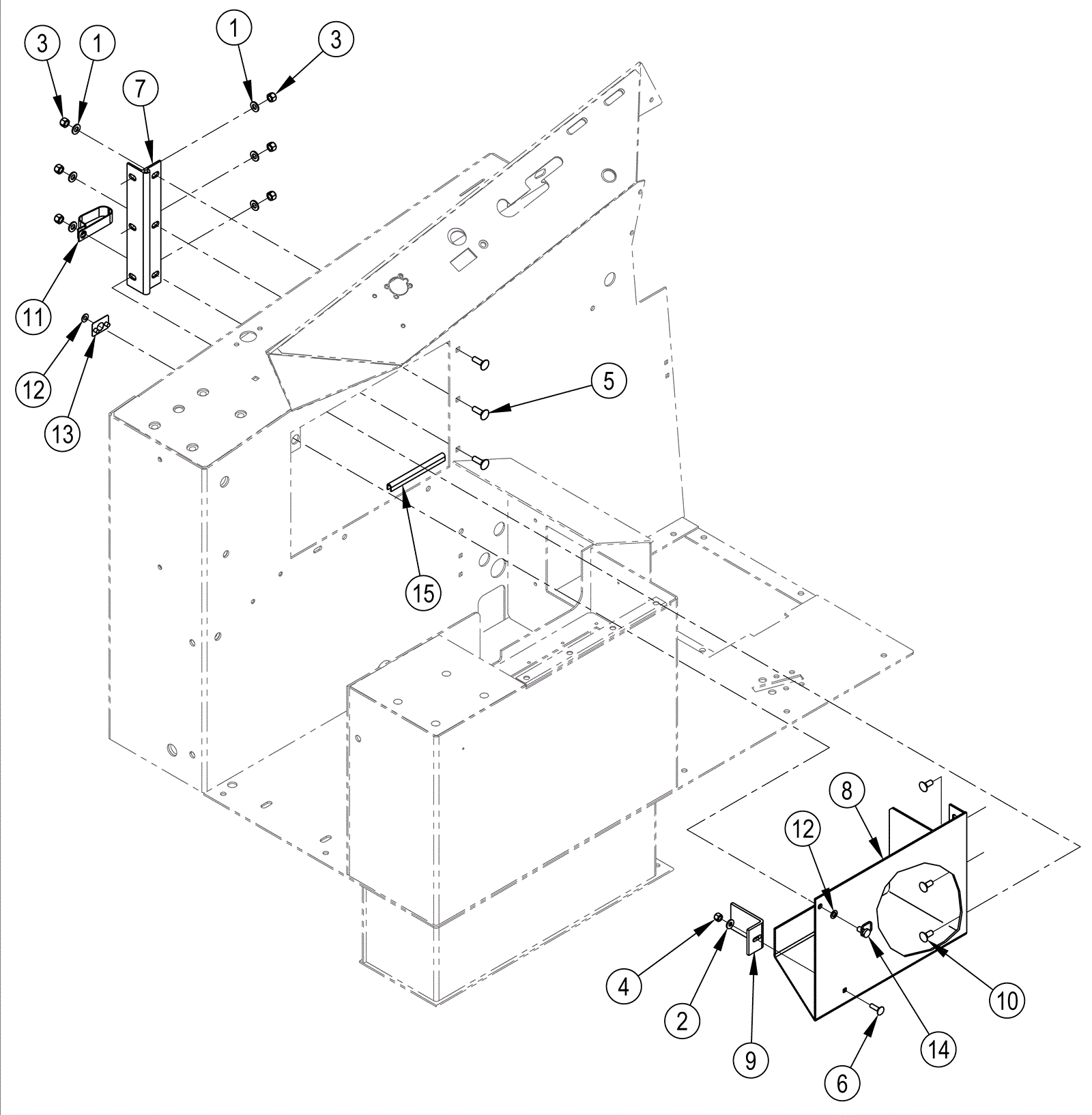

Battery Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
5 272-5974 Screw 5/16-18 x 1 carriage head SS $12.31 3 usually ships 1-5 days
6 272-8684 Carriage bolt $12.31 1 usually ships 1-5 days
7 272-5975 Battery access door hinge $80.16 1 usually ships 1-5 days
8 272-5976 Battery access door $152.05 1 usually ships 1-5 days
9 272-5977 Fuel tank clamp $15.48 1 usually ships 1-5 days
10 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 3 usually ships 1-5 days
11 272-7769 3/4 inch double wire clamp $12.31 1 usually ships 1-5 days
12 272-5978 Washer $12.31 2 usually ships 1-5 days
13 272-5979 U clip screw $34.14 1 usually ships 1-5 days
14 272-5980 Fastener $30.79 1 usually ships 1-5 days
15 170-6799 Edging $12.31 1 usually ships 1-5 days
