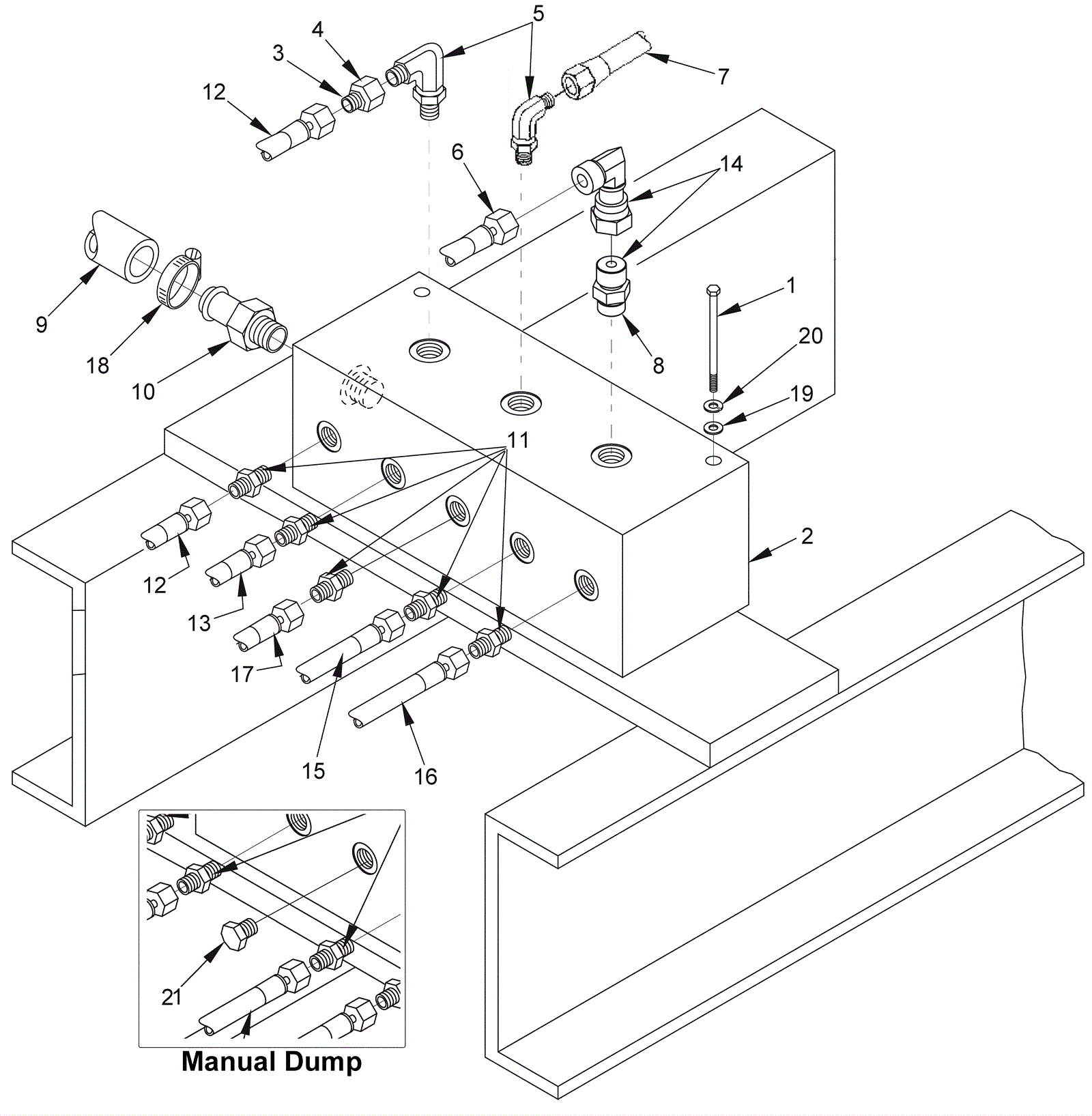

7765 Return Manifold and Fittings Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1503 Screw 1/4-20 x 3 hex head socket stainless steel $2.43 2 usually ships 1-5 days
2 272-5946 Return manifold $643.69 1 usually ships 1-5 days
3 272-5947 O-ring reducer $40.08 1 usually ships 1-5 days
4 272-5948 Reducer nut $12.31 1 usually ships 1-5 days
5 272-5665 90 degree elbow $75.67 2 usually ships 1-5 days
6 272-5949 Hose $229.88 1 usually ships 1-5 days
7 272-5950 Hose $169.11 1 usually ships 1-5 days
8 272-5951 Check valve $199.52 1 usually ships 1-5 days
9 272-5933 Hose $110.55 1 usually ships 1-5 days
10 272-5919 Straight hose barb fitting $64.53 1 usually ships 1-5 days
11 272-4729 Straight connector fitting $13.17 5 usually ships 17-28 days
12 272-5910 Hose $131.95 1 usually ships 1-5 days
13 272-5668 Hose $147.59 1 usually ships 1-5 days
14 272-5952 Check valve kit $252.90 1 usually ships 1-5 days
15 272-5953 Hose $41.54 1 usually ships 1-5 days
16 272-5954 Hose $42.98 1 usually ships 1-5 days
17 272-5955 Hose $103.00 1 (variable dump) usually ships 1-5 days
18 170-7690 Hose clamp 13/16 x 1 1/2 $11.99 1 usually ships 1-5 days
19 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
20 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
21 272-5932 Plug $10.85 1 (manual dump) usually ships 1-5 days
