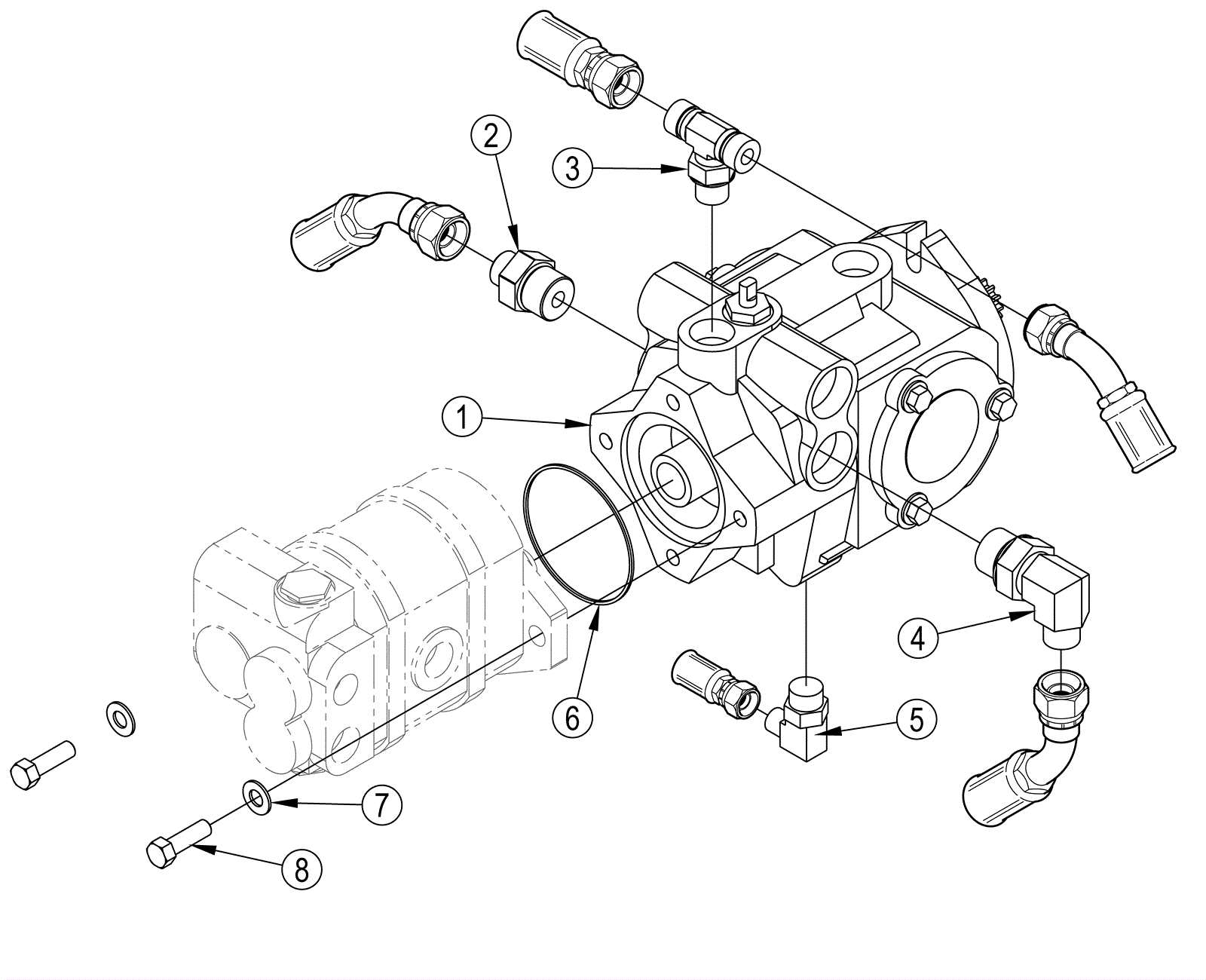

Drive Pump and Fittings Assembly - After SN 1000034942

#PartDescriptionPriceReqNotesAvailability
1 272-5940 Drive pump $3,904.67 1 usually ships 1-5 days
2 272-5934 Connector $82.32 1 usually ships 1-5 days
3 272-5937 Tee fitting $114.88 1 usually ships 1-5 days
4 272-5936 90 degree elbow $128.34 1 usually ships 1-5 days
5 272-5941 90 degree fitting $110.55 1 usually ships 1-5 days
6 272-3173 O-ring $12.31 1 usually ships 1-5 days
7 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
8 172-4373 Screw 3/8-16 x 1.25 $12.31 2 usually ships 1-5 days
N/S 272-7975 Piston pump seal kit $427.47 1 usually ships 1-5 days
N/S 272-7976 Relief valve $949.84 1 usually ships 1-5 days
