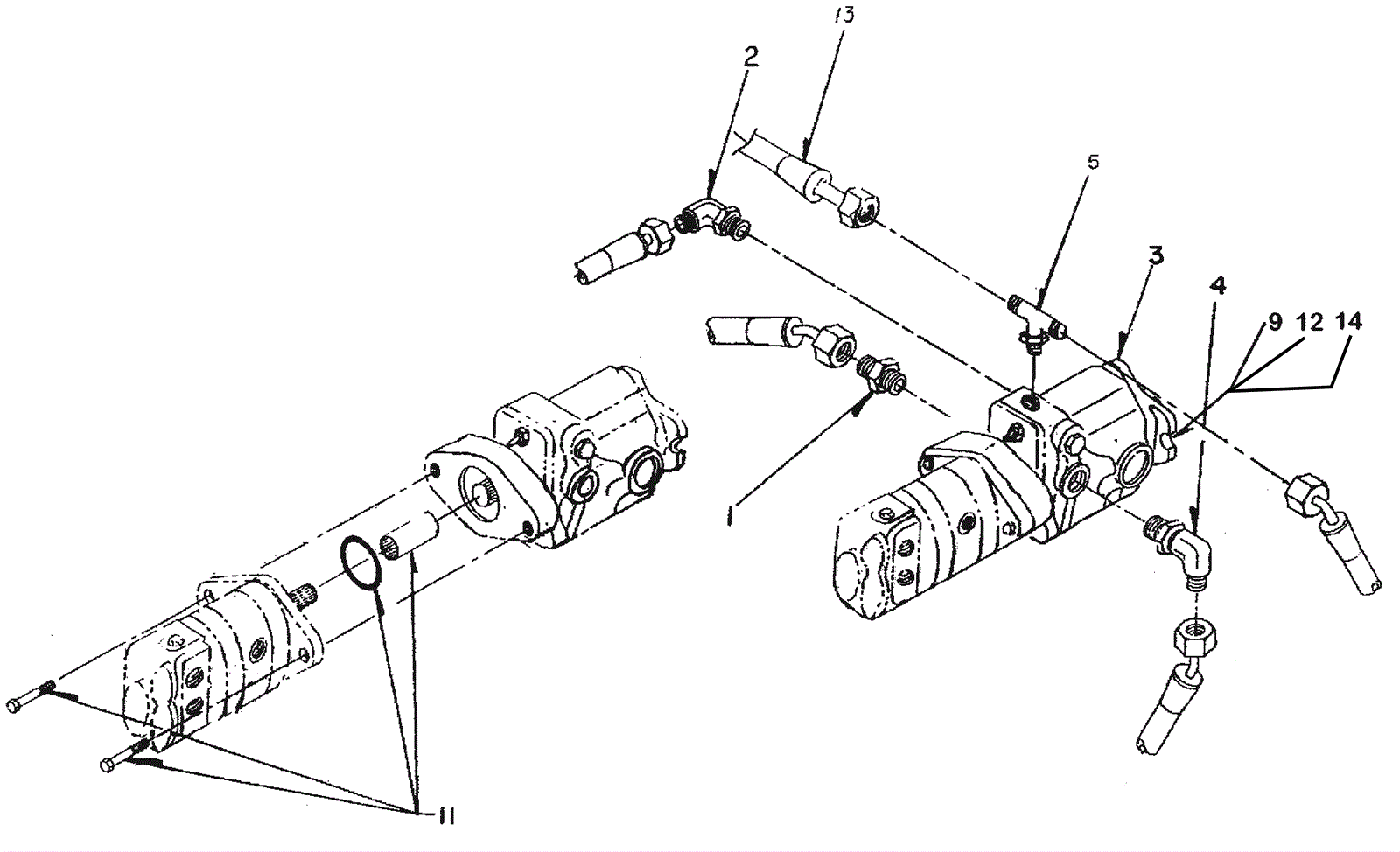

7765 Drive Pump and Fittings Assembly - Before SN 1000034942

#PartDescriptionPriceReqNotesAvailability
1 272-5934 Connector $94.81 1 usually ships 1-5 days
2 272-4727 Fitting $60.67 1 usually ships 1-5 days
3 272-5935 Drive pump (OBSOLETE) $4,280.76 1 usually ships 1-5 days
4 272-5936 90 degree elbow $147.81 1 usually ships 1-5 days
5 272-5937 Tee fitting $132.31 1 usually ships 1-5 days
9 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
11 272-5938 Pump assembly kit $132.24 1 usually ships 1-5 days
12 170-6752 Washer 3/8 lock split plated $12.89 2 usually ships 1-5 days
13 272-5939 Hose $225.10 1 usually ships 1-5 days
14 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.89 2 usually ships 13-18 days
