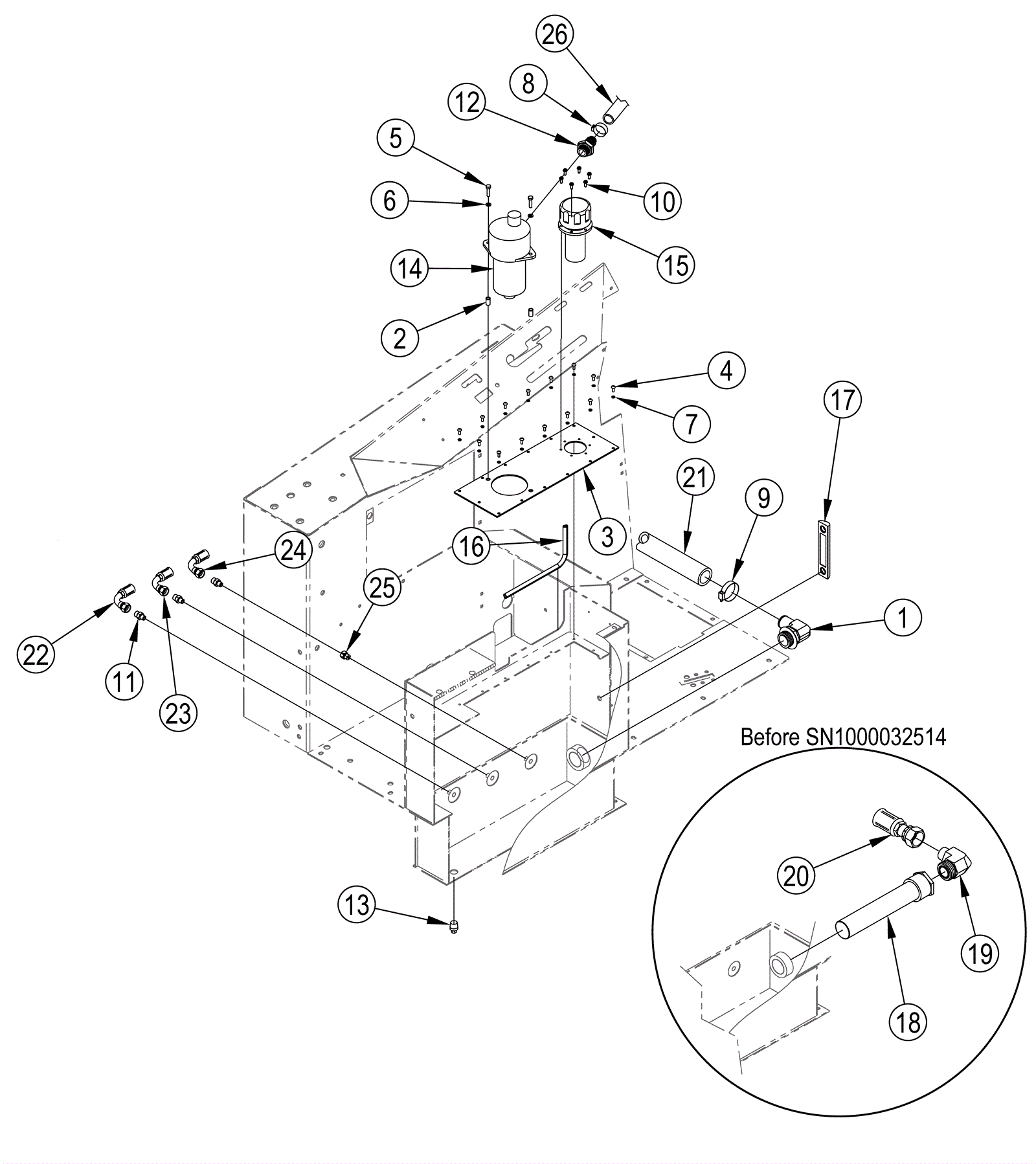

7765 Filter and Fittings Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-5916 Hydraulic elbow barb fitting $77.65 1 (after SN 1000032514) usually ships 1-5 days
2 272-6874 Nutsert $12.89 2 usually ships 1-5 days
3 272-5917 Cover $55.14 1 usually ships 1-5 days
4 170-6743 Screw 10-24 x 1/2 round head machine $13.78 14 usually ships 1-5 days
5 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 2 ships same day
6 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
7 170-6726 Washer lock $12.89 14 usually ships 1-5 days
8 170-7690 Hose clamp 13/16 x 1 1/2 $11.99 1 usually ships 1-5 days
9 172-8493 #24 hose clamp SAE $11.35 1 (after SN 1000032514) usually ships 1-5 days
10 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 6 ships same day
11 272-4729 Straight connector fitting $15.17 3 usually ships 13-18 days
12 272-5919 Straight hose barb fitting $67.56 1 usually ships 1-5 days
13 272-5920 Plug $32.56 1 usually ships 1-5 days
14 272-5921 Return filter $497.64 1 usually ships 1-5 days
16 272-5923 Edging $12.89 12 usually ships 1-5 days
17 272-5924 Fluid level gauge $249.19 1 usually ships 1-5 days
18 272-5925 Strainer $273.28 1 (before SN 1000032513) usually ships 1-5 days
19 272-5926 Fitting $232.99 1 (before SN 1000032513) usually ships 1-5 days
20 272-5927 Hose $344.77 1 (before SN 1000032513) usually ships 1-5 days
21 272-5928 Hose $112.55 1 (after SN 1000032514) usually ships 1-5 days
22 272-5929 Hose $103.32 1 usually ships 1-5 days
23 272-5930 Hose $184.81 1 usually ships 1-5 days
24 272-5931 Hose $144.38 1 usually ships 1-5 days
25 272-5932 Plug $11.35 1 (manual dump only) usually ships 1-5 days
26 272-5933 Hose $115.74 1 usually ships 1-5 days
