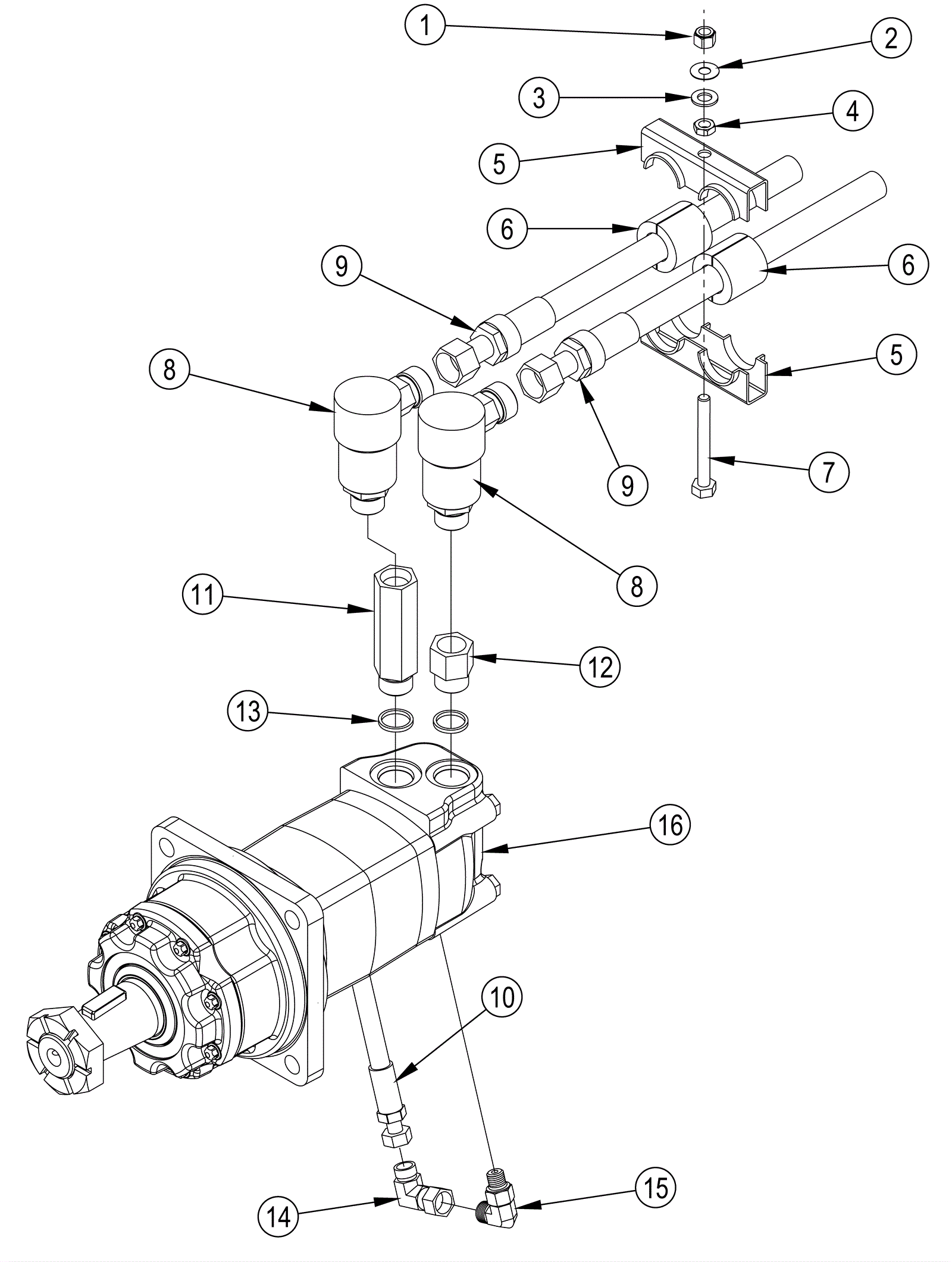

7765 Rear Wheel Motor and Fittings Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
2 272-4925 Spring washer $10.85 1 usually ships 1-5 days
3 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
4 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
5 272-5907 Hose clamp $19.98 1 usually ships 1-5 days
6 272-5908 Split hose bushing $13.76 2 usually ships 1-5 days
7 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
8 272-4999 Swivel fitting $284.00 2 usually ships 1-5 days
9 272-5909 Hose $192.01 2 usually ships 1-5 days
10 272-5910 Hose $131.95 1 usually ships 1-5 days
11 272-4982 Hydraulic motor adapter $65.97 1 (after SN 1000032514) usually ships 1-5 days
12 272-4991 Reducer o-ring $10.85 1 (after SN 1000032514) usually ships 1-5 days
13 272-4997 O-ring $10.85 2 (after SN 1000032514) usually ships 1-5 days
14 272-5000 Swivel elbow fitting $23.01 1 (after SN 1000032514) usually ships 1-5 days
15 272-4850 90 degree elbow $46.00 1 (after SN 1000032514) usually ships 1-5 days
16 272-4987 Wheel motor $3,139.44 1 (after SN 1000032514) usually ships 1-5 days
N/S 272-4984 Key $55.56 1 (after SN 1000032514) usually ships 1-5 days
N/S 272-4988 Nut $147.59 1 (after SN 1000032514) usually ships 1-5 days
N/S 272-4989 Seal kit $133.53 1 (after SN 1000032514) usually ships 17-28 days
N/S 272-5911 Fitting $130.88 1 (before SN 1000032513) usually ships 1-5 days
N/S 272-5912 Fitting $86.76 1 (before SN 1000032513) usually ships 1-5 days
N/S 272-5913 Seal $13.17 2 (before SN 1000032513) usually ships 1-5 days
N/S 272-4729 Straight connector fitting $13.17 1 (before SN 1000032513) usually ships 17-28 days
N/S 272-5914 Wheel motor kit $3,368.63 1 (before SN 1000032513) usually ships 1-5 days
N/S 272-4986 Shaft seal kit $144.53 1 (before SN 1000032513) usually ships 1-5 days
N/S 272-5915 Shaft seal $143.09 1 (before SN 1000032513) usually ships 1-5 days
N/S 272-4985 Motor seal kit $268.38 1 (before SN 1000032513) usually ships 1-5 days
