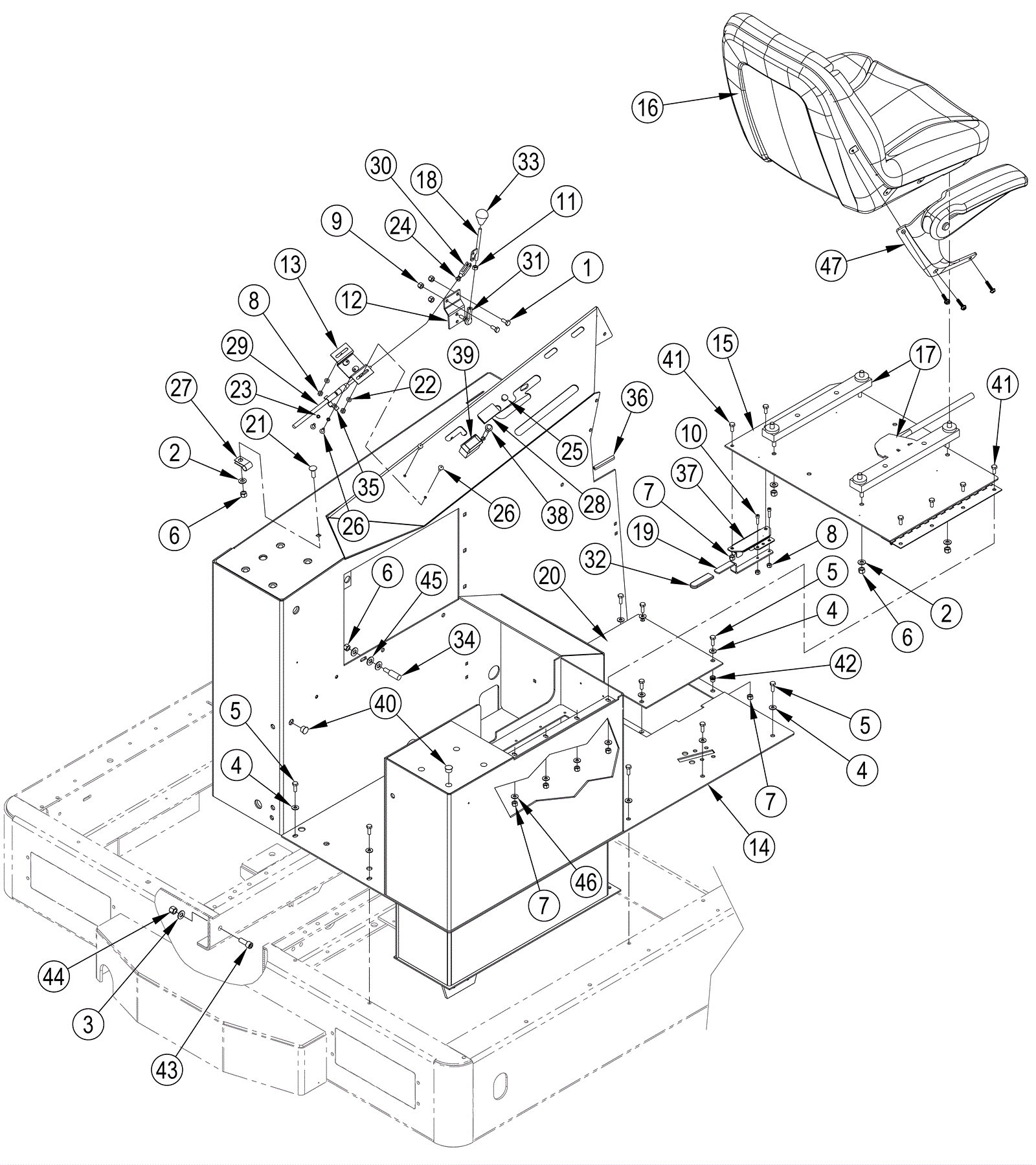

7765 Operator Compartment Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 (used on diesel model) ships same day
2 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
3 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
4 999-0123 Washer 1/4 SAE flat zinc plated $0.99 14 ships same day
5 272-1596 Bolt 1/4-20 x 3/4 hex head lock $13.76 10 usually ships 1-5 days
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 10 ships same day
8 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 4 ships same day
9 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 3 ships same day
10 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 2 ships same day
11 172-4974 Nut 1/4-28 hex machine $12.31 1 usually ships 1-5 days
12 272-5642 Throttle control bracket $37.05 1 (used on diesel model) usually ships 1-5 days
13 272-5643 Throttle cable bracket $55.56 1 (used on diesel model) usually ships 1-5 days
14 272-5644 Drive compartment $2,985.95 1 usually ships 1-5 days
15 272-5645 Cover weldment $268.38 1 usually ships 1-5 days
16 272-5641 Seat $398.17 1 (replaces 272-7645) usually ships 1-5 days
17 170-8321 Seat adjuster kit $222.53 1 usually ships 1-5 days
18 272-5646 Throttle control lever $192.01 1 (used on diesel model) usually ships 1-5 days
19 272-5647 Seat cover handle latch $34.87 1 usually ships 1-5 days
20 272-5648 Access panel $41.54 1 usually ships 1-5 days
21 170-8401 Bolt 5/16 - 18 x 1 carriage $13.17 1 (used on diesel model) usually ships 1-5 days
22 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
23 170-6726 Washer lock $12.31 2 usually ships 1-5 days
24 999-0460 Nut 10-32 hex $0.99 1 ships same day
25 272-5649 Plastic plug (OBSOLETE) $7.70 1 (used on diesel model) usually ships 1-5 days
26 272-5650 Screw 10-24 x 1 truss head $13.17 4 usually ships 1-5 days
27 372-3106 Clamp $6.22 1 (used on diesel model) usually ships 17-28 days
28 272-5651 Sealed panel switch plug $13.76 1 (used on diesel model) usually ships 1-5 days
29 272-5652 80 inch throttle cable $459.81 1 (used on diesel model) usually ships 1-5 days
30 272-5653 Clevis $131.95 1 (used on diesel model) usually ships 1-5 days
31 272-5654 Rod end $116.47 1 (used on diesel model) usually ships 1-5 days
32 272-5655 Latch grip $13.76 1 usually ships 1-5 days
33 272-5656 Solution control knob $23.01 1 (used on diesel model) usually ships 1-5 days
34 272-5657 Striker pin $69.01 1 usually ships 1-5 days
35 272-5658 Conduit clamp $12.31 1 (used on diesel model) usually ships 1-5 days
36 272-5659 Brake link edging $12.31 1 usually ships 1-5 days
37 272-5660 Rotary latch $169.11 1 usually ships 1-5 days
38 272-5661 Mil light indicator $29.23 1 (used on gasoline and LPG models) usually ships 1-5 days
39 272-5662 High current switch body $40.08 1 (used on gasoline and LPG models) usually ships 1-5 days
40 170-6832 Plug $12.31 1 usually ships 1-5 days
41 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 6 ships same day
42 272-5664 Nut 1/4-20 insert (OBSOLETE) $7.59 4 usually ships 1-5 days
43 172-4879 Screw 3/8-16 x 1 socket head $12.31 1 usually ships 1-5 days
44 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
45 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 6 usually ships 17-28 days
46 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
47 272-5640 Right hand arm rest kit $90.71 1 (used with 272-5641) usually ships 1-5 days
48 272-5663 Actuator throttle $12.31 1 (used on gasoline and LPG models) usually ships 1-5 days
