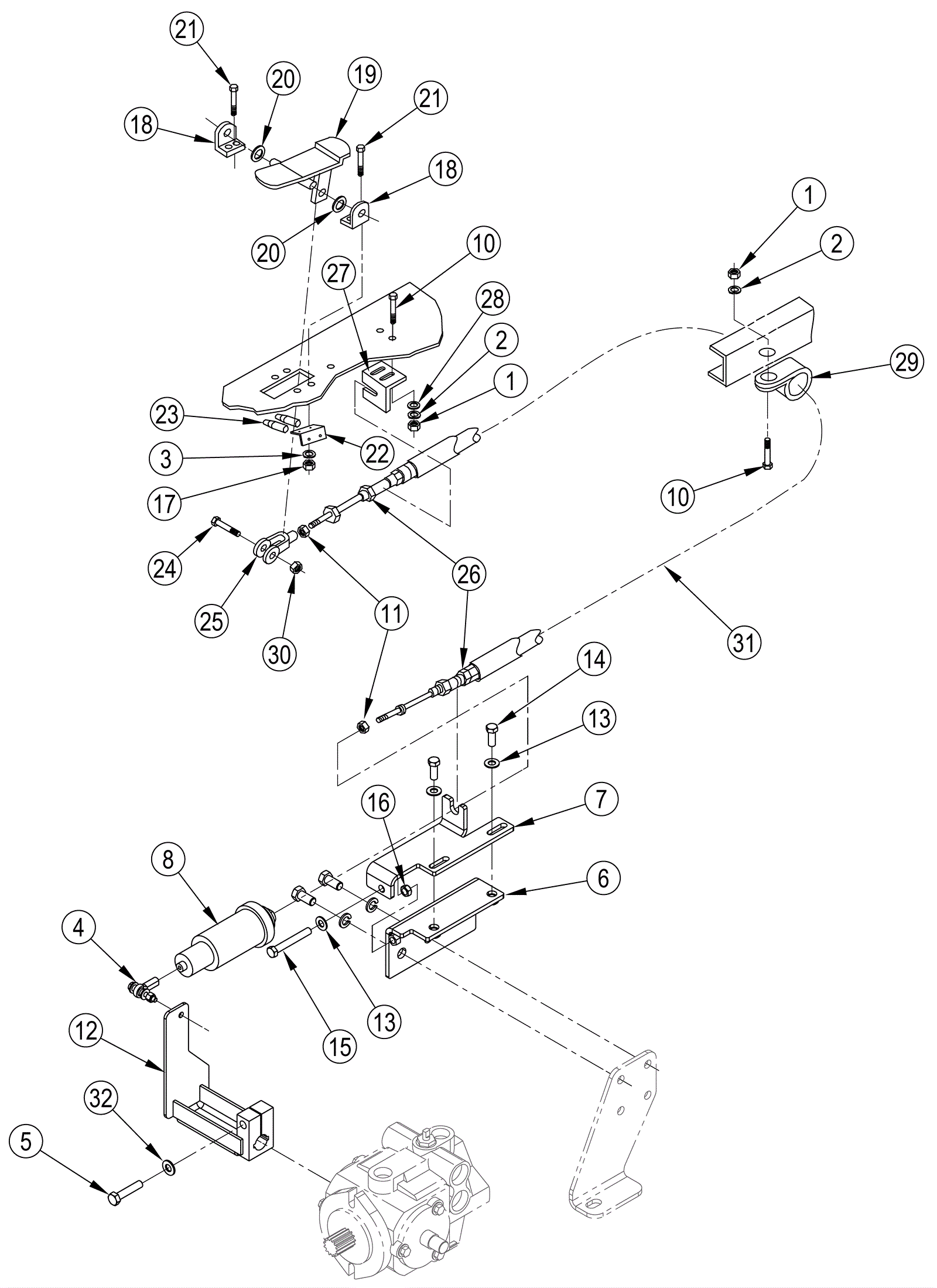

7765 Diesel Forward and Reverse Control Assembly - After SN 1000034942

#PartDescriptionPriceReqNotesAvailability
1 170-6639 Nut 1/4-20 $13.17 3 usually ships 1-5 days
2 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
3 170-6686 Washer 5/16 lock $10.85 2 usually ships 17-28 days
4 272-7642 Rod end throttle kit $84.49 1 usually ships 17-28 days
5 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
6 272-5638 Pintle arm plate $78.58 1 usually ships 1-5 days
7 272-5639 Pintle arm adjuster $37.05 1 usually ships 17-28 days
8 272-7635 Hydroback $352.17 1 usually ships 1-5 days
10 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 5 ships same day
11 170-6781 Nut 1/4 - 28 $13.17 4 usually ships 1-5 days
12 272-5623 Pintle arm weldment $268.38 1 usually ships 1-5 days
13 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
14 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
15 181-0032 Screw 3/8 hex cap $12.31 1 usually ships 1-5 days
16 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
17 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
18 272-5624 Foot pedal mount bracket $29.23 2 usually ships 1-5 days
19 272-5625 Foot pedal $103.00 1 usually ships 1-5 days
20 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 2 usually ships 17-28 days
21 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 4 usually ships 1-5 days
22 272-5626 Foot pedal switch bracket $23.01 1 usually ships 1-5 days
23 272-5627 Low dump hopper switch $400.09 2 usually ships 1-5 days
24 272-5632 Shoulder screw $10.85 1 usually ships 1-5 days
25 272-5631 Clevis $35.60 1 usually ships 1-5 days
26 272-5617 Forward and reverse control cable $536.05 1 usually ships 1-5 days
27 272-5630 Cable mounting bracket $24.60 1 usually ships 1-5 days
28 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
29 170-8297 Clamp $10.52 1 usually ships 17-28 days
30 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 1 ships same day
31 272-4899 Insulating sleeve $41.54 1 usually ships 1-5 days
32 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
N/S 272-5628 B-type sensor connector $53.88 1 usually ships 1-5 days
