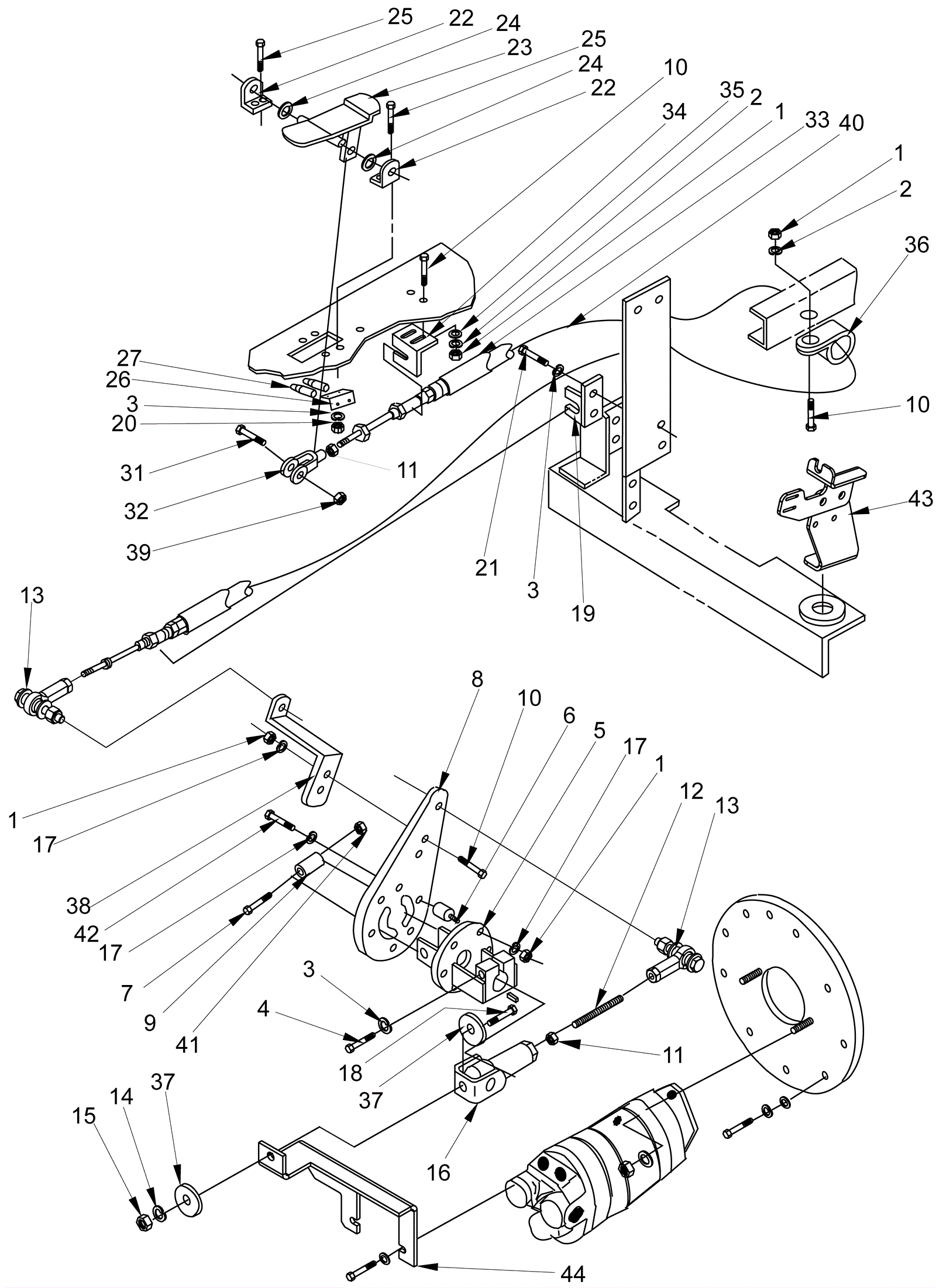

7765 Diesel Forward and Reverse Control Assembly - Before SN 1000034942

#PartDescriptionPriceReqNotesAvailability
1 170-6639 Nut 1/4-20 $13.17 11 usually ships 1-5 days
2 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
3 170-6686 Washer 5/16 lock $10.85 5 usually ships 17-28 days
4 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
5 272-5613 Transmission arm $918.74 1 usually ships 1-5 days
6 272-5614 Isolator $24.60 6 usually ships 1-5 days
7 170-8245 Screw 1/4 - 20 x 2 1/4 hex head cap $12.31 1 usually ships 1-5 days
8 272-5633 Transmission arm plate $57.32 1 usually ships 1-5 days
9 272-5616 Transmission arm spacer $24.60 1 usually ships 1-5 days
10 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 5 ships same day
11 170-6781 Nut 1/4 - 28 $13.17 4 usually ships 1-5 days
12 170-6778 Centering control adjustment rod $21.86 1 usually ships 1-5 days
13 272-7642 Rod end throttle kit $84.49 2 usually ships 17-28 days
14 170-6788 Lock helical spring 1/2 medium washer $12.31 1 usually ships 1-5 days
15 272-5634 Nut 1/2-13 $12.31 1 usually ships 1-5 days
16 170-6780 Control centering $505.68 1 usually ships 1-5 days
17 372-1011 Washer 1/4 $12.31 14 usually ships 17-28 days
18 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 1 ships same day
19 272-4996 Cup bearing $95.66 1 (centering control bracket) usually ships 1-5 days
20 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
21 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
22 272-5624 Foot pedal mount bracket $29.23 2 usually ships 1-5 days
23 272-5625 Foot pedal $103.00 1 usually ships 1-5 days
24 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 2 usually ships 17-28 days
25 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 4 usually ships 1-5 days
26 272-5626 Foot pedal switch bracket $23.01 1 usually ships 1-5 days
27 272-5627 Low dump hopper switch $400.09 2 usually ships 1-5 days
31 272-5632 Shoulder screw $10.85 1 usually ships 1-5 days
32 272-5631 Clevis $35.60 1 usually ships 1-5 days
33 272-5617 Forward and reverse control cable $536.05 1 usually ships 1-5 days
34 272-5629 Cable mounting bracket $15.18 1 usually ships 1-5 days
35 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
36 170-8297 Clamp $10.52 1 usually ships 17-28 days
37 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
38 272-5635 Transmission arm $44.58 1 usually ships 1-5 days
39 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 1 ships same day
40 272-4899 Insulating sleeve $41.54 1 usually ships 1-5 days
41 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
42 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 6 ships same day
43 272-5636 Forward and reverse cable bracket $107.50 1 usually ships 1-5 days
44 272-5637 Hydroback bracket $111.99 1 usually ships 1-5 days
N/S 272-5628 B-type sensor connector $53.88 1 usually ships 1-5 days
