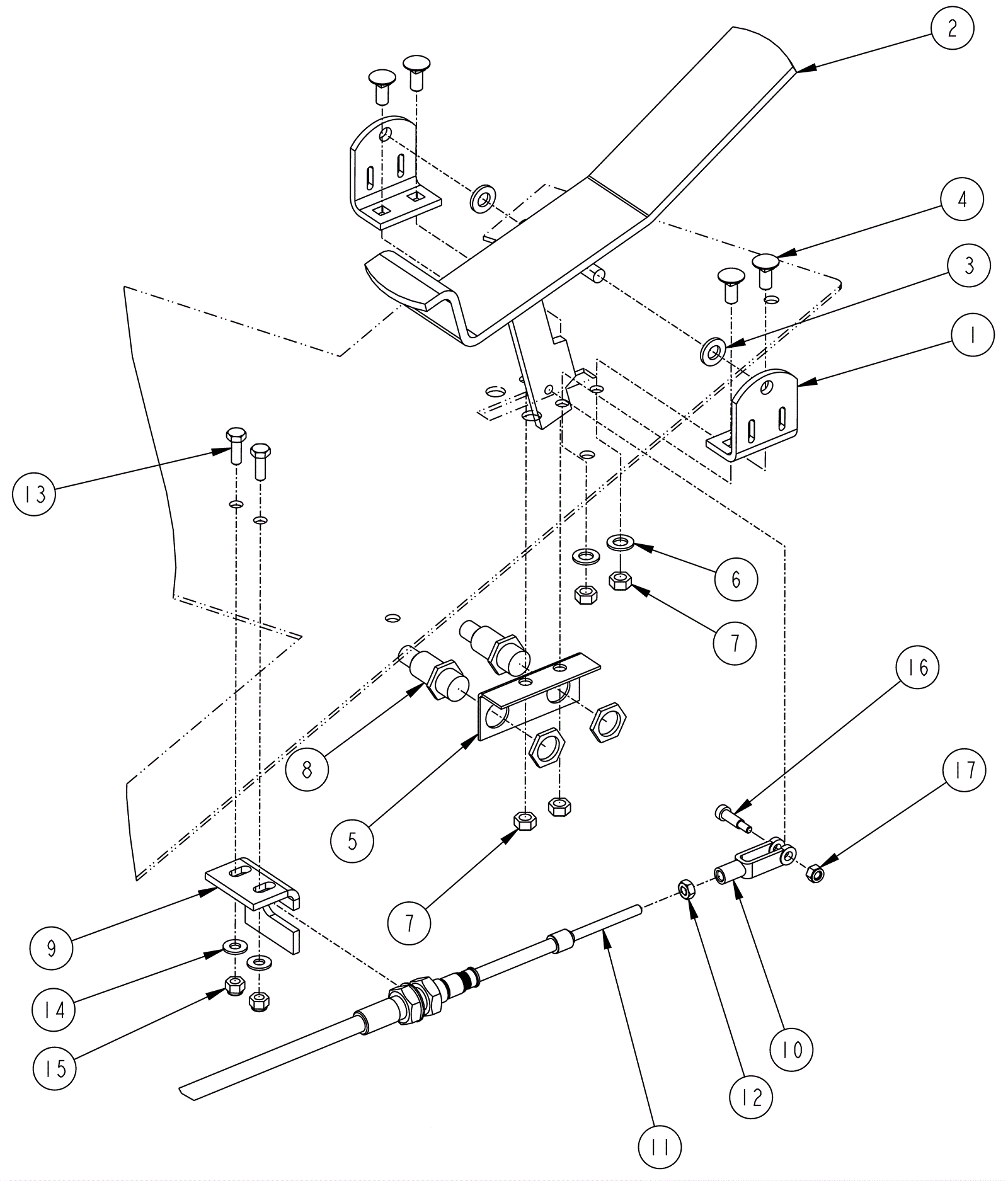

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-5624
|
Foot pedal mount bracket |
$29.23
|
2 |
|
usually ships 1-5 days |
2 |
272-5625
|
Foot pedal |
$103.00
|
1 |
|
usually ships 1-5 days |
3 |
170-6782
|
Washer 3/4 x 25/64 x 3/32 flat |
$12.31
|
2 |
|
usually ships 17-28 days |
4 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
$0.99
|
4 |
|
usually ships 1-5 days |
5 |
272-5626
|
Foot pedal switch bracket |
$23.01
|
1 |
|
usually ships 1-5 days |
6 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
2 |
|
ships same day |
7 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
4 |
|
ships same day |
8 |
272-5627
|
Low dump hopper switch |
$400.09
|
2 |
|
usually ships 1-5 days |
9a |
272-5629
|
Cable mounting bracket |
$15.18
|
1 |
(used on machines before SN 1000034942) |
usually ships 1-5 days |
9b |
272-5630
|
Cable mounting bracket |
$24.60
|
1 |
(used on machines after SN 1000034942) |
usually ships 1-5 days |
10 |
272-5631
|
Clevis |
$35.60
|
1 |
|
usually ships 1-5 days |
11 |
272-5617
|
Forward and reverse control cable |
$536.05
|
1 |
|
usually ships 1-5 days |
12 |
170-6781
|
Nut 1/4 - 28 |
$13.17
|
1 |
|
usually ships 1-5 days |
13 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
14 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
2 |
|
ships same day |
15 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
2 |
|
ships same day |
16 |
272-5632
|
Shoulder screw |
$10.85
|
1 |
|
usually ships 1-5 days |
17 |
999-0199
|
Nut 10-24 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
N/S |
272-5628
|
B-type sensor connector |
$53.88
|
1 |
(harness connector) |
usually ships 1-5 days |
