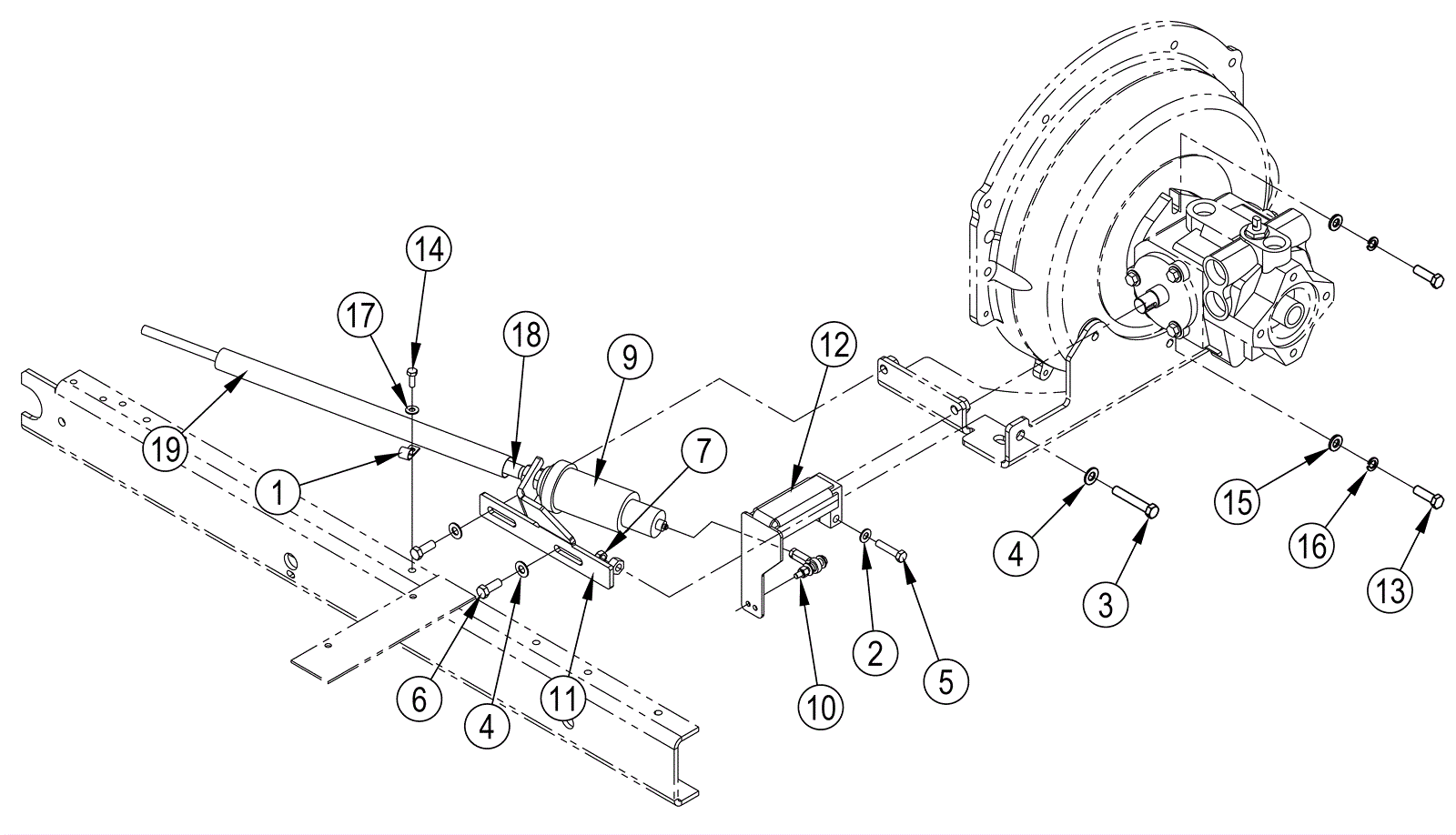

7765 Forward and Reverse Control Assembly - After SN 1000034942

#PartDescriptionPriceReqNotesAvailability
1 170-8297 Clamp $10.52 1 usually ships 17-28 days
2 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
3 999-0834 Screw 3/8-16 x 2 1/4 hex head plain finish $0.99 1 ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
5 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
6 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
7 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
9 272-7635 Hydroback $352.17 1 usually ships 1-5 days
10 272-7642 Rod end throttle kit $84.49 1 usually ships 17-28 days
11 272-5622 Pintle adjuster $87.54 1 usually ships 1-5 days
12 272-5623 Pintle arm weldment $268.38 1 usually ships 1-5 days
13 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
14 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
15 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 1 usually ships 17-28 days
16 170-6752 Washer 3/8 lock split plated $12.31 2 usually ships 1-5 days
17 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
18 272-5617 Forward and reverse control cable $536.05 1 usually ships 1-5 days
19 272-5620 Reflective sleeve $24.60 1 usually ships 1-5 days
