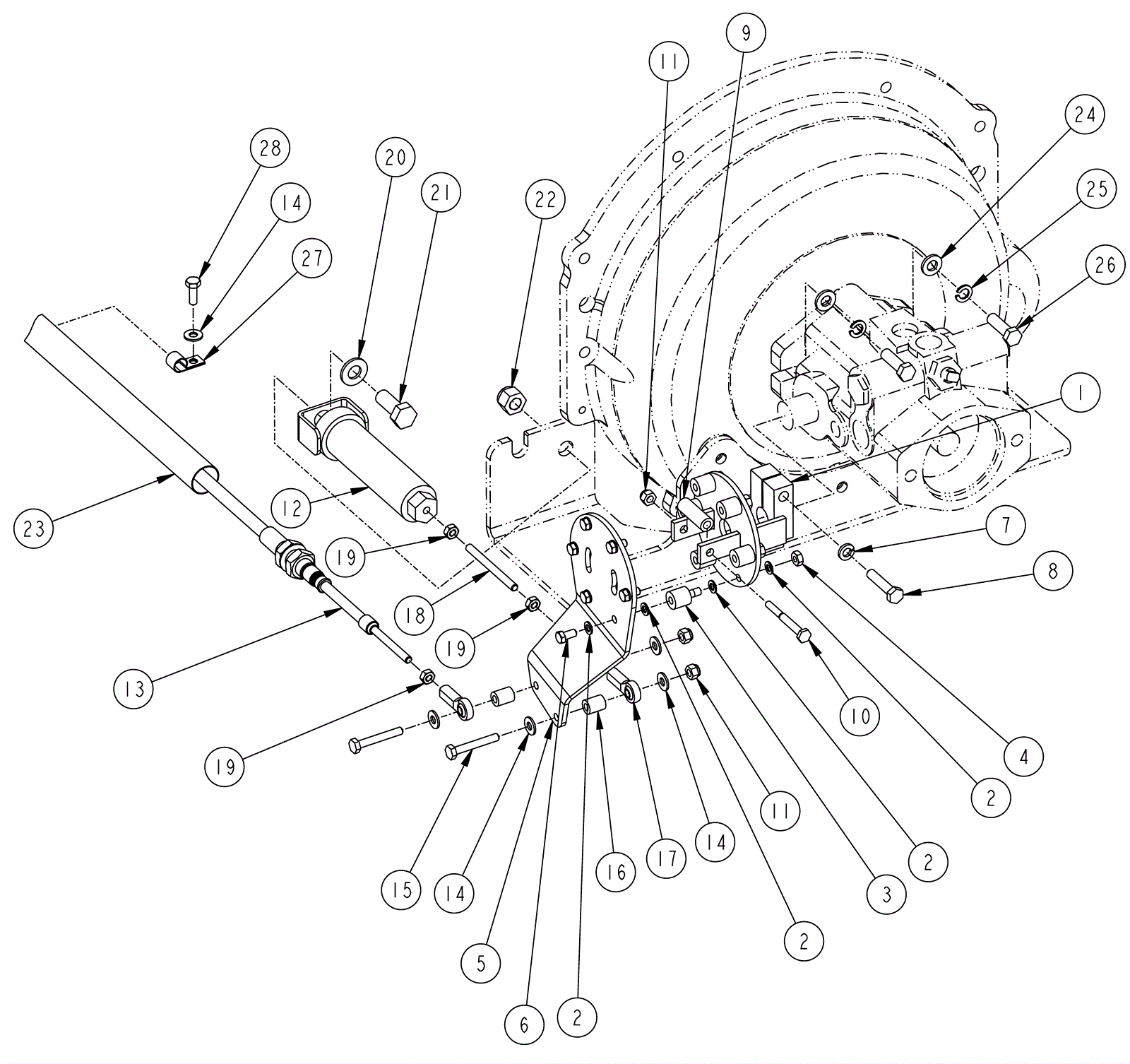

7765 Forward and Reverse Control Assembly - Before SN 1000034942

#PartDescriptionPriceReqNotesAvailability
1 272-5613 Transmission arm $918.74 1 usually ships 1-5 days
2 372-1011 Washer 1/4 $12.31 24 usually ships 17-28 days
3 272-5614 Isolator $24.60 6 usually ships 1-5 days
4 170-6639 Nut 1/4-20 $13.17 6 usually ships 1-5 days
5 272-5615 Hydrostat arm plate $38.07 1 usually ships 1-5 days
6 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 6 ships same day
7 170-6686 Washer 5/16 lock $10.85 1 usually ships 17-28 days
8 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
9 272-5616 Transmission arm spacer $24.60 1 usually ships 1-5 days
10 170-8245 Screw 1/4 - 20 x 2 1/4 hex head cap $12.31 1 usually ships 1-5 days
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
12 170-6780 Control centering $505.68 1 usually ships 1-5 days
13 272-5617 Forward and reverse control cable $536.05 1 usually ships 1-5 days
14 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
15 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
16 272-5618 Spacer $12.31 2 usually ships 1-5 days
17 272-5619 Female rod end $27.64 2 usually ships 1-5 days
18 170-6778 Centering control adjustment rod $21.86 1 usually ships 1-5 days
19 170-6781 Nut 1/4 - 28 $13.17 3 usually ships 1-5 days
20 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
21 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 1 ships same day
22 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
23 272-5620 Reflective sleeve $24.60 1 usually ships 1-5 days
24 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 2 usually ships 17-28 days
25 170-6752 Washer 3/8 lock split plated $12.31 2 usually ships 1-5 days
26 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
27 170-8297 Clamp $10.52 1 usually ships 17-28 days
28 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
