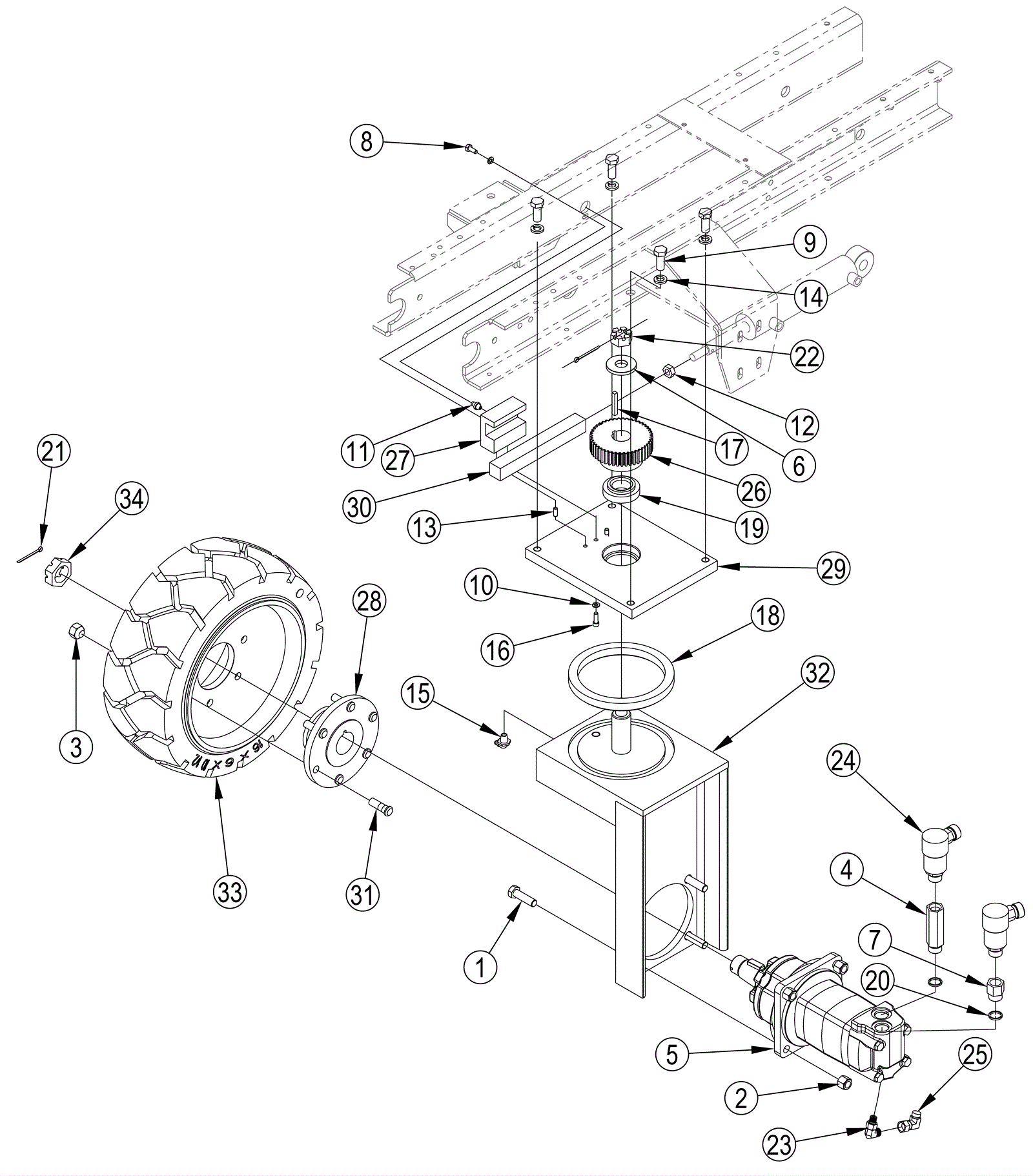

7765 Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 4 ships same day
2 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 4 ships same day
3 272-1653 Nut 1/2-20 lug $10.85 6 (part of tire and hub assembly 272-4981) usually ships 17-28 days
4 272-4982 Hydraulic motor adapter $65.97 1 usually ships 1-5 days
5a 272-4983 Wheel motor kit $3,445.73 1 (before serial number 1000032514) usually ships 1-5 days
5b 272-4987 Wheel motor $3,139.44 1 (after serial number 1000032514) usually ships 1-5 days
6 272-4990 Washer trust $21.57 1 usually ships 1-5 days
7 272-4991 Reducer o-ring $10.85 1 usually ships 1-5 days
8 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
9 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
10 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
11 272-6921 Straight lubrication fitting $13.76 1 usually ships 1-5 days
12 999-0714 Nut 1/2-20 hex jam stainless steel $1.25 1 ships same day
13 272-4992 Dowel pin $12.31 2 usually ships 1-5 days
14 170-6788 Lock helical spring 1/2 medium washer $12.31 4 usually ships 1-5 days
15 272-4993 Lubrication fitting $13.76 1 usually ships 1-5 days
16 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 1 ships same day
17 272-4994 Key $12.31 1 usually ships 1-5 days
18 272-4995 Thrust bearing $705.19 1 usually ships 1-5 days
19 272-4996 Cup bearing $95.66 1 usually ships 1-5 days
20 272-4997 O-ring $10.85 2 usually ships 1-5 days
21 272-4998 Cotter pin $12.31 2 usually ships 1-5 days
22 272-8690 Nut $5.39 1 usually ships 1-5 days
23 272-4850 90 degree elbow $46.00 1 usually ships 1-5 days
24 272-4999 Swivel fitting $284.00 2 usually ships 1-5 days
25 272-5000 Swivel elbow fitting $23.01 1 usually ships 1-5 days
26 272-5600 Rear wheel spur gear $735.56 1 usually ships 1-5 days
27 272-5601 Rack guide $314.39 1 usually ships 1-5 days
28 272-5602 Drive wheel hub $590.30 1 (part of the tire and hub assembly 272-4981) usually ships 1-5 days
29 272-5603 Bearing mounting plate $1,194.49 1 usually ships 1-5 days
30 272-5604 Rack $144.83 1 usually ships 1-5 days
31 272-5605 Stud $12.31 6 (part of the tire and hub assembly 272-4981) usually ships 1-5 days
32 272-5606 Real wheel support $2,527.02 1 usually ships 1-5 days
33a 272-5607 Tire and rim assembly $2,311.11 1 (part of the tire and hub assembly 272-4981) usually ships 1-5 days
33b 272-5609 Non marking rear wheel $2,534.96 1 usually ships 1-5 days
34a 272-8690 Nut $5.39 1 (before serial number 1000032514) usually ships 1-5 days
34b 272-4988 Nut $147.59 1 (after serial number 1000032514) usually ships 1-5 days
N/S 272-4984 Key $55.56 1 (before serial number 1000032514) usually ships 1-5 days
N/S 272-4985 Motor seal kit $268.38 1 (before serial number 1000032514) usually ships 1-5 days
N/S 272-4986 Shaft seal kit $144.53 1 (before serial number 1000032514) usually ships 1-5 days
N/S 272-4984 Key $55.56 1 (after serial number 1000032514) usually ships 1-5 days
N/S 272-4988 Nut $147.59 1 (after serial number 1000032514) usually ships 1-5 days
N/S 272-4989 Seal kit $133.53 1 (after serial number 1000032514) usually ships 17-28 days
N/S 272-5609 Non marking rear wheel $2,534.96 1 usually ships 1-5 days
N/S 272-5608 Directional rear wheel kit $3,904.67 1 usually ships 1-5 days
N/S 272-5610 Rear wheel $1,192.82 1 usually ships 1-5 days
N/S 272-5611 Directional rear wheel $2,527.02 1 usually ships 1-5 days
