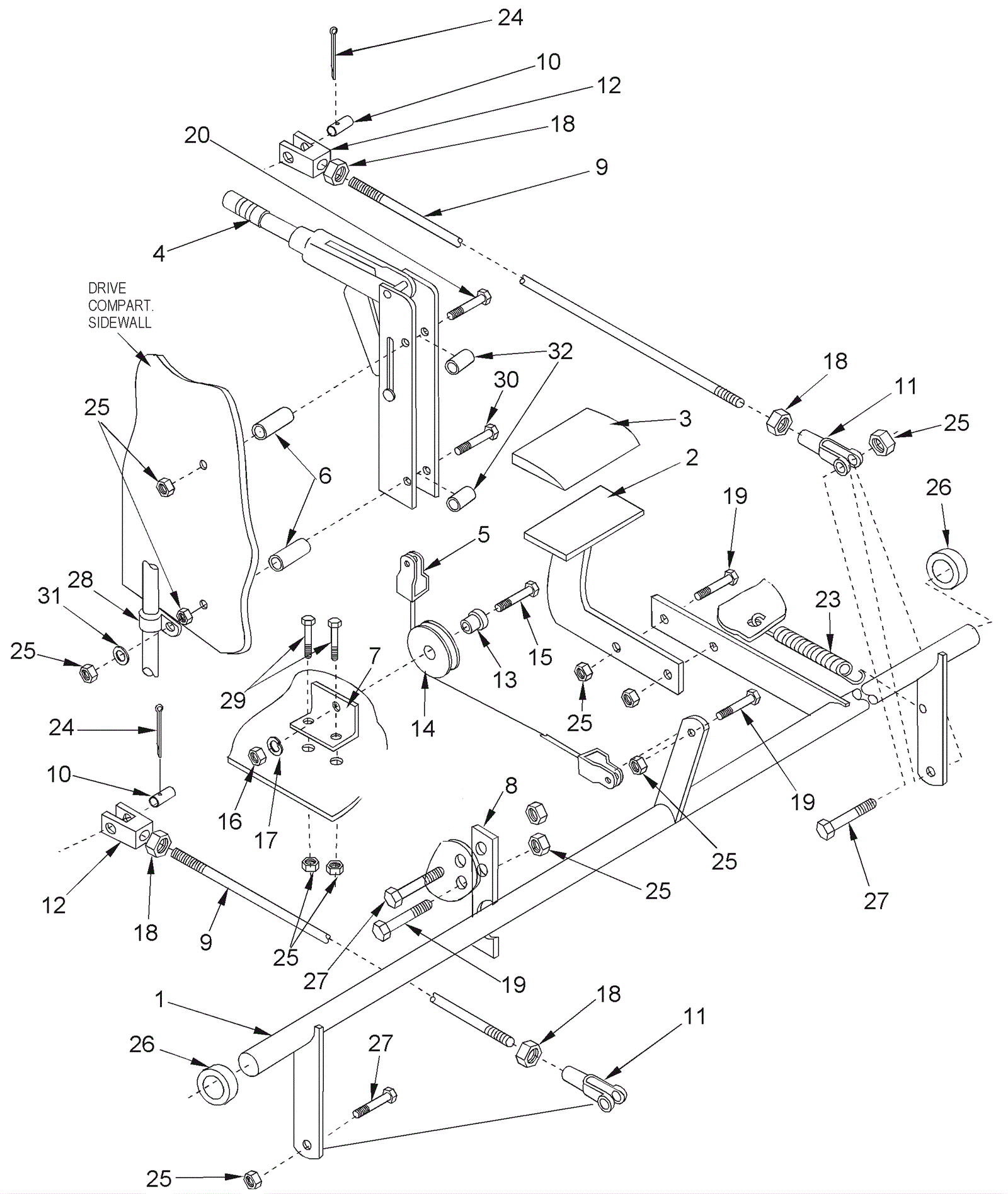

7765 Break Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-4966 Cross shaft $635.45 1 usually ships 1-5 days
2 272-4967 Brake pedal $52.67 1 usually ships 1-5 days
3 272-4968 Brake pedal pad $10.85 1 usually ships 1-5 days
4 170-6893 Parking break lever $314.39 1 usually ships 1-5 days
5 272-4969 Parking brake cable $46.00 1 usually ships 1-5 days
6 170-6904 Lever spacer $12.31 2 usually ships 1-5 days
7 272-4970 Brake pulley bracket $49.63 1 usually ships 1-5 days
8 272-4971 Brake cross shaft bracket $29.23 1 usually ships 1-5 days
9 272-4972 Brake rod $90.43 2 usually ships 1-5 days
10 272-4973 Brake clevis pin $57.16 2 usually ships 1-5 days
11 272-4974 Clevis rod $51.21 2 usually ships 1-5 days
12 272-4975 Brake pedal clevis $70.47 2 usually ships 1-5 days
13 272-4976 Pulley bushing $21.57 1 usually ships 1-5 days
14 272-4977 Pulley $55.56 1 usually ships 1-5 days
15 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 1 ships same day
16 999-0635 Nut 3/8-16 hex stainless steel $0.99 1 ships same day
17 170-6752 Washer 3/8 lock split plated $12.31 1 usually ships 1-5 days
18 999-0247 Nut 3/8-16 hex jam plain finish $0.99 4 ships same day
19 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 5 ships same day
20 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
23 170-7713 Spring $28.29 1 usually ships 17-28 days
24 272-4978 Cotter pin $9.13 2 usually ships 1-5 days
25 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 12 ships same day
26 272-4979 Collar with set screw $38.62 2 usually ships 1-5 days
27 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 3 ships same day
28 372-3106 Clamp $6.22 1 usually ships 17-28 days
29 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
30 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish $0.99 1 ships same day
31 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
32 170-6961 Spacer $12.31 2 usually ships 1-5 days
