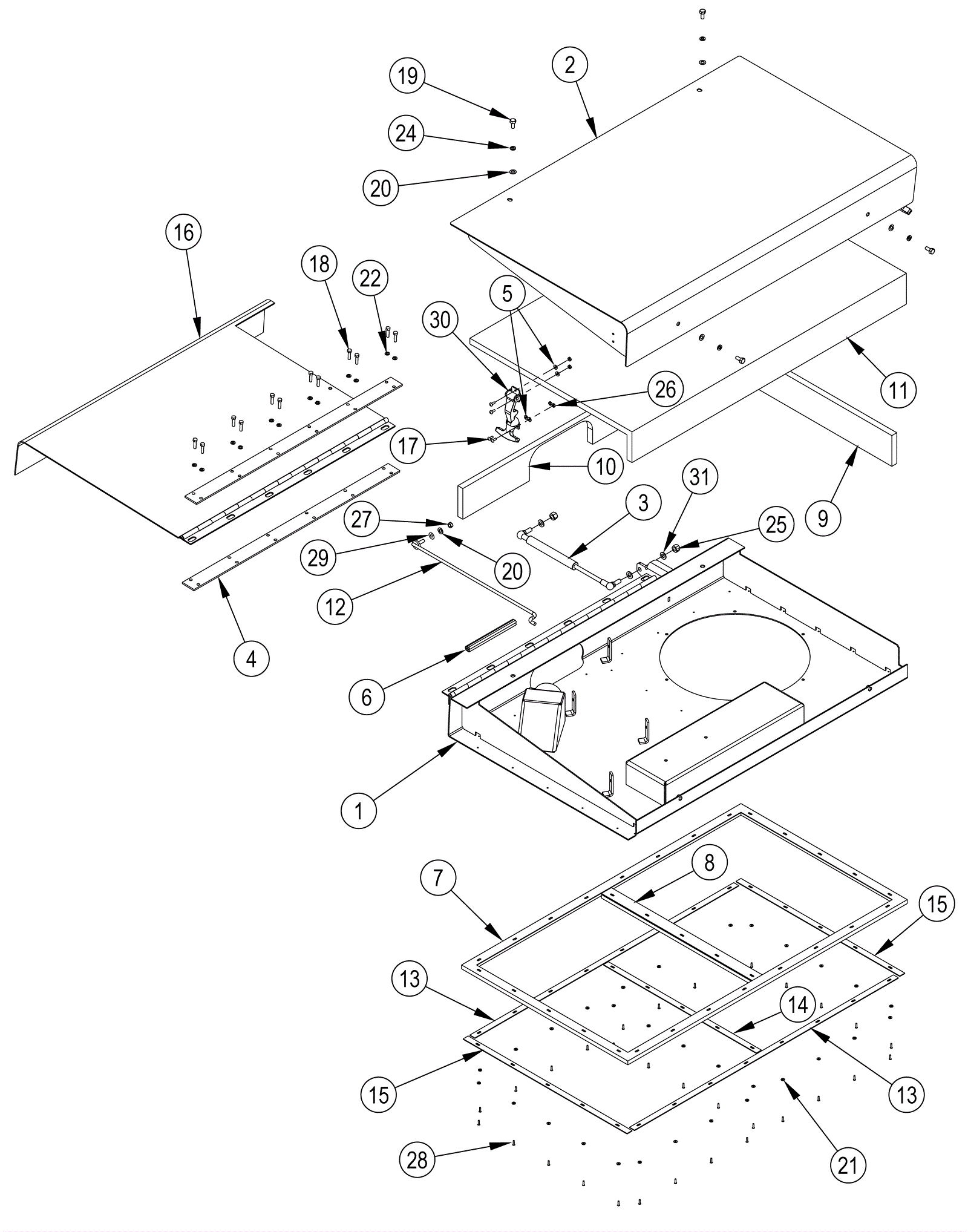

7765 Tank Lid Assembly - After December 2008

#PartDescriptionPriceReqNotesAvailability
1 272-4931 Lower weldment cover $1,440.03 1 usually ships 1-5 days
2 272-4932 Upper weldment cover $536.05 1 usually ships 1-5 days
3 272-4933 Cylinder hood $78.58 1 usually ships 1-5 days
4 272-4911 Strap $38.62 2 usually ships 1-5 days
5 272-4924 Sealing washer $10.85 8 usually ships 1-5 days
6 272-4934 Uni-grip basket $53.09 1 usually ships 1-5 days
7 272-4918 Perimeter gasket $252.90 1 usually ships 1-5 days
8 272-4916 Center section gasket $65.97 1 usually ships 1-5 days
9 272-4914 Insulation $57.16 1 usually ships 17-28 days
10 272-4913 Lower insulation cover $127.61 1 usually ships 1-5 days
11 272-4915 Insulation $612.44 1 usually ships 1-5 days
12 272-4917 Cover support rod $88.99 1 usually ships 1-5 days
13 272-4927 Gasket retainer strap $88.99 2 usually ships 1-5 days
14 272-4928 Gasket strap retainer $38.62 1 usually ships 1-5 days
15 272-4935 Recovery lid retainer strap gasket $81.60 2 usually ships 1-5 days
16 272-4909 Solution tank cover $620.68 1 usually ships 1-5 days
17 170-6743 Screw 10-24 x 1/2 round head machine $13.17 4 usually ships 1-5 days
18 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 12 ships same day
19 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
22 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
24 170-6686 Washer 5/16 lock $10.85 4 usually ships 17-28 days
25 272-4936 Nut $12.31 2 usually ships 1-5 days
26 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 8 ships same day
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
28 272-4926 Rivet $10.85 31 usually ships 1-5 days
29 272-4925 Spring washer $10.85 1 usually ships 1-5 days
30 272-4923 Latch assembly $111.99 2 usually ships 17-28 days
31 N/A Not available Call for price 3 (Flat washer 10mm) usually ships 3-26 days
