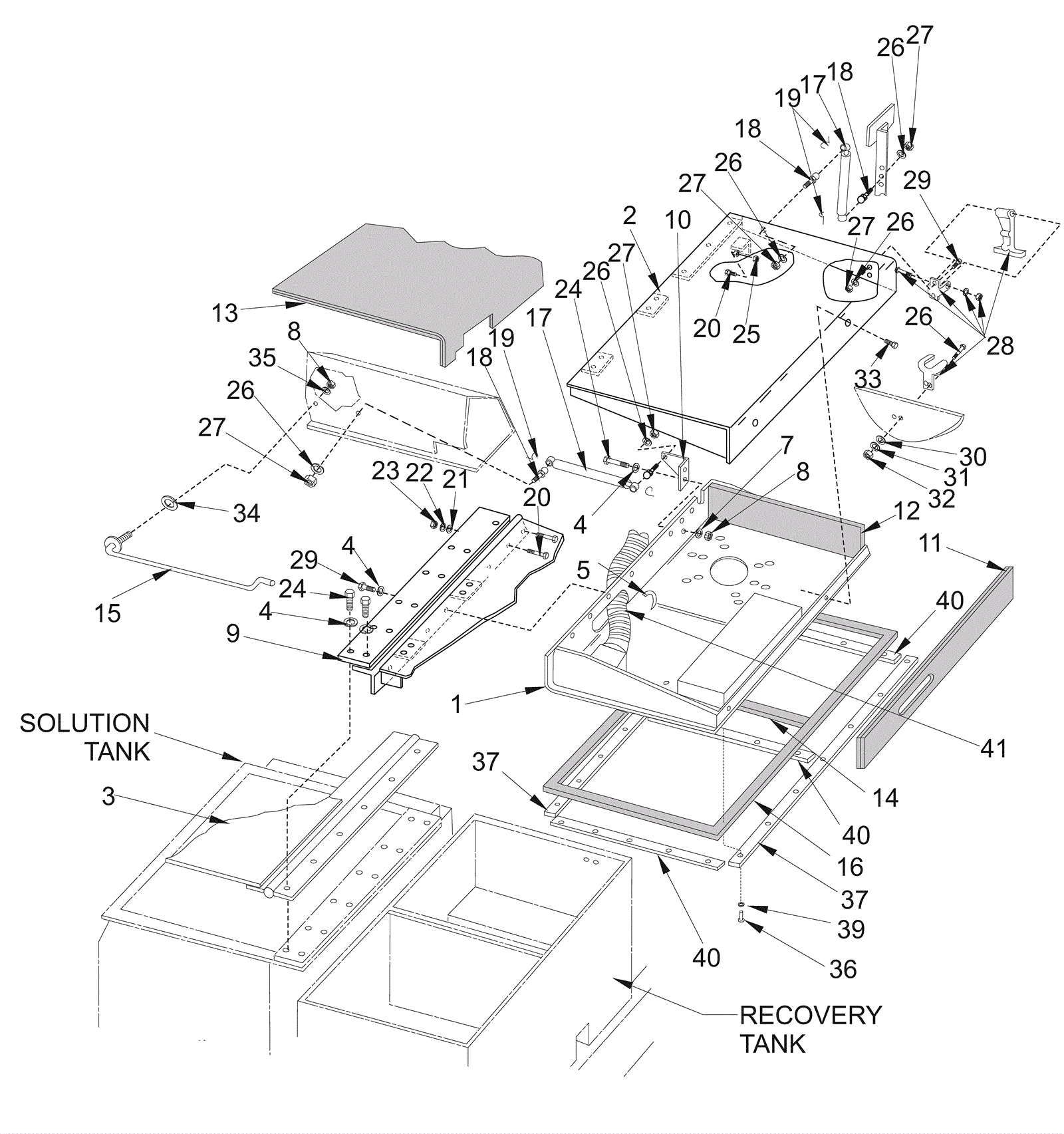

7765 Tank Lid Assembly - Before January 2009

#PartDescriptionPriceReqNotesAvailability
1 272-4907 Lower recovery tank cover $995.83 1 usually ships 1-5 days
2 272-4908 Upper recovery tank cover $489.39 1 usually ships 1-5 days
3 272-4909 Solution tank cover $620.68 1 usually ships 1-5 days
4 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
5 272-4910 Gasket $13.40 2.33 usually ships 1-5 days
6 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
7 170-6983 Washer 1 1/16 x 21/64 x 1/16 flat $12.31 6 usually ships 1-5 days
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
9 272-4911 Strap $38.62 2 usually ships 1-5 days
10 272-4912 Bracket $49.63 1 ships same day
11 272-4913 Lower insulation cover $127.61 1 usually ships 1-5 days
12 272-4914 Insulation $57.16 1 usually ships 17-28 days
13 272-4915 Insulation $612.44 1 usually ships 1-5 days
14 272-4916 Center section gasket $65.97 1 usually ships 1-5 days
15 272-4917 Cover support rod $88.99 1 usually ships 1-5 days
16 272-4918 Perimeter gasket $252.90 1 usually ships 1-5 days
17 272-4919 Gas spring $360.40 2 ships same day
18 272-4920 Stud $13.76 4 usually ships 17-28 days
19 272-4921 Clip $12.31 4 usually ships 17-28 days
21 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
22 170-6639 Nut 1/4-20 $13.17 2 usually ships 1-5 days
23 999-0383 Screw 1/4-20 x 1/2 button head socket cap plain finish $0.99 8 ships same day
24 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 14 ships same day
25 170-6871 Nut 1/2-13 $12.31 1 usually ships 1-5 days
26 170-6686 Washer 5/16 lock $10.85 8 usually ships 17-28 days
27 999-0069 Nut 5/16-18 hex $0.99 6 ships same day
28 272-4923 Latch assembly $111.99 1 usually ships 17-28 days
29 170-6743 Screw 10-24 x 1/2 round head machine $13.17 4 usually ships 1-5 days
30 272-4924 Sealing washer $10.85 2 usually ships 1-5 days
31 170-6726 Washer lock $12.31 4 usually ships 1-5 days
32 170-6741 Nut 10-24 x 3/8 x 1/8 hex machine $12.31 4 usually ships 1-5 days
33 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
34 272-4925 Spring washer $10.85 1 usually ships 1-5 days
35 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
36 272-4926 Rivet $10.85 31 usually ships 1-5 days
37 272-4927 Gasket retainer strap $88.99 2 usually ships 1-5 days
38 272-4928 Gasket strap retainer $38.62 1 usually ships 1-5 days
40 N/A Not available Call for price 2 (Gasket retainer strap) usually ships 3-26 days
41 272-4853 Vacuum hose support kit $413.78 1 usually ships 17-28 days
