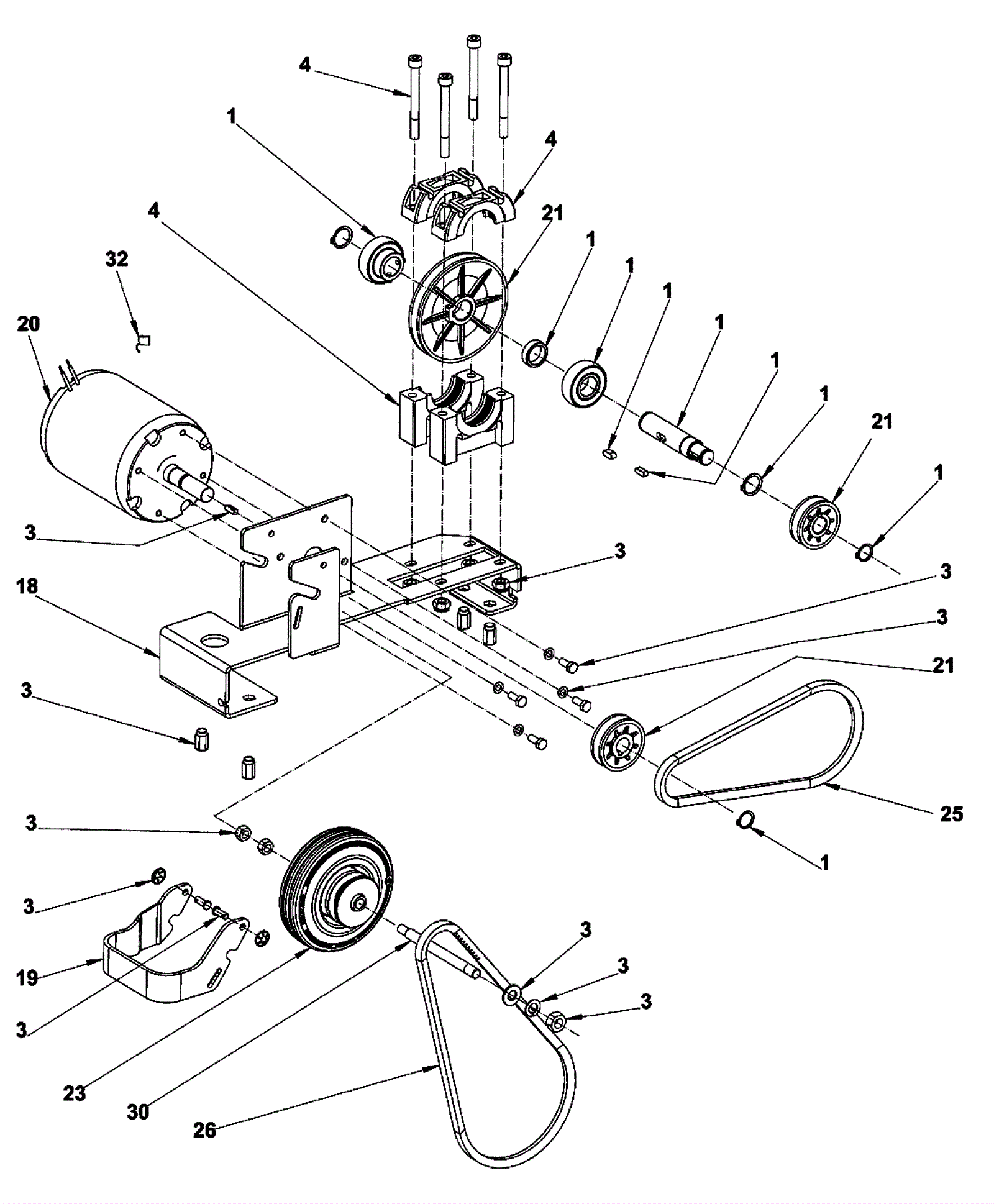

ADVANCE TERRA 28B Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8973 Shaft pulley kit $168.42 1 usually ships 13-18 days
3 272-8962 Transmission hardware kit $41.97 1 usually ships 13-18 days
4 272-8974 Bearing support kit $37.27 1 usually ships 13-18 days
18 272-8975 Motor support plate $232.99 1 usually ships 1-5 days
19 272-8976 Bracket $72.26 1 usually ships 1-5 days
20 272-8977 12V electric motor $801.96 1 usually ships 13-18 days
21 272-8978 Pulley kit $72.26 1 usually ships 13-18 days
23 272-8979 Friction wheel $192.54 1 usually ships 13-18 days
25 272-8980 Belt $34.23 1 usually ships 13-18 days
26 272-6577 Belt $64.38 1 usually ships 13-18 days
30 272-8981 Shaft $11.35 1 usually ships 13-18 days
32 172-4846 Carbon brush kit (one kit each motor) $249.19 1 usually ships 1-5 days
