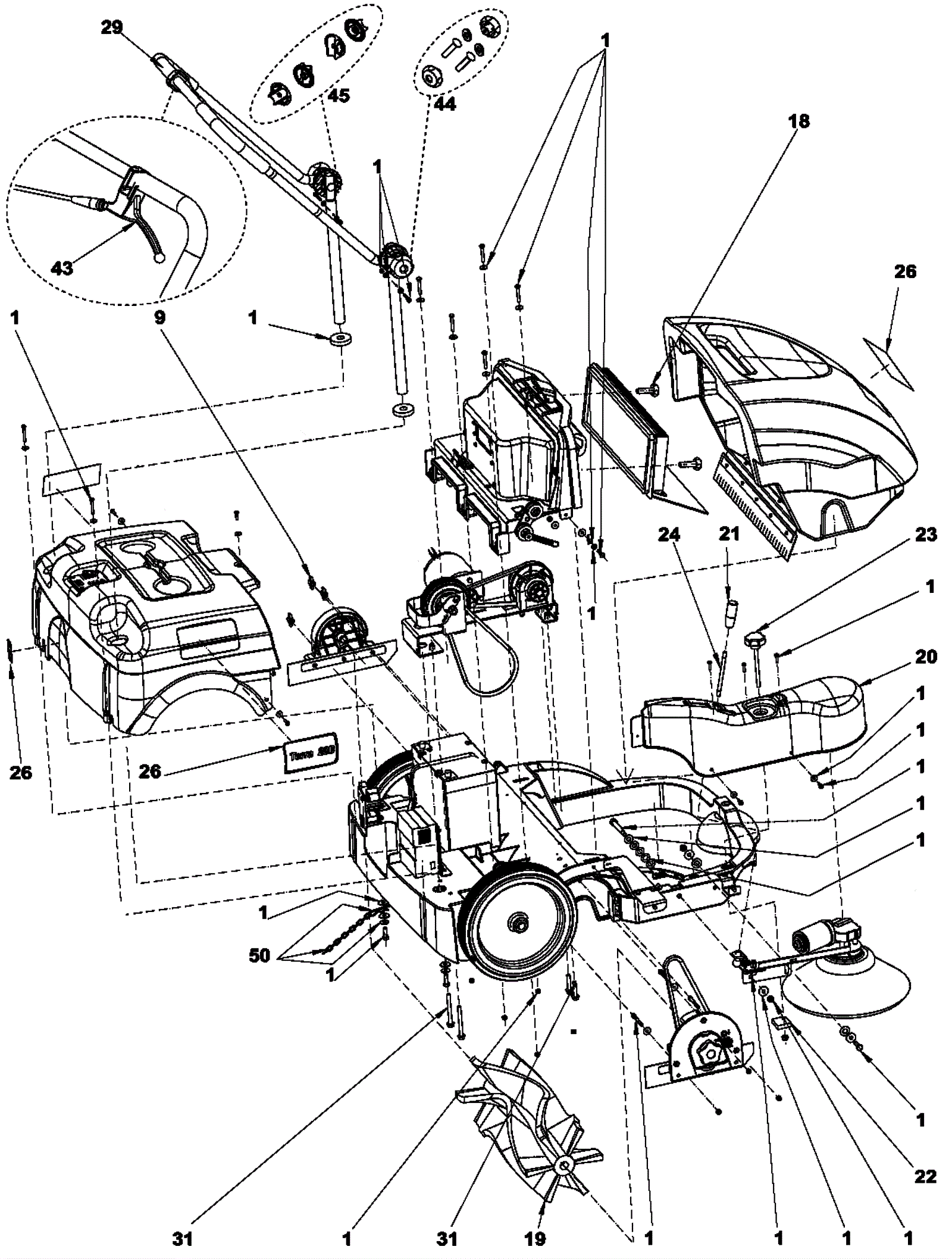

ADVANCE TERRA 28B Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8954 Main hardware kit $40.55 1 ships same day
9 272-0772 Nut M6 wing (pkg 5) $51.96 3 usually ships 13-18 days
18 272-8955 M6 handwheel $12.89 2 ships same day
19 272-8542 Main brush $168.42 1 ships same day
20 472-1331 CRANKCASE SIDE BROOM GREY PKD $50.45 1 usually ships 13-18 days
21 272-8957 Handle $15.85 1 usually ships 13-18 days
22 272-8958 Side boom adjuster block $48.17 1 usually ships 13-18 days
23 272-8959 M8 handwheel $13.78 1 usually ships 13-18 days
24 272-9602 Side broom lever $11.35 1 usually ships 13-18 days
26 272-8960 Decal kit $66.03 1 usually ships 13-18 days
29 272-8555 Complete handle $305.09 1 usually ships 1-5 days
31 272-8962 Transmission hardware kit $41.97 1 (includes 34-42) usually ships 13-18 days
43 272-7166 Cable and lever assembly $90.13 1 usually ships 13-18 days
44 272-8963 Handle fixing kit $46.67 1 usually ships 13-18 days
45 181-0896 Handle adjuster kit $93.17 1 usually ships 13-18 days
50 272-8964 Chain kit $17.74 1 usually ships 13-18 days
