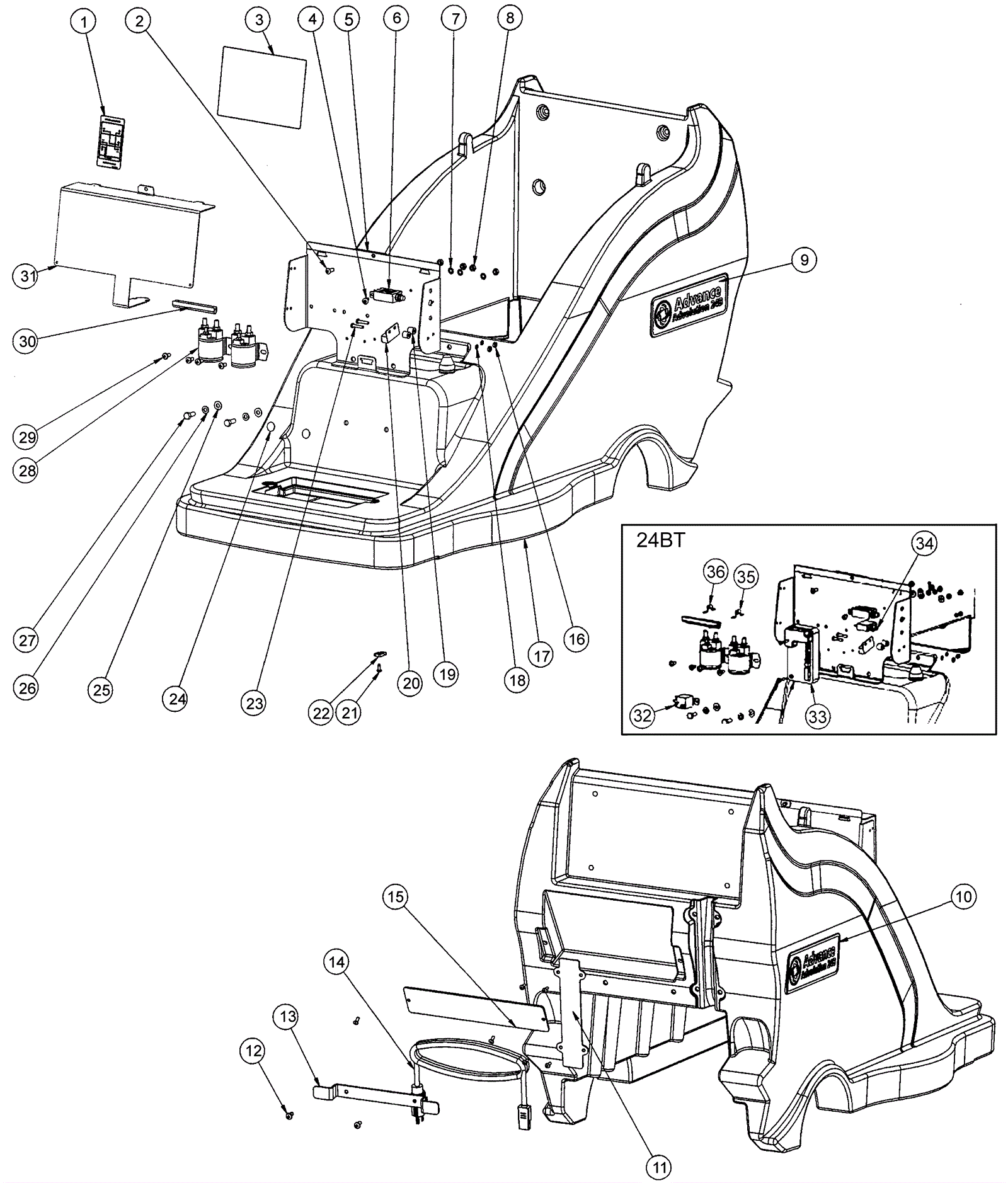

# | Part | Description | Price | Req | Notes | Availability |
1 |
272-8484
|
Battery connection decal |
$15.00
|
1 |
|
usually ships 1-5 days |
2 |
272-8481
|
Screw 1/4-20 x 5/8 socket |
$7.34
|
1 |
|
usually ships 1-5 days |
3 |
272-8483
|
Connection diagram decal |
$10.90
|
1 |
|
usually ships 1-5 days |
4 |
272-8931
|
Screw M6-1 x 10mm pan head |
$11.66
|
2 |
|
usually ships 1-5 days |
5 |
272-7425
|
Electrical plate weldment |
$28.07
|
1 |
|
ships same day |
6 |
272-8567
|
90amp circuit breaker |
$183.15
|
1 |
|
usually ships 6-18 days |
7 |
999-0017
|
Washer 1/4 external star lock |
$0.90
|
4 |
|
ships same day |
8 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
4 |
|
ships same day |
9 |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
$0.99
|
6 |
|
ships same day |
10 |
272-8933
|
Advolution 24B decal |
$8.00
|
2 |
|
usually ships 1-5 days |
11 |
272-8934
|
Harness cover |
$37.88
|
1 |
|
usually ships 1-5 days |
12 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
$1.03
|
2 |
|
ships same day |
13 |
170-7386
|
Cord wrapping bracket |
$11.66
|
1 |
|
usually ships 1-5 days |
14 |
170-7385
|
Onboard charger cord |
$28.74
|
1 |
|
usually ships 6-18 days |
15 |
272-8490
|
Retention strap (for dust bags) |
$19.09
|
1 |
|
usually ships 1-5 days |
16 |
999-0460
|
Nut 10-32 hex |
$0.90
|
2 |
|
ships same day |
17 |
272-8935
|
Advolution 24B body |
$580.00
|
1 |
|
usually ships 1-5 days |
18 |
999-0311
|
Washer #10 external star lock zinc plated |
$0.90
|
2 |
|
ships same day |
19 |
272-8936
|
Nylon spacer (OBSOLETE) |
$7.20
|
2 |
|
usually ships 1-5 days |
20 |
272-7443
|
Tilt switch |
$66.98
|
1 |
|
usually ships 6-18 days |
21 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
$0.90
|
3 |
|
ships same day |
22 |
N/A
|
Not available |
Call for price
|
3 |
(Tab screw) |
usually ships 30-32 days |
23 |
170-1463
|
Screw 10-32 x 1 |
$10.90
|
2 |
|
usually ships 1-5 days |
24 |
272-8489
|
Fastener ratchet |
$9.60
|
2 |
|
usually ships 1-5 days |
25 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
26 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
2 |
|
ships same day |
27 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
2 |
|
ships same day |
28 |
172-2805
|
36V contactor |
$97.47
|
2 |
|
ships same day |
29 |
999-0323
|
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
$0.90
|
4 |
|
ships same day |
30 |
170-7070
|
Gasket |
$10.90
|
1 |
|
usually ships 6-18 days |
31 |
272-8482
|
Front electric plate cover |
$40.72
|
1 |
|
usually ships 6-18 days |
32a |
270-0624
|
Traverse power relay |
$46.62
|
1 |
(24BT) |
usually ships 1-5 days |
32b |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
$0.90
|
1 |
(24BT) |
ships same day |
33 |
270-0623
|
36V traverse I-Drive controller |
$610.39
|
1 |
(24BT) |
usually ships 6-18 days |
34 |
991-1625
|
30amp circuit breaker |
$12.61
|
1 |
(24BT) |
ships same day |
35 |
170-0062
|
Diode |
$15.00
|
1 |
(24BT) |
usually ships 6-18 days |
36 |
270-0622
|
Avalanche diode assembly |
$78.77
|
1 |
(24BT) |
usually ships 1-5 days |
N/S |
272-8937
|
Power harness |
$135.00
|
1 |
|
usually ships 1-5 days |
