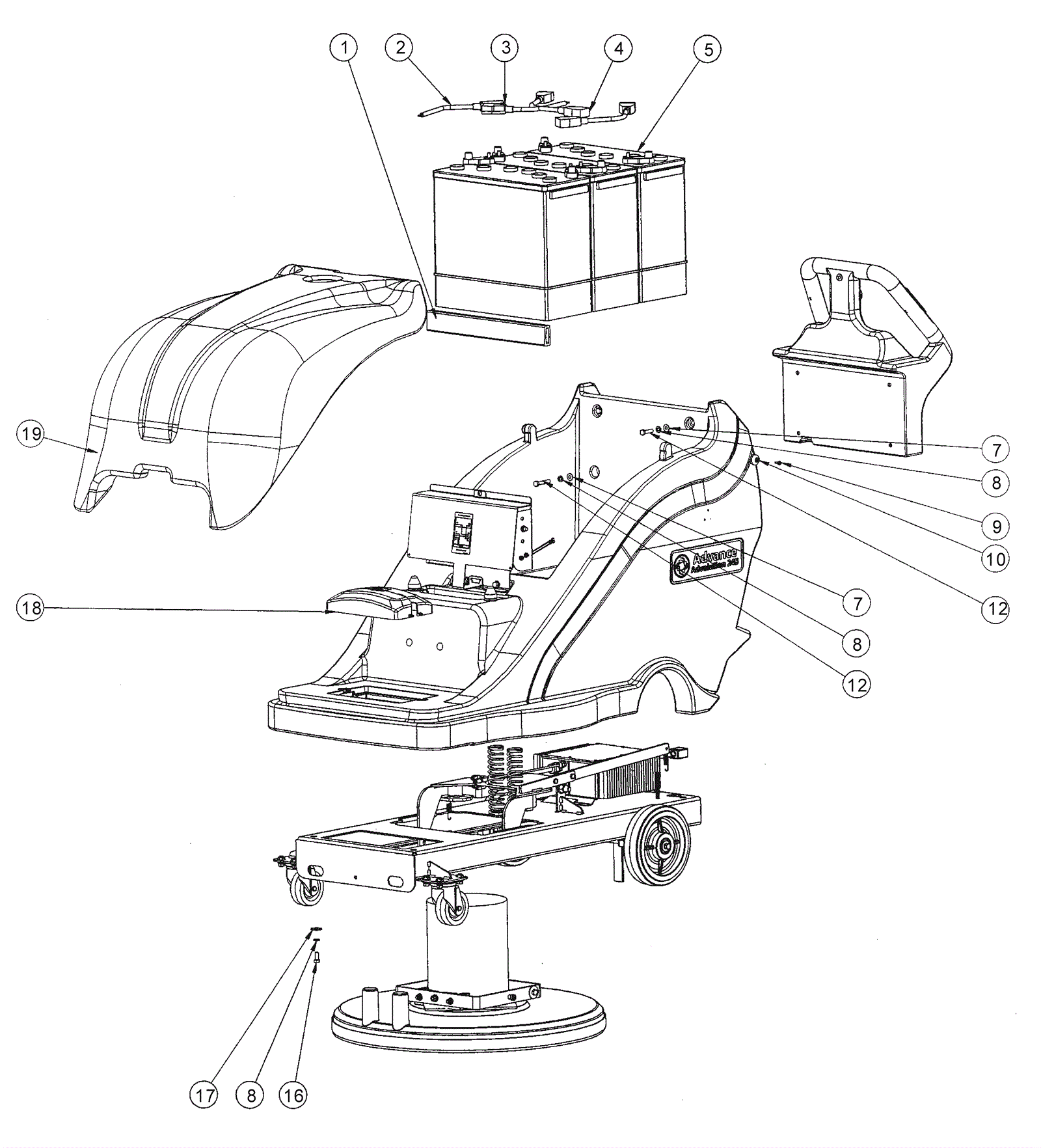

Advolution 24BT Main Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7441 Battery spacer $9.02 1 usually ships 16-41 days
2 272-8515 Negative battery cable $59.87 1 usually ships 16-41 days
3 272-8514 Positive battery cable $55.65 1 usually ships 16-41 days
4 272-8585 Battery jumper cable $44.79 2 usually ships 16-41 days
5 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 3 usually ships 3-26 days
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
8 999-0028 Washer 5/16 split lock plain finish $0.99 8 ships same day
9 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 2 ships same day
10 170-1290 Bumper $11.99 2 usually ships 1-5 days
12 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 4 ships same day
16 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
17 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 4 ships same day
18 272-8219 Dust bag cover $12.83 1 usually ships 16-41 days
19 272-7440 Top cover $850.49 1 usually ships 16-41 days
N/S 172-3066 Vacuum bag (pkg of 10) $20.86 (OEM) ships same day
N/S 991-5146 Vacuum bag (pkg of 10) $8.81 (NON-OEM) ships same day
