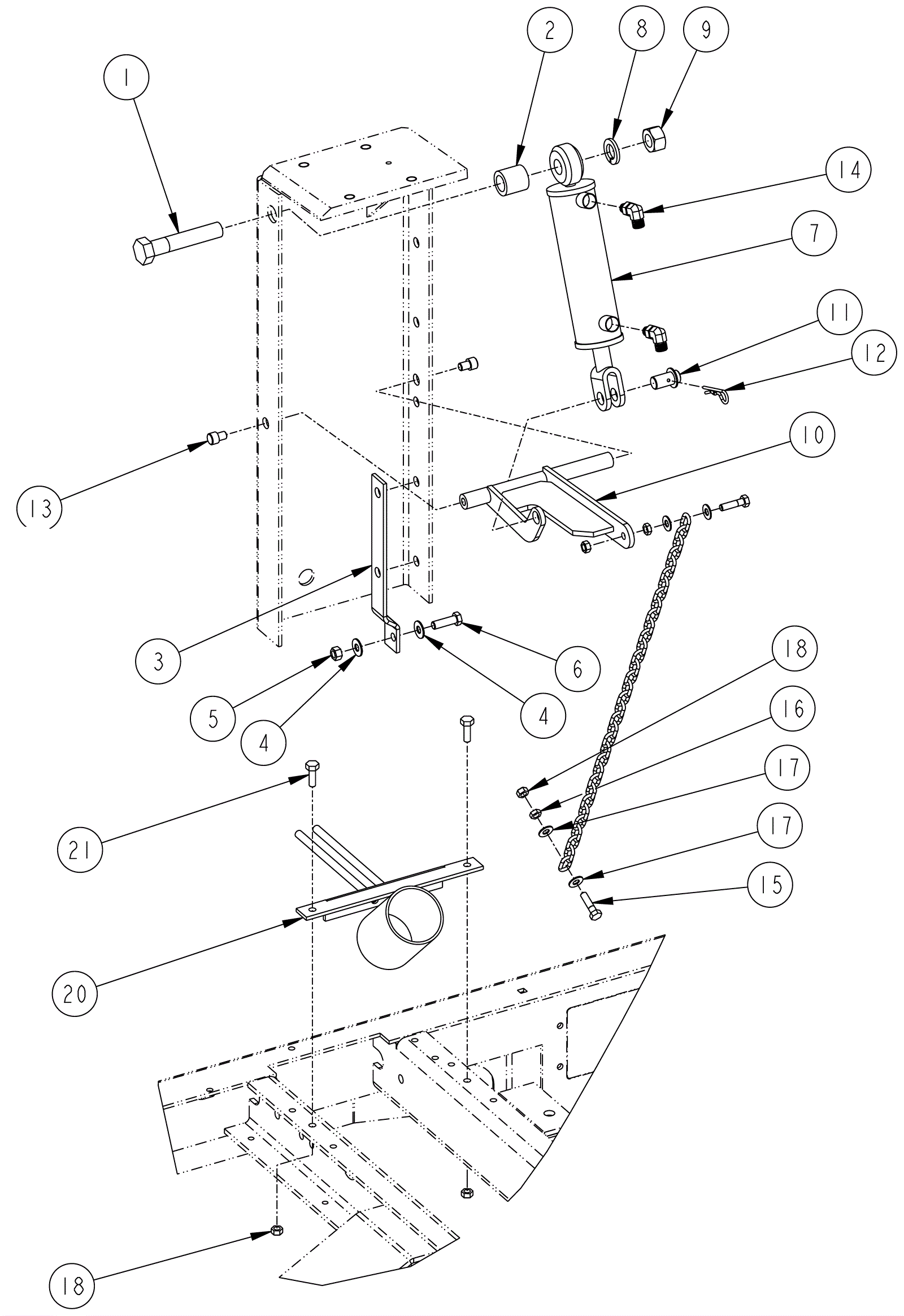

7765 Squeegee Swing Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1935 Bolt 3/4-10 x 4 heavy hex head $5.17 1 usually ships 1-5 days
1 999-1935 Bolt 3/4-10 x 4 heavy hex head $5.17 1 usually ships 1-5 days
2 272-4844 Spacer $31.10 1 usually ships 1-5 days
2 272-4844 Spacer $31.10 1 usually ships 1-5 days
3 272-4845 Bracket $19.98 1 usually ships 1-5 days
3 272-4845 Bracket $19.98 1 usually ships 1-5 days
4 999-0721 Washer 7/8 USS flat zinc plated $2.79 2 ships same day
4 999-0721 Washer 7/8 USS flat zinc plated $2.79 2 ships same day
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
6 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
6 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
7 272-4846 Lift cylinder $597.67 1 usually ships 1-5 days
7 272-4846 Lift cylinder $597.67 1 usually ships 1-5 days
8 272-6892 Helical spring lock washer $12.31 1 usually ships 17-28 days
8 272-6892 Helical spring lock washer $12.31 1 usually ships 17-28 days
9 999-0751 Nut 3/4-10 hex grade 5 zinc plated $0.99 1 ships same day
9 999-0751 Nut 3/4-10 hex grade 5 zinc plated $0.99 1 ships same day
10 272-4847 Squeegee lift arm $176.52 1 usually ships 1-5 days
10 272-4847 Squeegee lift arm $176.52 1 usually ships 1-5 days
11 272-4848 Pin assembly $160.86 1 usually ships 1-5 days
11 272-4848 Pin assembly $160.86 1 usually ships 1-5 days
12 272-4849 Cotter pin $12.31 1 usually ships 17-28 days
12 272-4849 Cotter pin $12.31 1 usually ships 17-28 days
13 272-6894 Screw 3/8-20 x 1/2 $12.31 2 usually ships 1-5 days
13 272-6894 Screw 3/8-20 x 1/2 $12.31 2 usually ships 1-5 days
14 272-4850 90 degree elbow $46.00 2 usually ships 1-5 days
14 272-4850 90 degree elbow $46.00 2 usually ships 1-5 days
15 170-8403 Screw 5/16 - 18 x 1 1/4 grade 8 $12.31 2 usually ships 1-5 days
15 170-8403 Screw 5/16 - 18 x 1 1/4 grade 8 $12.31 2 usually ships 1-5 days
16 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
16 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
19 272-4851 Squeegee lift chain $22.01 1 usually ships 17-28 days
19 272-4851 Squeegee lift chain $22.01 1 usually ships 17-28 days
20 272-4852 Squeegee lift bracket $169.11 1 usually ships 1-5 days
20 272-4852 Squeegee lift bracket $169.11 1 usually ships 1-5 days
21 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
21 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
