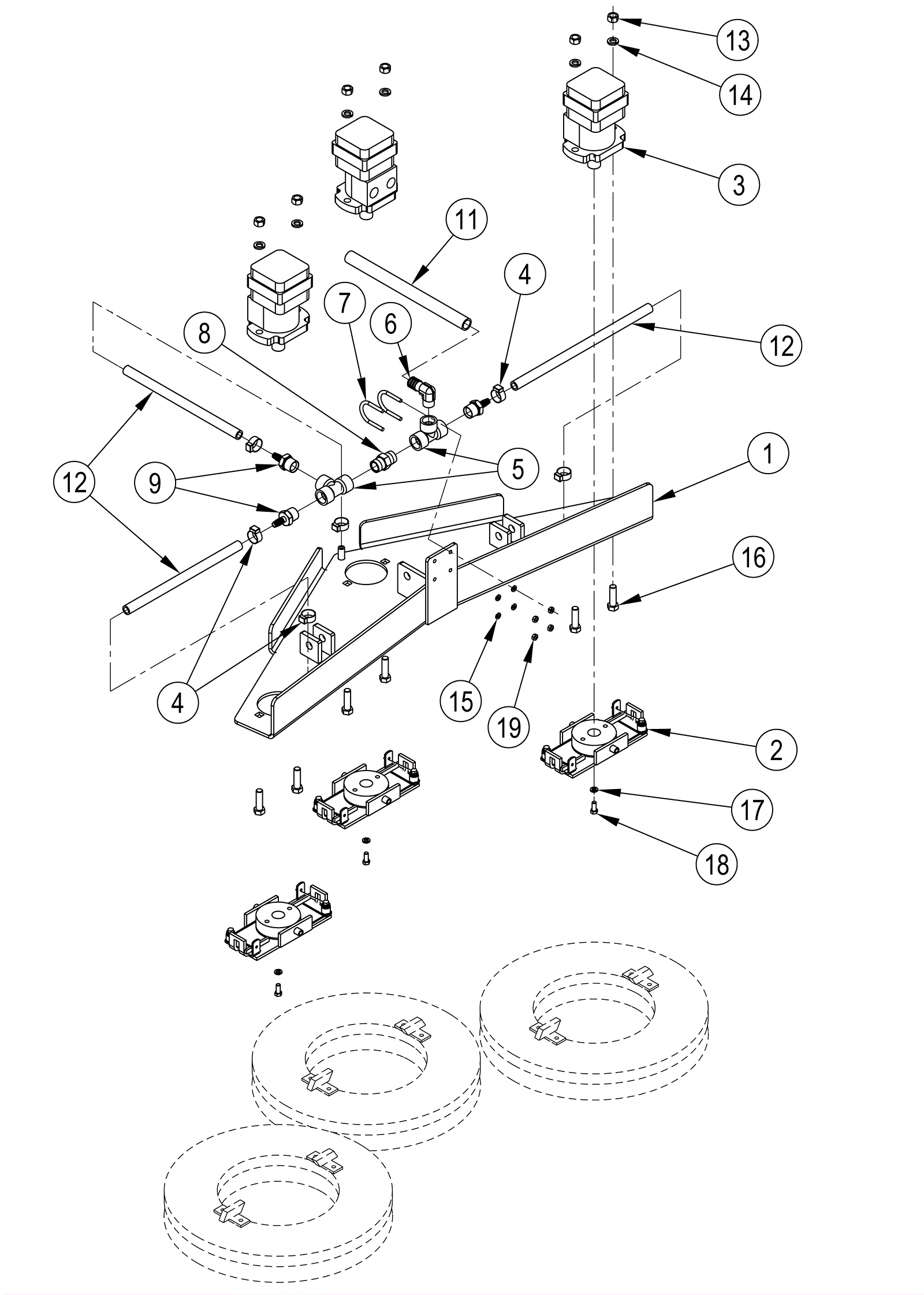

7765 Scrub Deck and Brushes Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-4823 53 inch scrub deck $785.74 1 usually ships 1-5 days
2 272-4824 Brush drive assembly $818.29 3 usually ships 1-5 days
3 170-8939 Brush drive motor $1,507.72 3 usually ships 13-18 days
4 170-7767 Hose clamp $11.35 6 usually ships 1-5 days
5 272-4825 Tee fitting $40.44 2 usually ships 1-5 days
6 170-8346 Straight fitting $16.20 1 usually ships 1-5 days
7 170-7561 Clamp $7.70 2 usually ships 1-5 days
8 272-4826 Nipple $14.41 1 usually ships 1-5 days
9 272-4827 Nipple $12.89 3 usually ships 1-5 days
11 172-9359 Spiral hose $46.16 1 usually ships 1-5 days
12 272-4828 Water feed hose $19.25 3 usually ships 1-5 days
13 170-6871 Nut 1/2-13 $14.18 6 usually ships 1-5 days
14 170-6788 Lock helical spring 1/2 medium washer $12.89 6 usually ships 1-5 days
15 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
16 170-6796 Screw 1/2 - 13 x 1 3/4 hex head $12.89 6 usually ships 1-5 days
17 170-6686 Washer 5/16 lock $11.35 3 usually ships 13-18 days
18 272-4829 Screw 5/16 $12.89 3 usually ships 1-5 days
19 170-6639 Nut 1/4-20 $15.17 4 usually ships 13-18 days
