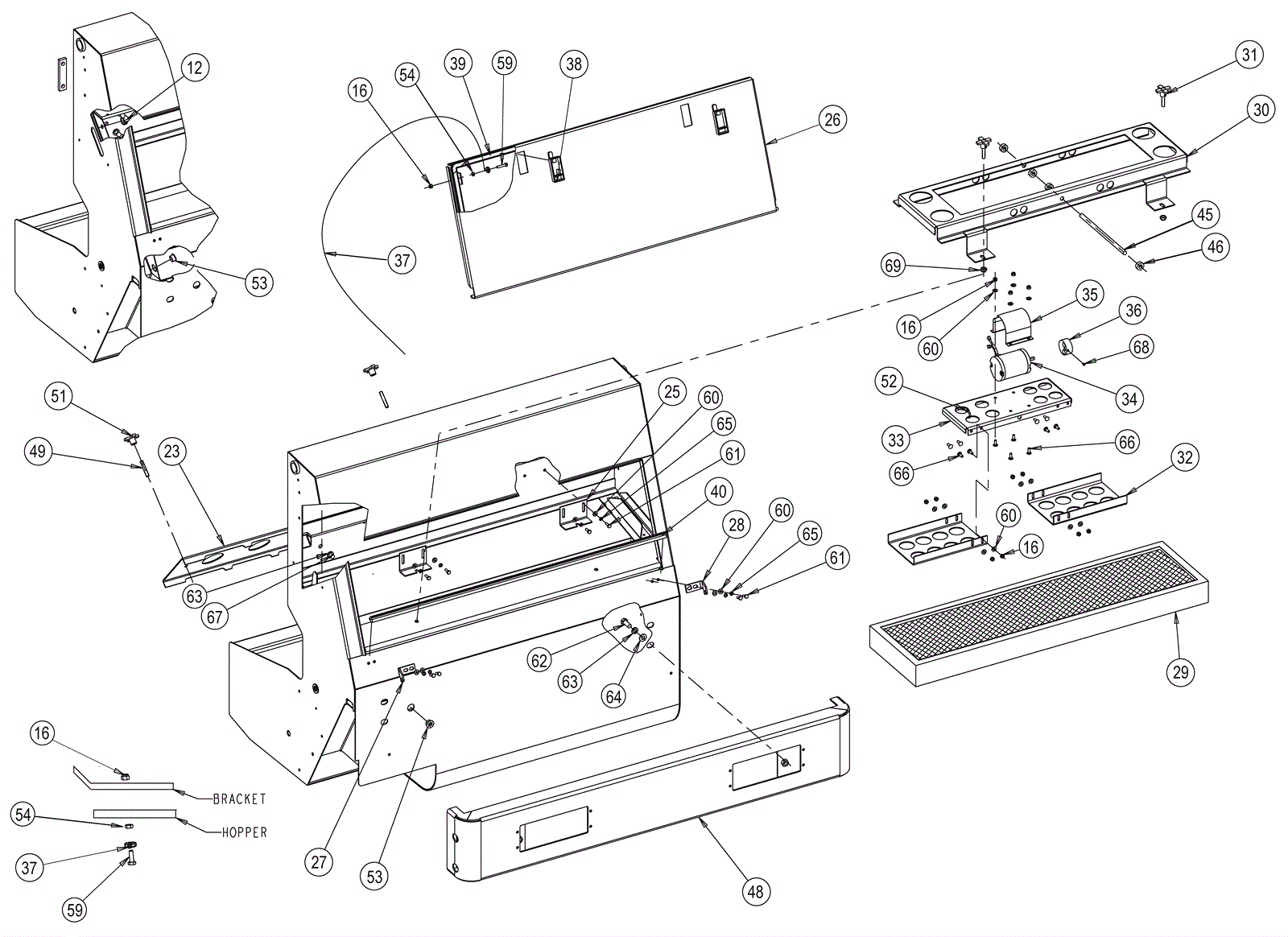

7765 Hopper System - Filter and Impeller Assembly

#PartDescriptionPriceReqNotesAvailability
12 170-6807 Grommet $12.89 1 usually ships 1-5 days
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
23 272-8692 Top air deflector $142.86 1 usually ships 1-5 days
25 272-8693 Rear clamp $17.74 2 usually ships 1-5 days
26 272-8694 Filter access door $416.88 1 usually ships 1-5 days
27 272-8695 Right hand bracket $17.74 1 usually ships 1-5 days
28 272-8696 Left hand bracket $17.74 1 usually ships 1-5 days
29A 272-4726 Filter panel $377.34 1 usually ships 13-18 days
29B 272-8697 High flow poly filter panel $697.88 1 usually ships 1-5 days
30 272-8698 Filter clamp weldment $353.25 1 usually ships 1-5 days
31 272-8699 Knob assembly $67.56 2 usually ships 1-5 days
32 272-4710 Shaker arm $104.81 1 usually ships 1-5 days
33 272-4711 Shaker motor plate $69.07 1 usually ships 1-5 days
34 272-4712 Shaker motor assembly $657.58 1 usually ships 1-5 days
35 272-4713 Shaker motor filter cover $28.94 1 usually ships 1-5 days
36 272-4714 Filter shaker weight $53.61 1 usually ships 1-5 days
37 272-4715 Cable $115.74 1 usually ships 1-5 days
38 272-4716 Latch $256.89 2 usually ships 1-5 days
39 272-4717 Hopper access door gasket $93.17 1 usually ships 1-5 days
40 272-4718 Hopper access door gasket $59.84 1 usually ships 1-5 days
45 272-4719 Shaker pivot pin $27.26 1 usually ships 1-5 days
46 170-7567 Collar screw set $14.41 4 usually ships 1-5 days
48 272-4720 Bumper $705.76 1 usually ships 1-5 days
49 272-4721 Stud $19.25 2 usually ships 1-5 days
51 170-0171 Knob $34.00 2 ships same day
52 170-6744 Wire tie $12.50 1 usually ships 1-5 days
53 272-4722 Bushing $12.89 2 usually ships 1-5 days
54 170-6639 Nut 1/4-20 $15.17 2 usually ships 13-18 days
59 272-6906 Screw 1/4-20 x 1 1/4 $15.17 2 usually ships 1-5 days
60 999-0016 Washer 1/4 flat plain finish $0.99 20 ships same day
61 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 8 ships same day
62 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
63 170-6788 Lock helical spring 1/2 medium washer $12.89 4 usually ships 1-5 days
64 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
65 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
66 272-8684 Carriage bolt $14.18 12 usually ships 1-5 days
67 999-0281 Bolt 1/2-13 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
69 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
