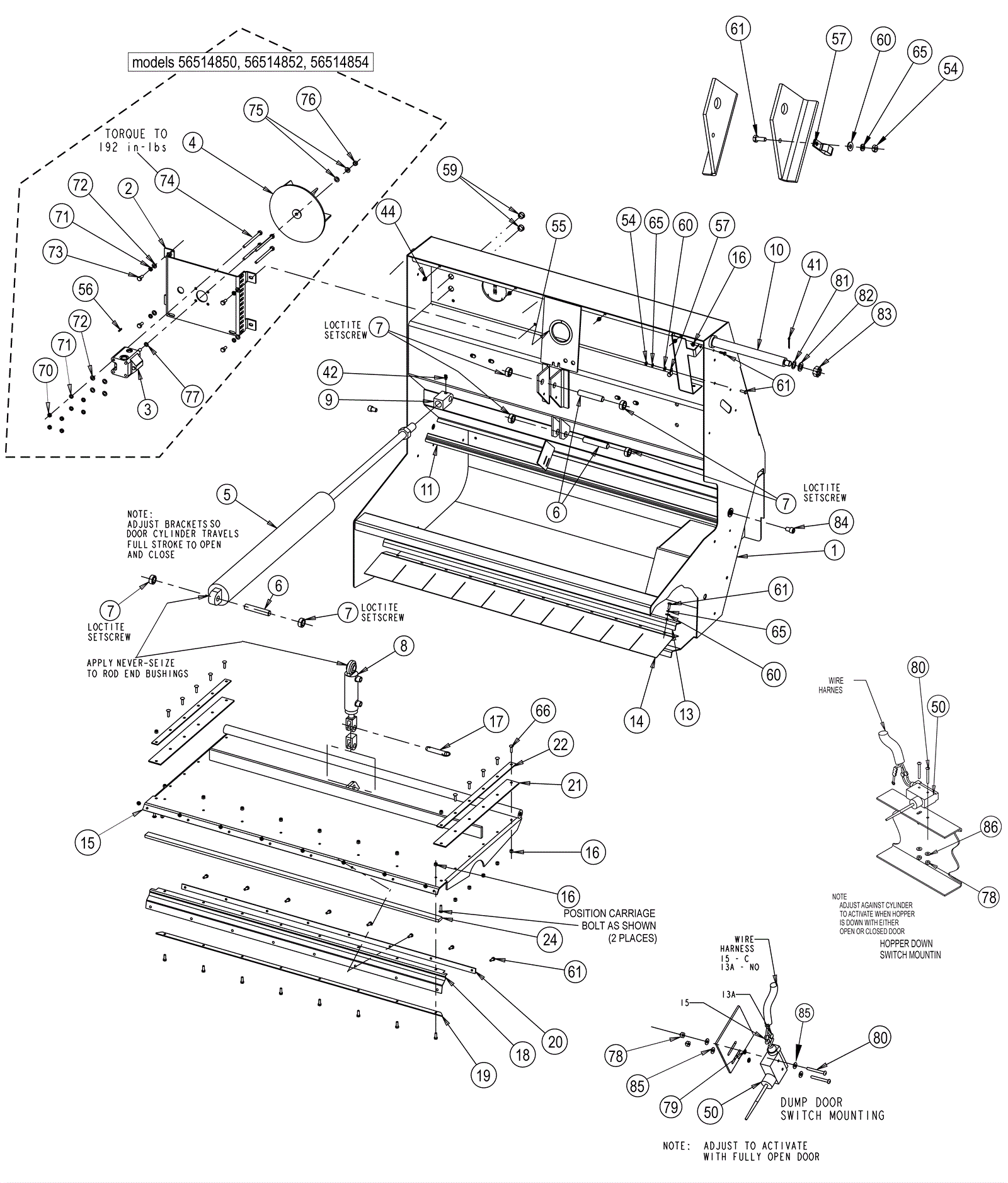

7765 Hopper System - Variable Dump Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6988 Hopper $4,287.35 1 usually ships 1-5 days
2 272-6989 Impeller mounting and guard bracket $83.04 1 usually ships 1-5 days
3 272-6990 Vacuum motor $1,470.40 1 usually ships 1-5 days
4 272-6991 Impeller $206.91 1 usually ships 1-5 days
5 272-6992 Cylinder $2,220.72 1 usually ships 1-5 days
6 272-6993 Pin $24.60 3 usually ships 1-5 days
7 272-6946 Set screw collar $18.38 6 usually ships 1-5 days
8 272-6994 Cylinder $781.56 1 usually ships 1-5 days
9 272-6995 Rod end $169.11 1 usually ships 1-5 days
10 272-6996 Rod $321.78 1 usually ships 1-5 days
11 272-6997 Dump door gasket $81.60 2 usually ships 1-5 days
13 272-6998 Hopper flap clamp $69.01 1 usually ships 1-5 days
14 272-6999 Hopper flap $152.05 1 usually ships 1-5 days
15 272-8673 Dump door hopper $857.98 1 usually ships 1-5 days
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 31 ships same day
17 272-8674 Pin $46.00 1 usually ships 17-28 days
18 272-8675 Outer door seal $116.47 1 usually ships 1-5 days
19 272-8676 Inner seal strap $64.53 1 usually ships 1-5 days
20 272-8677 Outer seal strap $38.62 1 usually ships 1-5 days
21 272-8678 Side door seal $81.60 2 usually ships 1-5 days
22 272-8680 Cotter pin $13.17 2 usually ships 1-5 days
23 272-6913 Lubrication fitting $12.31 1 usually ships 1-5 days
41 272-8680 Cotter pin $13.17 2 usually ships 1-5 days
42 272-6913 Lubrication fitting $12.31 1 usually ships 1-5 days
44 272-6921 Straight lubrication fitting $13.76 4 usually ships 1-5 days
50 170-7699 Terminal $206.91 2 usually ships 17-28 days
54 170-6639 Nut 1/4-20 $13.17 6 usually ships 1-5 days
55 272-8681 Hopper edging $18.38 1 usually ships 1-5 days
56 272-8682 Key $12.31 1 usually ships 1-5 days
57 272-3775 Double clamp $13.76 2 usually ships 1-5 days
59 272-8683 Hole plug $12.31 2 usually ships 1-5 days
60 999-0016 Washer 1/4 flat plain finish $0.99 17 ships same day
61 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 33 ships same day
65 999-0060 Washer 1/4 split lock plain finish $0.99 16 ships same day
66 272-8684 Carriage bolt $12.31 12 usually ships 1-5 days
70 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
71 170-6686 Washer 5/16 lock $10.85 8 usually ships 17-28 days
72 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
73 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
74 272-8685 Screw $12.31 4 usually ships 1-5 days
75 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 2 usually ships 17-28 days
76 272-8686 Lock nut $10.85 1 usually ships 17-28 days
77 272-8687 Spacer $12.31 1 usually ships 1-5 days
78 170-7701 Nut 38-32 fiber insert, steel $12.31 4 usually ships 1-5 days
79 372-2617 Washer 3/16 external star $6.22 2 usually ships 17-28 days
80 170-7702 Screw 8 - 32 x 1.5 RHM $13.17 4 usually ships 1-5 days
81 272-8689 Flat washer $12.31 2 usually ships 1-5 days
82 170-7728 Washer 1 1/2 x 3/4 x 1/8 flat $12.31 2 usually ships 1-5 days
83 272-8690 Nut $5.39 2 usually ships 1-5 days
84 272-8691 Screw $12.31 2 usually ships 1-5 days
85 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
86 170-7582 Washer 7/16 x 3/16 x 1/32 flat $13.76 2 usually ships 1-5 days
