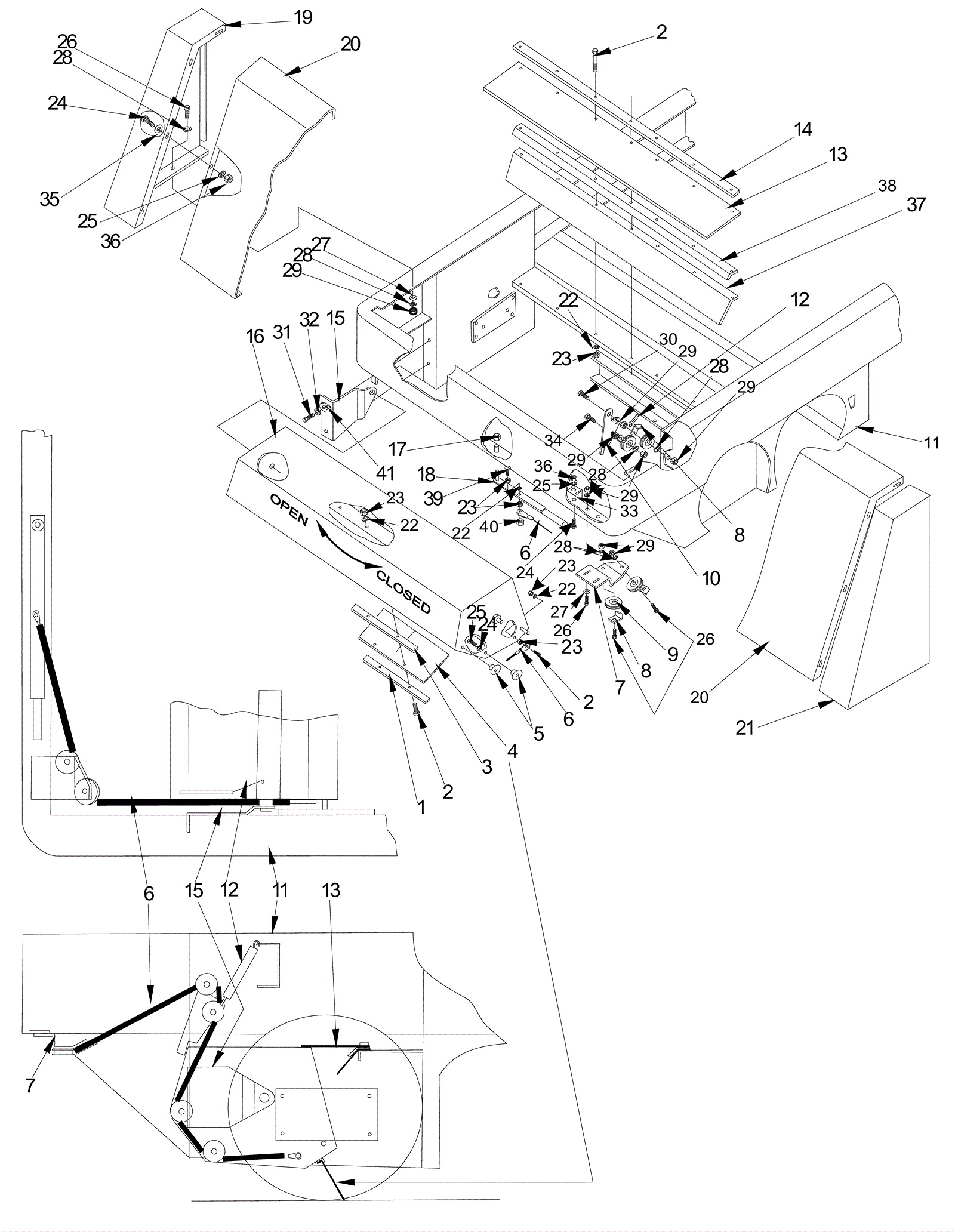

7765 Hopper System - Manual Dump Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6964 Hopper flap strap $47.30 4 usually ships 1-5 days
2 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 15 ships same day
3 272-6965 Hopper flap clamp $70.47 4 usually ships 1-5 days
4 272-6966 Hopper flap $64.53 4 usually ships 1-5 days
5 272-6967 Cable guide (OBSOLETE) $107.36 2 usually ships 17-28 days
6 272-6968 Hopper lift cable $160.86 1 usually ships 1-5 days
7 272-6969 Pulley mounting bracket $103.00 1 usually ships 1-5 days
8 272-6970 Cable retainer clip $57.16 4 usually ships 1-5 days
9 272-6971 Cable pulley $183.90 4 usually ships 1-5 days
10 272-6972 Hopper latch $95.66 1 usually ships 1-5 days
11 272-6888 Main frame $8,728.06 1 usually ships 1-5 days
12 170-8404 Spring (OBSOLETE) $59.29 1 usually ships 1-5 days
13 272-6973 Baffle Flap $367.77 1 usually ships 1-5 days
14 272-6974 Baffle clamp $65.87 1 usually ships 1-5 days
15 272-6975 Hopper pivot plate $192.01 2 usually ships 1-5 days
16 272-6976 Hopper $1,815.00 1 usually ships 1-5 days
17 170-7567 Collar screw set $13.76 1 usually ships 1-5 days
18 272-6977 Hopper dump handle $203.30 1 usually ships 1-5 days
19 272-6978 Right hand cover $544.29 1 usually ships 1-5 days
20 272-6979 Center cover $536.05 1 usually ships 1-5 days
21 272-6980 Left hand cover $574.67 1 usually ships 1-5 days
22 999-0060 Washer 1/4 split lock plain finish $0.99 17 ships same day
23 170-6639 Nut 1/4-20 $13.17 19 usually ships 1-5 days
24 181-0983 Screw 5/16-18 x 7/8 hex head $12.31 11 usually ships 1-5 days
25 170-6686 Washer 5/16 lock $10.85 11 usually ships 17-28 days
26 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
27 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 10 usually ships 17-28 days
28 170-6752 Washer 3/8 lock split plated $12.31 8 usually ships 1-5 days
29 999-0635 Nut 3/8-16 hex stainless steel $0.99 14 ships same day
30 272-6981 Screw 3/8-16 x 2 3/4 $12.31 1 usually ships 1-5 days
31 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 4 ships same day
32 170-6788 Lock helical spring 1/2 medium washer $12.31 4 usually ships 1-5 days
33 272-6982 Handle latch $117.20 1 ships same day
34 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
35 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
36 999-0069 Nut 5/16-18 hex $0.99 9 ships same day
37 272-6984 Lower baffle flap $199.52 1 usually ships 1-5 days
38 272-6985 Lower baffle clamp $67.42 1 usually ships 1-5 days
39 272-6986 Bolt $12.31 1 usually ships 1-5 days
40 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
41 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
